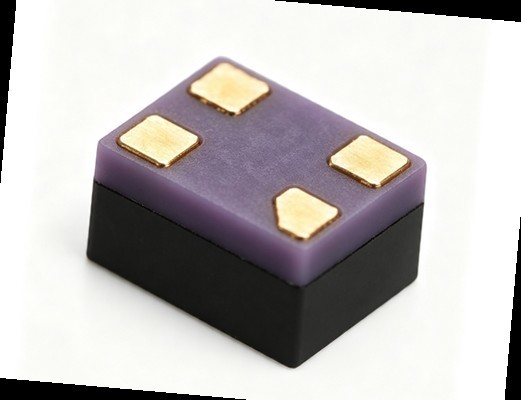

JY-TA0692A SAW Filter Center Frequency 433 MHz Passband Fc (BW 3dB) MHz RoHS Compliant Surface Mount
JY-TA0692A SAW Filter Center Frequency 433 MHz Passband Fc (BW 3dB) MHz RoHS Compliant Surface Mount
Specifications
Place of Origin :
Shenzhen, Guangdong, China
Brand Name :
JYRF
Insertion Loss :
1.4 dB typ / 2.8 dB max
Passband :
Fc (BW 3dB) MHz
Input Power Level :
10 dBm
Center Frequency :
433 MHz
Model Number :
JY-TA0692A
Product Type :
SAW Filter
DC Voltage :
3 V
Certification :
RoHS Compliant
Application :
ISM 433 MHz
Operating Temperature :
-30 to +72 °C
Model :
JY-TA0692A
Description

Electrical Specifications

Parameter Frequency (MHz) Min. Typ. Max. Unit
Center Frequency (Fc) - - 433 - MHz
Insertion Loss Fc (BW 3dB) - 1.4 2.8 dB
Amplitude Ripple Fc (BW 3dB) - - 2.0 dB
VSWR Fc (BW 3dB) - - 2.2 -
Input Power Level - - - 10 dBm

Features

  • Low insertion loss
  • High out-of-band attenuation
  • Small surface-mount ceramic package
  • RoHS compliant

Applications

  • ISM 433 MHz
  • RF front-end filtering
  • Receiver / transmitter filtering

Maximum Ratings

Input Power Level: 10 dBm

DC Voltage: 3 V

Operating Temperature: -30 to +72 °C
