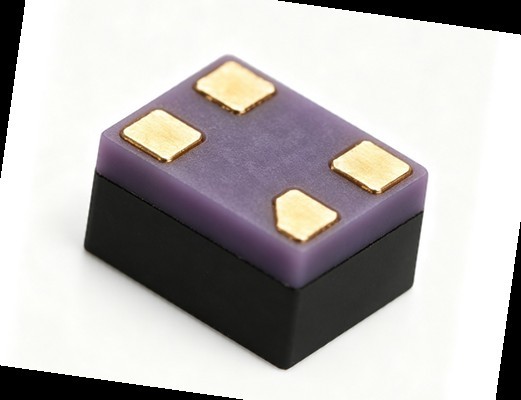

JY-TA0690A SAW Filter Center Frequency 1030 MHz Passband 1015~1045 MHz RoHS Compliant Surface Mount
JY-TA0690A SAW Filter Center Frequency 1030 MHz Passband 1015~1045 MHz RoHS Compliant Surface Mount
Specifications
Application :
Aviation TCAS (1030 MHz)
Model :
JY-TA0690A
Input Power Level :
20 dBm
Product Type :
SAW Filter
Center Frequency :
1030 MHz
Passband :
1015~1045 MHz
Insertion Loss :
2.4 dB typ / 3.0 dB max
Certification :
RoHS Compliant
Brand Name :
JYRF
Model Number :
JY-TA0690A
Place of Origin :
Shenzhen, Guangdong, China
DC Voltage :
3 V
Description

Electrical Specifications

Parameter Frequency (MHz) Min. Typ. Max. Unit
Center Frequency (Fc) - - 1030 - MHz
Insertion Loss 1015~1045 - 2.4 3.0 dB
Amplitude Ripple 1015~1045 - - 2.0 dB
VSWR 1015~1045 - - 2.2 -
Input Power Level - - - 20 dBm

Features

  • Low insertion loss
  • High out-of-band attenuation
  • Small surface-mount ceramic package
  • RoHS compliant

Applications

  • Aviation TCAS (1030 MHz)
  • RF front-end filtering
  • Receiver / transmitter filtering

Maximum Ratings

Input Power Level: 20 dBm

DC Voltage: 3 V
