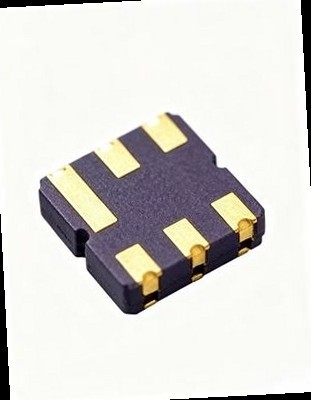

JY-TA0967A SAW Filter Center Frequency 1561 MHz Passband 1550.5~1571.5 MHz RoHS Compliant Surface Mount
JY-TA0967A SAW Filter Center Frequency 1561 MHz Passband 1550.5~1571.5 MHz RoHS Compliant Surface Mount
Specifications
Center Frequency :
1561 MHz
Passband :
1550.5~1571.5 MHz
Brand Name :
JYRF
Application :
GPS L1 / Compass
Place of Origin :
Shenzhen, Guangdong, China
Input Power Level :
10 dBm
DC Voltage :
3 V
Certification :
RoHS Compliant
Product Type :
SAW Filter
Model Number :
JY-TA0967A
Model :
JY-TA0967A
Insertion Loss :
3.3 dB typ / 4 dB max
Description

Electrical Specifications

Parameter Frequency (MHz) Min. Typ. Max. Unit
Center Frequency (Fc) - - 1561 - MHz
Insertion Loss 1550.5~1571.5 - 3.3 4 dB
Amplitude Ripple 1550.5~1571.5 - - 2.0 dB
VSWR 1550.5~1571.5 - - 2.2 -
Input Power Level - - - 10 dBm

Features

  • Low insertion loss
  • High out-of-band attenuation
  • Small surface-mount ceramic package
  • RoHS compliant

Applications

  • GPS L1 / Compass
  • RF front-end filtering
  • Receiver / transmitter filtering

Maximum Ratings

Input Power Level: 10 dBm

DC Voltage: 3 V
