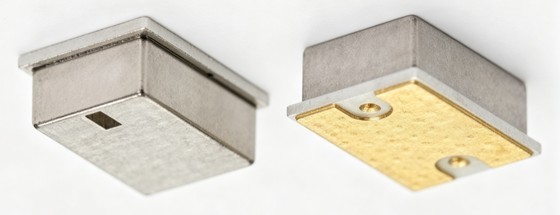

JY-BFHK-7551+ LTCC Bandpass Filter 6800-8400 MHz 50 Ohm Surface Mount RoHS Compliant
JY-BFHK-7551+ LTCC Bandpass Filter 6800-8400 MHz 50 Ohm Surface Mount RoHS Compliant
Specifications
Model Number :
JY-BFHK-7551+
Certification :
RoHS Compliant
Brand Name :
JYRF
Technology :
LTCC
Place of Origin :
China
Passband :
6800-8400 MHz
Stopband Rejection :
85 dB @ 100-4000 MHz; 75 dB @ 10600-19000 MHz
Impedance :
50 Ohm
Product Type :
LTCC Bandpass Filter
Interface :
SMT
Description

JY-BFHK-7551+ LTCC Bandpass Filter

Product Overview

JY-BFHK-7551+ is a LTCC Bandpass Filter with 6800-8400 MHz passband, 50 ohm impedance in a SMT package. It offers low insertion loss and high stopband rejection, making it ideal for RF front-end and communication applications.

Electrical Specifications

ParameterSpecificationTest Condition
Passband6800-8400 MHz50 Ohm system
Stopband Rejection85 dB @ 100-4000 MHzF3
Stopband Rejection75 dB @ 10600-19000 MHzF4
Impedance50 Ohm-
TechnologyLTCC-
InterfaceSMT-

Features

  • Low insertion loss across the passband
  • High rejection at both lower and upper stopbands
  • Compact SMD package for space-constrained PCB design
  • 50 ohm impedance, matched for RF system design
  • RoHS compliant and suitable for lead-free soldering

Applications

  • RF transceiver front-ends
  • Communication systems
  • Signal conditioning and test equipment
  • Band selection and channel filtering

Packaging

Products are supplied in tape and reel packaging, ready for automated SMT assembly.
