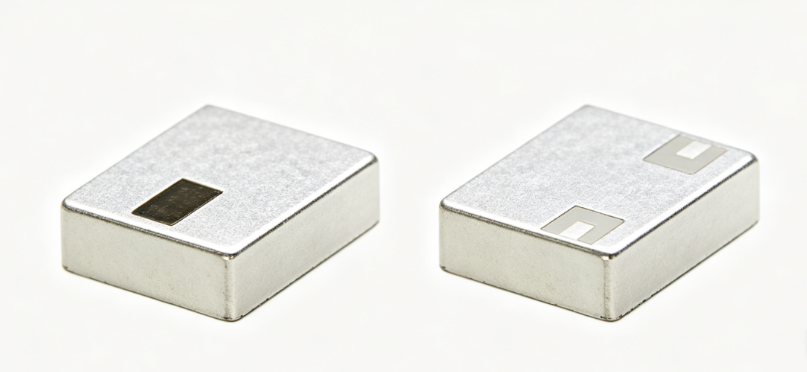

JY-LFTC-1350+ LTCC Low Pass Filter DC-1350 MHz 50 Ohm Surface Mount RoHS Compliant
JY-LFTC-1350+ LTCC Low Pass Filter DC-1350 MHz 50 Ohm Surface Mount RoHS Compliant
Specifications
Product Type :
LTCC Low Pass Filter
Brand Name :
JYRF
Impedance :
50 Ohm
Interface :
SMT
Place of Origin :
China
Certification :
RoHS Compliant
Passband :
DC-1350 MHz
Stopband Rejection :
20 dB @ 2100 MHz; 30 dB @ 2700-4500 MHz
Technology :
LTCC
Model Number :
JY-LFTC-1350+
Description

JY-LFTC-1350+ LTCC Low Pass Filter

Product Overview

JY-LFTC-1350+ is a LTCC Low Pass Filter with DC-1350 MHz passband, 50 ohm impedance in a SMT package. It offers low insertion loss and high stopband rejection, making it ideal for RF front-end and communication applications.

Electrical Specifications

ParameterSpecificationTest Condition
PassbandDC-1350 MHz50 Ohm system
Stopband Rejection20 dB @ 2100 MHzF3
Stopband Rejection30 dB @ 2700-4500 MHzF4
Impedance50 Ohm-
TechnologyLTCC-
InterfaceSMT-

Features

  • Low insertion loss across the DC to cut-off passband
  • High rejection in the stopband for clean signal filtering
  • Compact SMD package for space-constrained PCB design
  • 50 ohm impedance, matched for RF system design
  • RoHS compliant and suitable for lead-free soldering

Applications

  • RF transceiver front-ends
  • Communication systems
  • Signal conditioning and test equipment
  • Wireless module interference suppression

Packaging

Products are supplied in tape and reel packaging, ready for automated SMT assembly.
