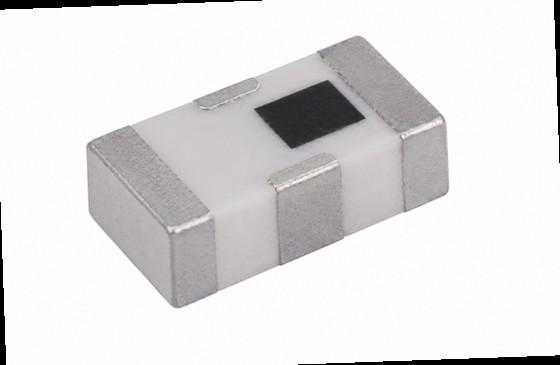

JY-LFCN-530+ LTCC Low Pass Filter DC-530 MHz Cutoff Frequency 700 MHz Surface Mount
JY-LFCN-530+ LTCC Low Pass Filter DC-530 MHz Cutoff Frequency 700 MHz Surface Mount
Specifications
Certification :
RoHS Compliant
Model :
JY-LFCN-530+
Pass Band :
DC-530 MHz
Operating Temperature :
-55°C to 100°C
Impedance :
50 Ohm
Package Size :
3.20 x 1.60 mm (1206 footprint)
Pin Connections :
RF IN 1, RF OUT 3, GROUND 2,4
Storage Temperature :
-55°C to 100°C
VSWR :
1.2:1 Max.
Place of Origin :
Shenzhen, Guangdong, China
Insertion Loss :
1.0 dB Max.
Stop Band Rejection :
820 MHz: 20 dB; 945-3000 MHz: 40 dB; 6000 MHz: 20 dB
Brand Name :
JYRF
Model Number :
JY-LFCN-530+
Product Type :
LTCC Low Pass Filter
RF Power Input :
10 W
Cutoff Frequency :
700 MHz
Description

Electrical Specifications

Parameter Frequency (MHz) Typ. Max. Unit
Cutoff Frequency - 700 - MHz
Pass Band DC-530 MHz - - -
Insertion Loss DC-530 MHz 0.8 1.0 dB
VSWR DC-530 MHz - 1.2 :1
Stop Band Rejection 820 MHz: 20 dB; 945-3000 MHz: 40 dB; 6000 MHz: 20 dB - - dB
Impedance - 50 - Ω
RF Power Input - 10 W - -
Operating Temperature - - -55°C to 100°C -

Features

  • Excellent power handling
  • Small size
  • 7 sections
  • Temperature stable
  • LTCC construction , and has good moisture resistance, corrosion resistance, high reliability.

Applications

  • Harmonic rejection
  • VHF/UHF transmitters/receivers
  • Base Station of Mobile Communication, lab use.

Maximum Ratings

Operating Temperature: -55°C to 100°C

Storage Temperature: -55°C to 100°C

RF Power Input: 10 W max. at 25°C

Mechanical Dimensions

Package Size: 3.20 x 1.60 mm (1206 footprint) (Unit: mm)

Pin Connections

RF IN 1, RF OUT 3, GROUND 2,4

DC de-coupling capacitors are required in applications where DC voltage and/or current is present at either input or output ports.
