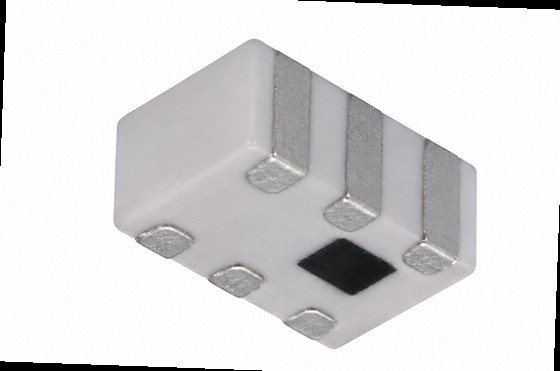

JY-HFCG-1760+ LTCC High Pass Filter 1800-8000 MHz 50 Ohm Surface Mount RoHS Compliant
JY-HFCG-1760+ LTCC High Pass Filter 1800-8000 MHz 50 Ohm Surface Mount RoHS Compliant
Specifications
Brand Name :
JYRF
Passband :
1800-8000 MHz
Interface :
SMT
Stopband Rejection :
38 dB @ DC-800 MHz; 36 dB @ 800-1200 MHz
Impedance :
50 Ohm
Place of Origin :
China
Certification :
RoHS Compliant
Model Number :
JY-HFCG-1760+
Technology :
LTCC
Product Type :
LTCC High Pass Filter
Description

JY-HFCG-1760+ LTCC High Pass Filter

Product Overview

JY-HFCG-1760+ is a LTCC High Pass Filter with 1800-8000 MHz passband, 50 ohm impedance in a SMT package. It offers low insertion loss and high stopband rejection, making it ideal for RF front-end and communication applications.

Electrical Specifications

ParameterSpecificationTest Condition
Passband1800-8000 MHz50 Ohm system
Stopband Rejection38 dB @ DC-800 MHzF3
Stopband Rejection36 dB @ 800-1200 MHzF4
Impedance50 Ohm-
TechnologyLTCC-
InterfaceSMT-

Features

  • Low insertion loss in the passband above the cut-off frequency
  • High attenuation below the cut-off for low frequency rejection
  • Compact SMD package for space-constrained PCB design
  • 50 ohm impedance, matched for RF system design
  • RoHS compliant and suitable for lead-free soldering

Applications

  • RF transceiver front-ends
  • Communication systems
  • Signal conditioning and test equipment
  • IF and RF signal processing

Packaging

Products are supplied in tape and reel packaging, ready for automated SMT assembly.
