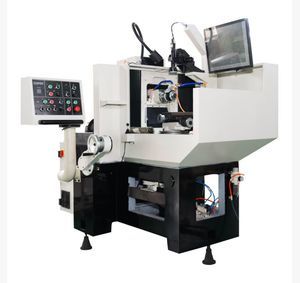

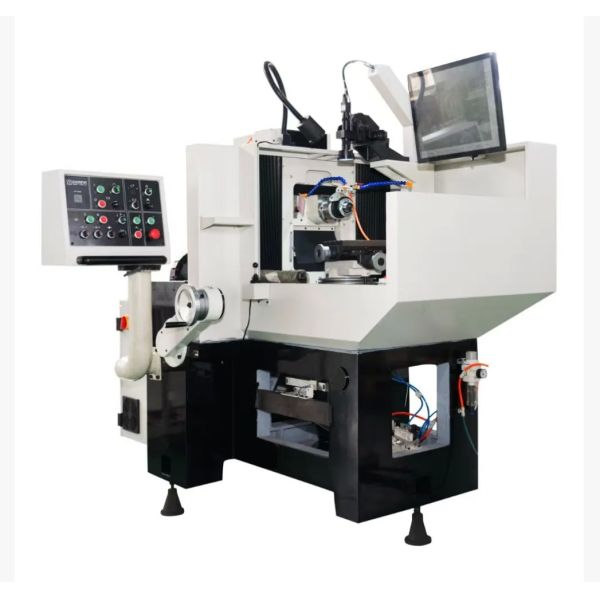

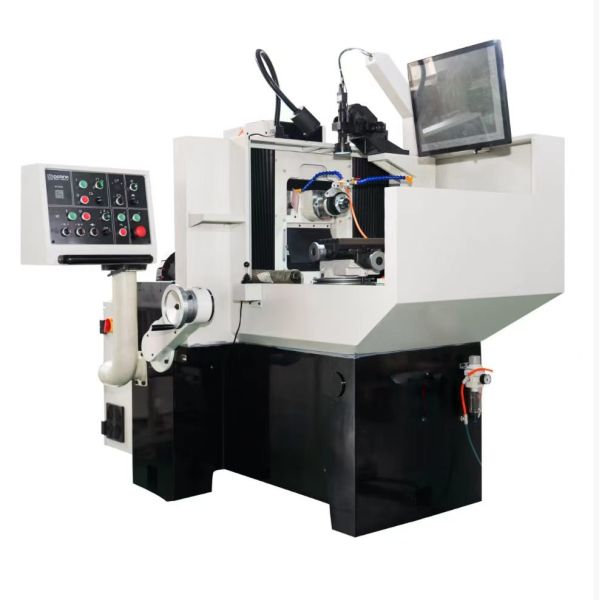

Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Bt-150HS PCD&CBN Tool Grinder
Specifications
Condition :
New
Controlling Mode :
Artificial
HS Code :
8460390000
Origin :
CHINA
Delivery Time :
30 DAYS
Supply Ability :
50 SETS PER YEAR
Model NO. :
BT-150HS
Production Capacity :
50 Sets Per year
Transport Package :
Wooden Case
Trademark :
DEMINA
Packaging Details :
WOODEN CASE
Specification :
1890mm*1650mm*1980mm
Processing Object :
CNC Tools
Automatic Grade :
Manual
Payment Terms :
T/T
MOQ :
1 Piece
Abrasives :
Grinding Wheel
Precision :
Precision
Description

Description

BT-150HS is an economical tool grinder designed for the manufacturing and regrinding of superhard cutting tools made from PCD, PCBN, and CVD, as well as carbide and high-speed steel inserts. Its unique grinding head lifting device makes it easier to grind angles and radii on non-standard tools such as welded turning tools, reamers, boring tools, grooving tools, and many other types of tools.


Main Parameters

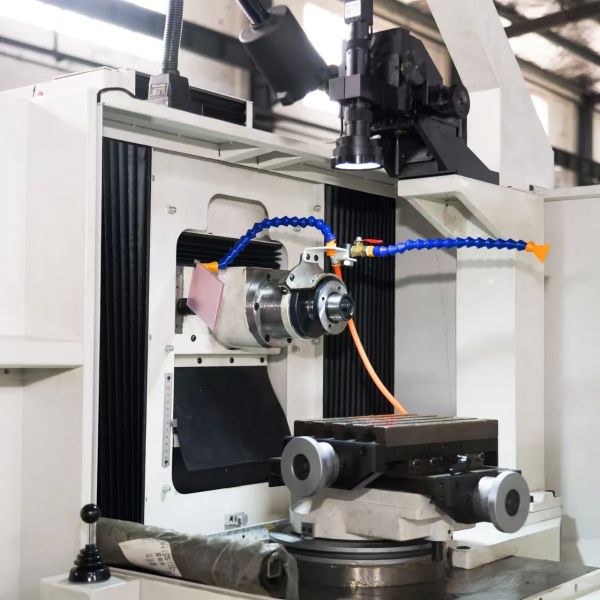

Spindle and Grinding Wheel

Diameter of Grinding wheel

150mm

Grinding wheel center hole

40mm

Power of grinding spindle

3kW

Adjustable range of grinding speed (RPM)

500 ~ 4000RPM

Servo motor swing, adjustable oscillation frequency

0 ~ 60times/min

Grinding wheel movement range (X)

300mm

Changeable Clearance Angle

-5° ~ 25°

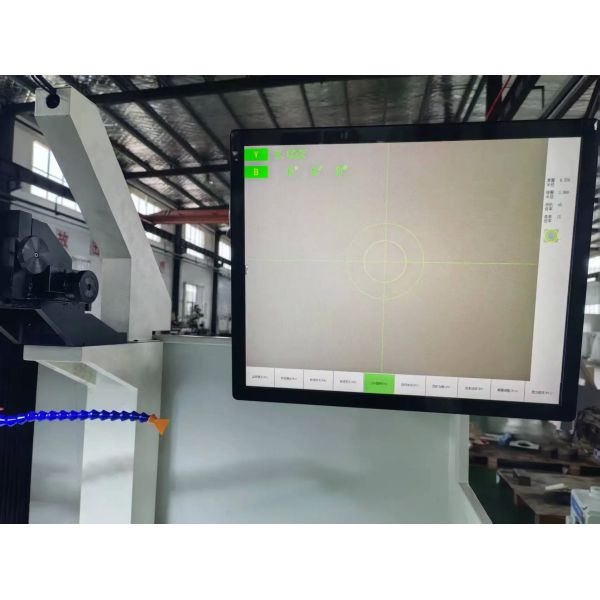

CCD Monitoring System

Max Magnification of Optical Microscope

0.7 ~ 4.5times

Magnification of CCD Measuring System, roughly

About 70times

Dimensions and weight

Coolant Tank with Filter Paper

About 70L

Overall Dimensions L x W x H

1890 x 1650 x 1980mm

Overall weight with Coolant Tank

2000Kg

Power Supply

Electrical Supply

12kW

Voltage Requested

380V/Three phase/50Hz
