Specifications
Model NO. :
BT-150D
Type :
Tool Grinding Machine
Processing Object :
Curve
Abrasives :
Grinding Wheel
Controlling Mode :
CNC
Automatic Grade :
Automatic
Cylindrical Grinder Type :
Universal Cylindrical Grinder
Certification :
CE, ISO 9001
Condition :
New
Transport Package :
Wooden Case
Specification :
1890mm*1650mm*1980mm
Trademark :
DEMINA
Origin :
China
HS Code :
8460390000
Production Capacity :
50 Sets Peryear
MOQ :
1 Piece
Price :
US $60,000 / Piece
Description
Product Description
BT-150D pcd tool grinder manufacturing is made of grinding wheel oscillation axis(X-axis), grinding wheel tilt angle axis (B-axis), rotation axis in the horizontal plane(C-axis), working piece feeding axis(Y-axis). working piece feeding axis(Y-axis) is equipped with raster rule, and the closed loop position feedback is used to ensure the precision of micron level grinding. The tool grinder is reliable in performance and it is suitable for massive production of carbide inserts, PCD and CBN inserts. Once centering is finished, grinding will be done automatically, realizing constant pressure grinding and flexible feed. The even consumption of grinding wheel can be measured and compensated by the system, so production with long cycle time can be achieved.
Detailed Photos

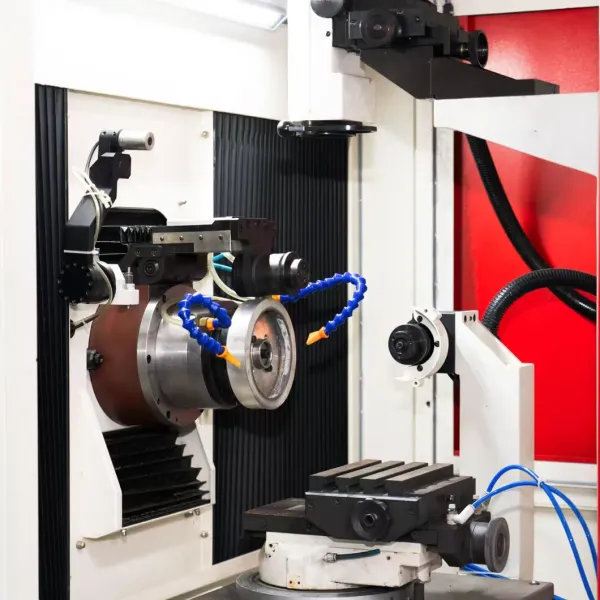

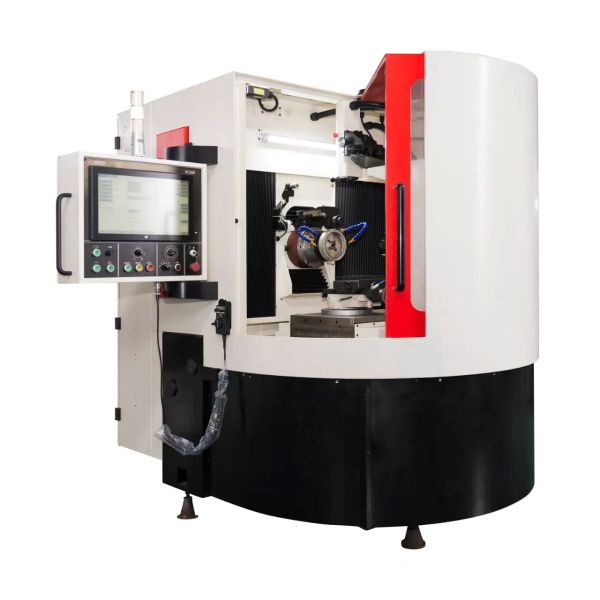

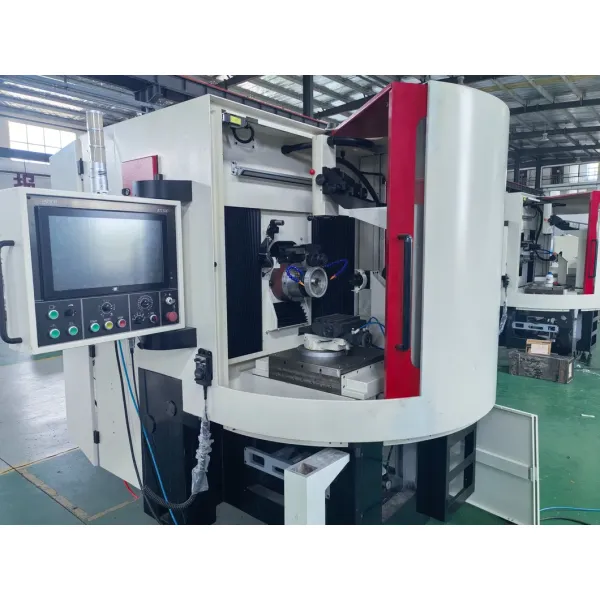

Four Axis PCD Insert Tool Grinder for CNC Cutting ToolFour Axis PCD Insert Tool Grinder for CNC Cutting ToolFour Axis PCD Insert Tool Grinder for CNC Cutting ToolFour Axis PCD Insert Tool Grinder for CNC Cutting ToolFour Axis PCD Insert Tool Grinder for CNC Cutting Tool

Product Parameters

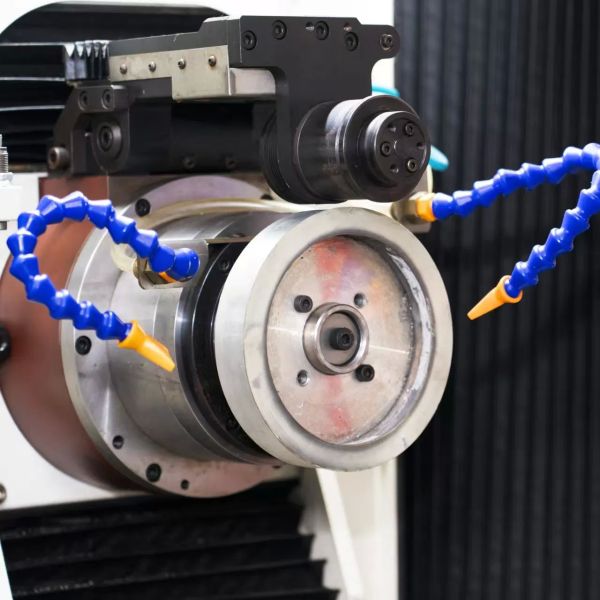

Spindle and Grinding Wheel
Diameter of Grinding wheel 150mm
Grinding wheel center hole 40mm
Power of grinding spindle 5KW
Adjustable range of grinding speed(RPM) 1000~8,000RPM
Servo motor swing, adjustable oscillation frequency 0~60times/min
Grinding wheel movement range(X ) 300mm
Changeable Clearance Angle -5°~25°
Tool work-head
Table movement range in feed direction 100mm
Rotation range of workpiece in horizontal plane 270°
Linear scale resolution 0.001mm
Rotary axis resolution 0.001°
CCD Monitoring System
Max Magnification of Optical Microscope 0.7~4.5 times
Magnification of CCD Measuring System, roughly 70times
Dimensions and weight
Coolant Tank with Filter Paper About 70 L
Overall Dimensions L*W*H 1890*1650*1980mm
Overall Weight With Coolant Tank 2400Kg
Power Supply
Electrical Supply 12KW
Voltage Requested 380V/Three phase /50Hz
