PCD Tool Manufacture&Regrinding Machine
PCD Tool Manufacture&Regrinding Machine
PCD Tool Manufacture&Regrinding Machine
PCD Tool Manufacture&Regrinding Machine
PCD Tool Manufacture&Regrinding Machine
PCD Tool Manufacture&Regrinding Machine
PCD Tool Manufacture&Regrinding Machine
PCD Tool Manufacture&Regrinding Machine
PCD Tool Manufacture&Regrinding Machine
PCD Tool Manufacture&Regrinding Machine
PCD Tool Manufacture&Regrinding Machine
PCD Tool Manufacture&Regrinding Machine
Specifications
Model NO. :
BT-150HS
Object :
Turning Tool
Application :
Tool Manufacturing
Disc(Wheel) Type :
Grinding Disc
Material :
Metal
Working Style :
High-speed universal
Disc Diameter :
150mm
Variable Speed :
With Variable Speed
Transport Package :
Wooden Case
Specification :
1890mm*1650mm*1980mm
Trademark :
DEMINA
Origin :
China
HS Code :
8460390000
Production Capacity :
50 Sets Peryear
MOQ :
1 Piece
Price :
US $30,000 / Piece
Description
Product Description

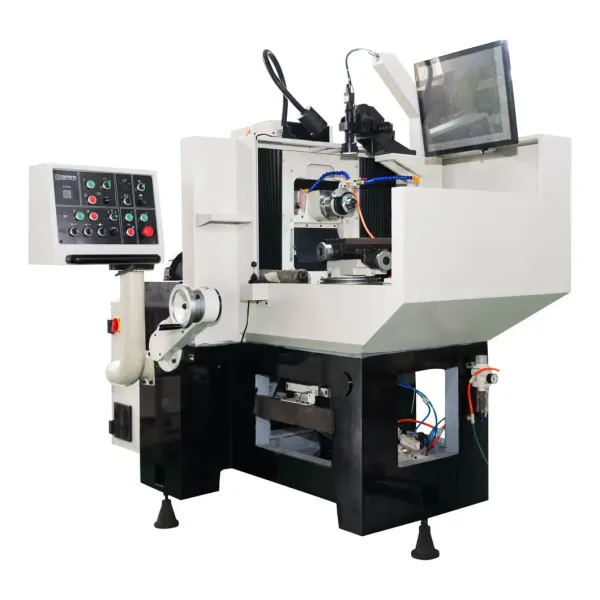

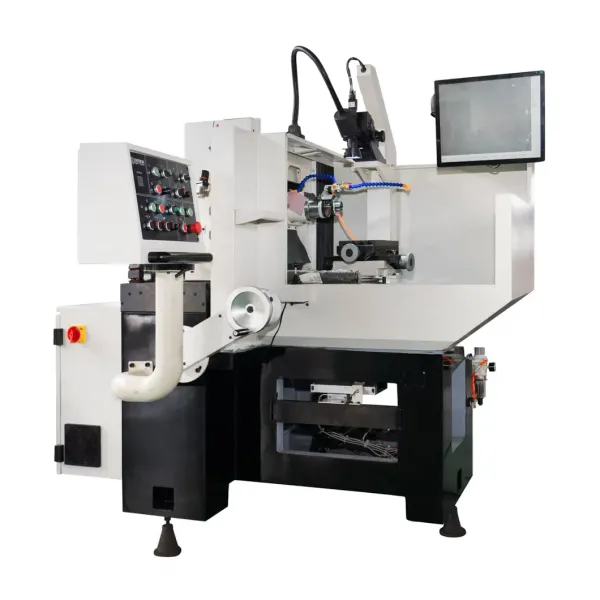

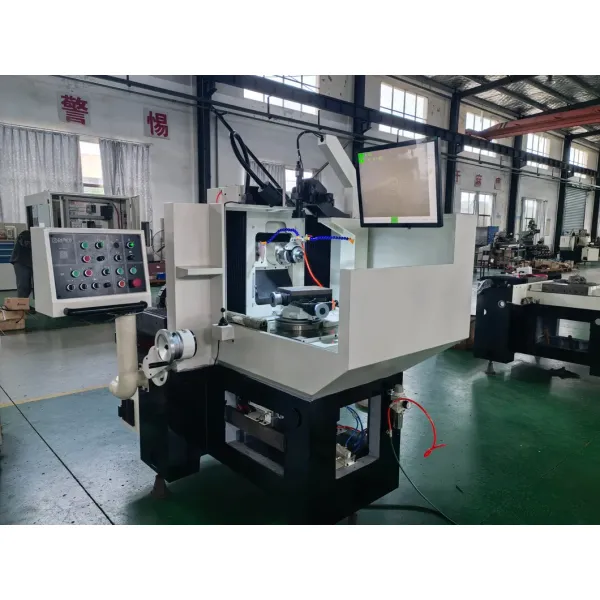

BT-150HS PCD tool grinding machine manufacture is economically manufactured and grinding PCD, PCBN and CVD tools; manufacture and grinding carbide and high speed steel non-standard blades.When grinding standard or non-standard welding inserts, clip blades, boring inserts, grooving insert, and other types of tools, it is easy to grind angle and arc transition blades on these tools.
Features

1. Mechanical structure of the machine tool: the machine tool bed body (base) adopts high-quality integral casting, and the main components weight of 1.6 tons, which can meet the requirements of any super hard material grinding.
2. Electric spindle of machine: grinding head adopts high-precision frequency conversion and speed regulating electric spindle, adopts circulating water cooling, grinding head spindle rotation accuracy: end jump: 0.002 mm; radial beat: 0.003 mm.
3. Pneumatic feed mechanism: the machine tool adopts the "constant pressure grinding" technology, that is, in the tool grinding process, the tool always bears a constant air pressure, so that the grinding process is balanced and stable, and the overall grinding efficiency is high.

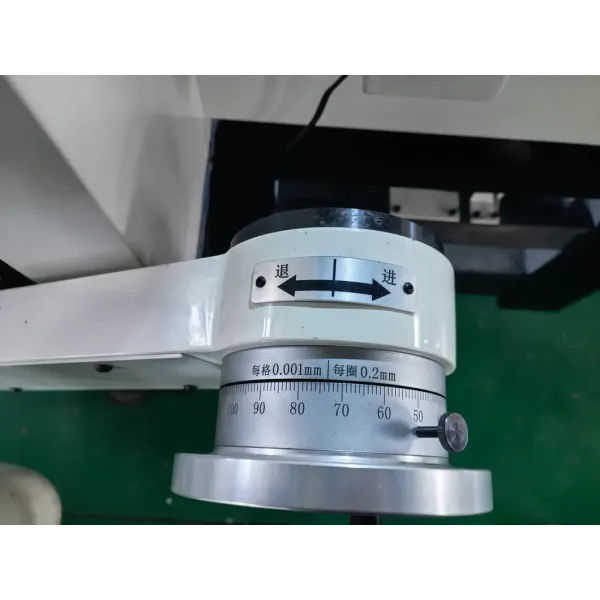

4. Auxiliary work: the tool approaches the grinding wheel, and the tool returns to the loading position after grinding. These two actions are fast forward and fast retreat through the pneumatic feed device, which can save the auxiliary time up to 70%.
5. Grinding head reciprocating servo swing: the servo motor realizes the reciprocating swing of the grinding wheel, and the range is randomly adjusted between 0 and 30 mm, so that the grinding wheel is evenly consumed, timely self-sharp, to ensure the grinding precision and roughness.

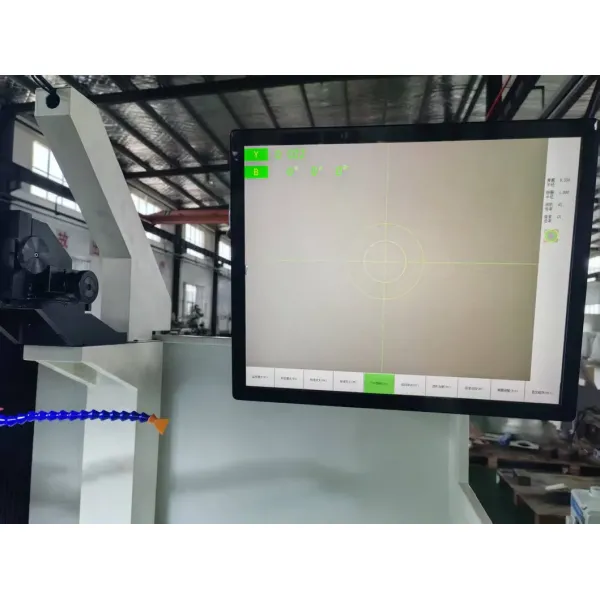

6. Online CCD measurement: using optical microscope and CCD camera amplification technology, magnification between 25~80, used for alignment line is generated by software, after calibration as a benchmark, ensure the alignment accuracy, make the machine can accurately detect the sharp arc, Angle line and graphics import function, non-standard tool alignment measurement.
7. Radial axial locking of grinding wheel: the radial locking technology of grinding wheel spindle makes the concave and convex phase of the two circular arc guide rail hold the brake tight, achieves the smooth contact without gap, and greatly enhances the rigidity of the equipment.The adjustment of the grinding wheel elevation (which determines the rear corner of the tool) does not change the position of the center line of the grinding wheel, so the coarse fine grinding does not need to adjust the grinding wheel height.
8. Grinding head lifting adjustment shaft: the grinding point vertical lifting device developed for non-standard tools (such as V-cut tool, dense tooth milling tool and tool front blade, etc.), lifting distance of ± 75cm, easy operation.
Product Parameters
Machine Parameters
Diameter of Grinding wheel 150mm
Grinding wheel center hole 40mm
Grinding Spindle Power 3 KW
RPM of Grinding 500~4,000 RPM
Magnification of CCD measuring System Up to 70 times
Coolant Tank with Filter Paper About 70 L
Electrical Supply 12 KW
Power Supply 380V /3 Phase/50Hz
Overall Dimensions L×W×H 1890×1650×1980mm
Weight 2000kg

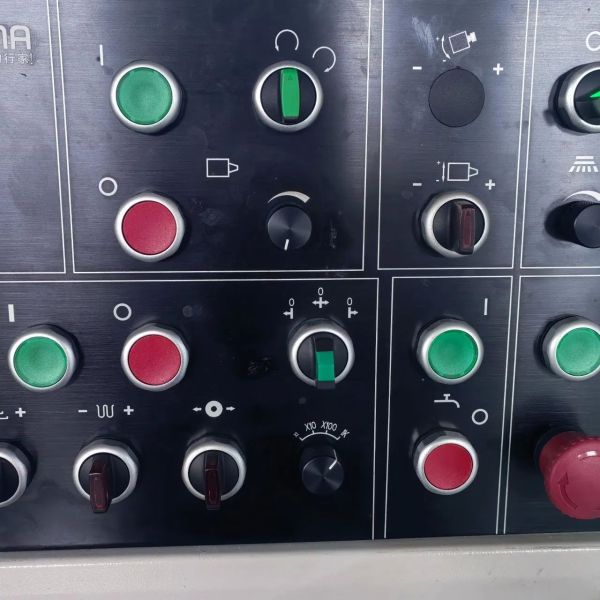

Detailed Photos

PCD Tool Manufacture&Regrinding MachinePCD Tool Manufacture&Regrinding MachinePCD Tool Manufacture&Regrinding MachinePCD Tool Manufacture&Regrinding MachinePCD Tool Manufacture&Regrinding Machine
