Specifications
Processing Object :
Milling Cutter
Automatic Grade :
Manual
Trademark :
DEMINA
Type :
Tool Grinding Machine
Model NO. :
BT-150H
Supply Ability :
50 SETS PER YEAR
Specification :
1890mm*1650mm*1980mm
Brand Name :
DEMINA
Condition :
New
Production Capacity :
50 Sets Per year
Model Number :
BT-150H
Precision :
Precision
Certification :
ISO 9001
Abrasives :
Grinding Wheel
Controlling Mode :
Pneumatic
HS Code :
8460390000
MOQ :
1 Piece
Packaging Details :
WOODEN CASE
Payment Terms :
T/T
Place of Origin :
CHINA
Origin :
CHINA
Delivery Time :
30 DAYS
Transport Package :
Wooden Case
Description

Description

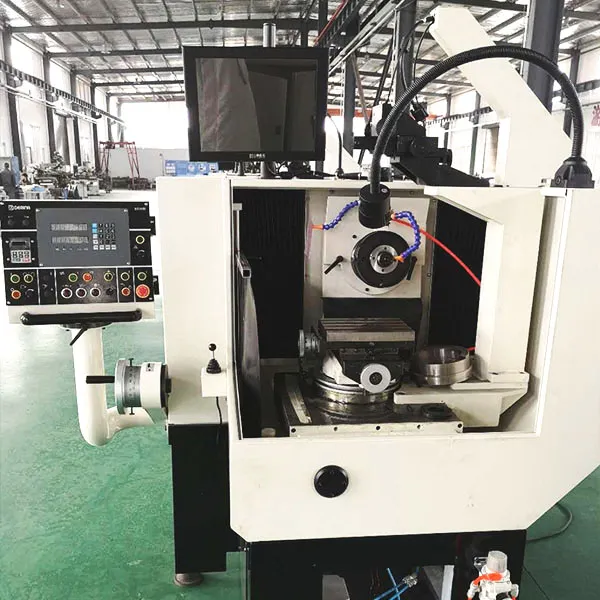

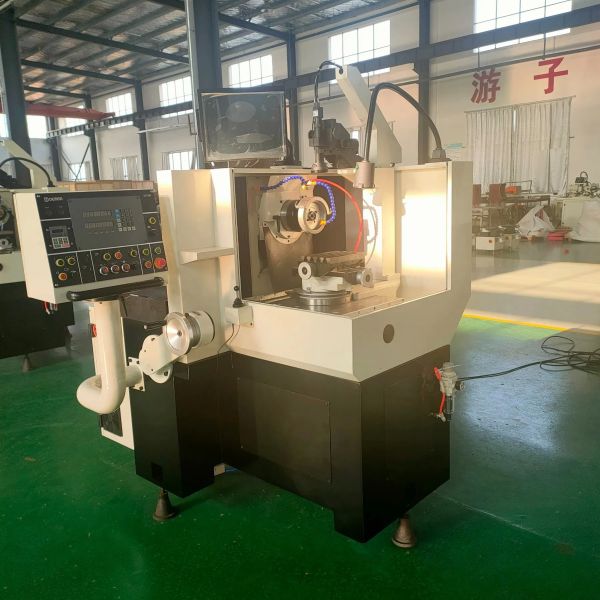

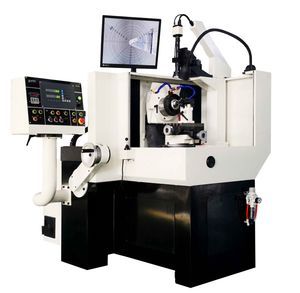

BT-150H is an economical tool grinder designed for the manufacturing and regrinding of superhard cutting tools made from PCD, PCBN, CVD, as well as carbide and high-speed steel inserts. The machine adopts a pneumatic feed system to achieve "flexible feed" and "constant pressure grinding," improving grinding efficiency. Its unique grinding wheel inclination design enhances machine rigidity.


Main Parameters

Spindle and Grinding Wheel

Diameter of Grinding wheel

150mm

Grinding wheel center hole

40mm

Power of grinding spindle

3kW

Adjustable range of grinding speed (RPM)

1000 ~ 4000RPM

Servo motor swing, adjustable oscillation frequency

0 ~ 60times/min

Grinding wheel movement range (X)

300mm

Changeable Clearance Angle

-5° ~ 25°

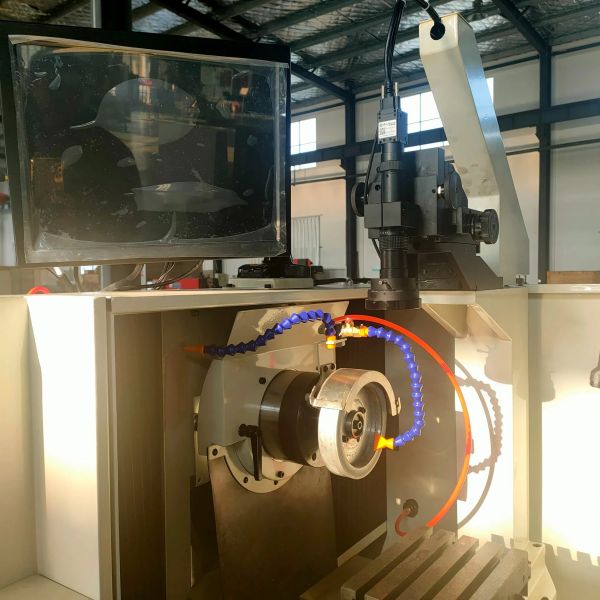

CCD Monitoring System

Max Magnification of Optical Microscope

0.7 ~ 4.5times

Magnification of CCD Measuring System, roughly

About 70times

Dimensions and weight

Coolant Tank with Filter Paper

About 70L

Overall Dimensions L x W x H

1890 x 1650 x 1980mm

Overall weight with Coolant Tank

2000Kg

Power Supply

Electrical Supply

12kW

Voltage Requested

380V/Three phase/50Hz
