Specifications
Certification :
ISO 9001
Specification :
1890mm*1650mm*1980mm
Processing Object :
Turning Tool
Cylindrical Grinder Type :
Tool Manufacturing
MOQ :
1 Piece
Supply Ability :
50 SETS PER YEAR
Abrasives :
Grinding Wheel
Controlling Mode :
Pneumatic
Trademark :
DEMINA
Payment Terms :
T/T
HS Code :
8460390000
Packaging Details :
WOODEN CASE
Origin :
CHINA
Transport Package :
Wooden Case
Model Number :
BT-150HS
Condition :
New
Brand Name :
DEMINA
Place of Origin :
CHINA
Model NO. :
BT-150HS
Type :
Radius Grinder
Delivery Time :
30 DAYS
Precision :
Precision
Production Capacity :
50 Sets Per year
Description

Description

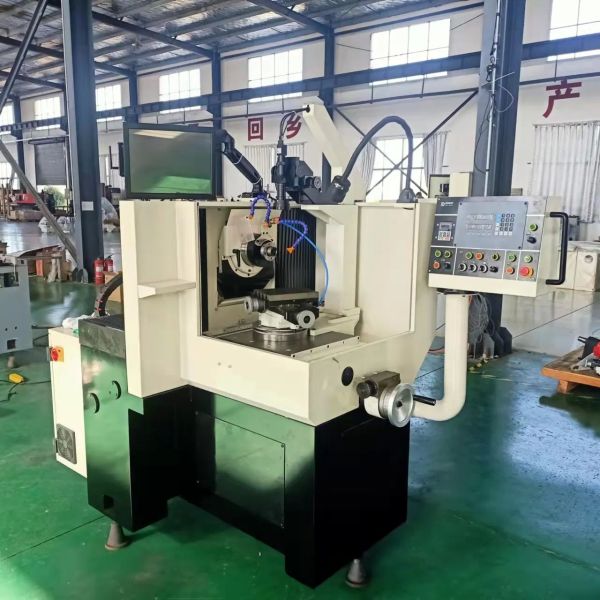

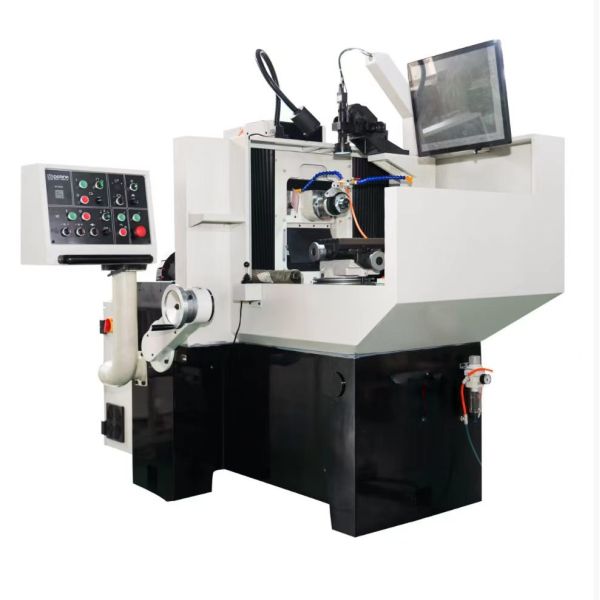

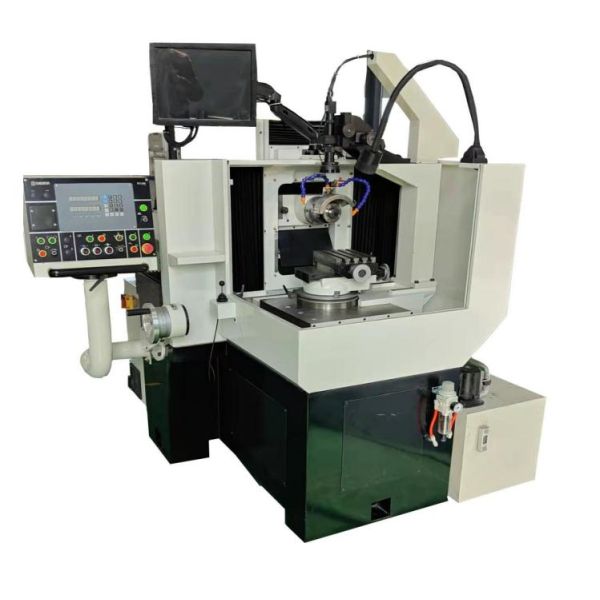

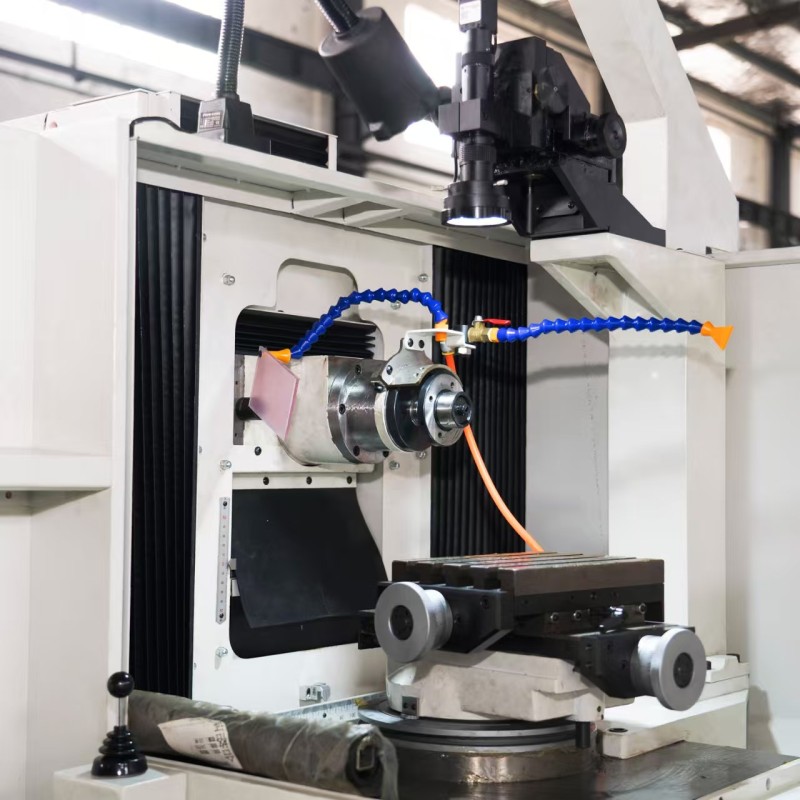

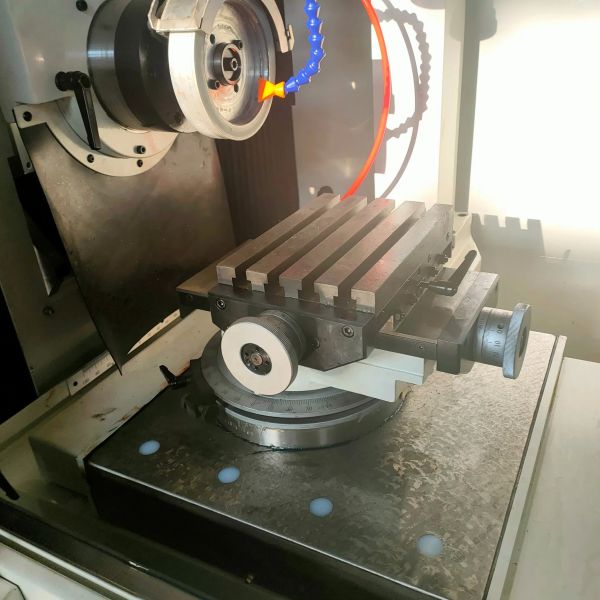

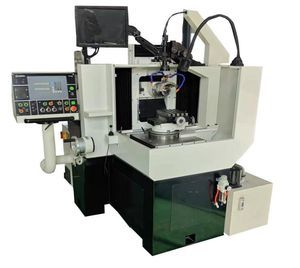

BT-150HS is an economical tool grinder designed for the manufacturing and regrinding of superhard cutting tools made from PCD, PCBN, and CVD, as well as carbide and high-speed steel inserts. Its unique grinding head lifting device makes it easier to grind angles and radii on non-standard tools such as welded turning tools, reamers, boring tools, grooving tools, and many other types of tools.

Main Parameters

Spindle and Grinding Wheel

Diameter of Grinding wheel

150mm

Grinding wheel center hole

40mm

Power of grinding spindle

3kW

Adjustable range of grinding speed (RPM)

500 ~ 4000RPM

Servo motor swing, adjustable oscillation frequency

0 ~ 60times/min

Grinding wheel movement range (X)

300mm

Changeable Clearance Angle

-5° ~ 25°

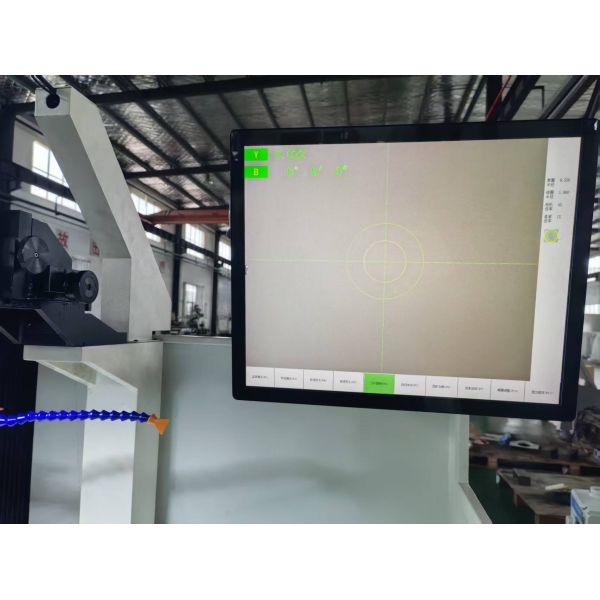

CCD Monitoring System

Max Magnification of Optical Microscope

0.7 ~ 4.5times

Magnification of CCD Measuring System, roughly

About 70times

Dimensions and weight

Coolant Tank with Filter Paper

About 70L

Overall Dimensions L x W x H

1890 x 1650 x 1980mm

Overall weight with Coolant Tank

2000Kg

Power Supply

Electrical Supply

12kW

Voltage Requested

380V/Three phase/50Hz
