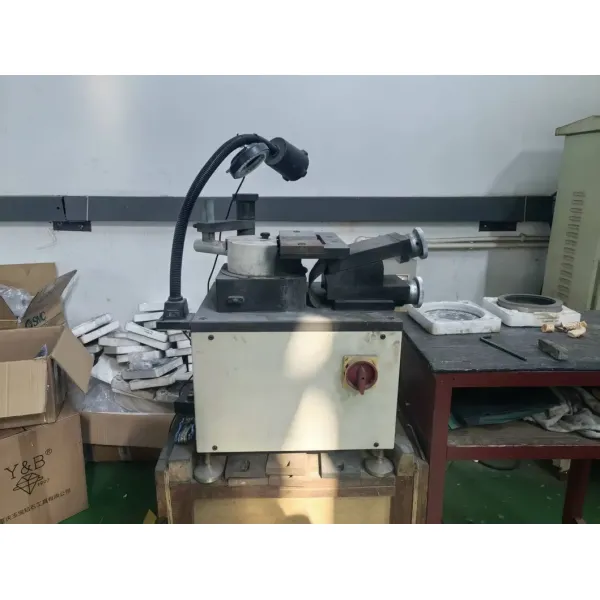

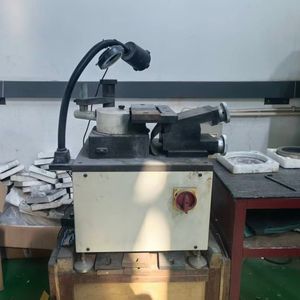

Bt300 CBN Insert Chamfering Machine
Bt300 CBN Insert Chamfering Machine
Bt300 CBN Insert Chamfering Machine
Bt300 CBN Insert Chamfering Machine
Bt300 CBN Insert Chamfering Machine
Bt300 CBN Insert Chamfering Machine
Bt300 CBN Insert Chamfering Machine
Bt300 CBN Insert Chamfering Machine
Bt300 CBN Insert Chamfering Machine
Bt300 CBN Insert Chamfering Machine
Bt300 CBN Insert Chamfering Machine
Bt300 CBN Insert Chamfering Machine
Specifications
Model NO. :
BT300
Type :
Tool Grinding Machine
Processing Object :
Insert
Abrasives :
Grinding Wheel
Controlling Mode :
Artificial
Automatic Grade :
Manual
Cylindrical Grinder Type :
Chamfering Machine
Precision :
Precision
Certification :
CE, ISO 9001
Condition :
New
Transport Package :
Wooden Case
Specification :
600*350*700mm
Trademark :
DEMINA
Origin :
China
Production Capacity :
50 Sets Per Year
MOQ :
1 Piece
Price :
US $3,000 / Piece
Description
Product Description

Negative chamfering refers to grinding a chamfer with specified angle and width on the insert edge. The negative chamfer increases the tool's wedge angle, enhances edge strength, expands the heat dissipation area, and increases chip deformation. It is significant for improving tool durability and facilitating smooth chip curling. Therefore, grinding a suitable negative chamfer is crucial for the insert.
The DJ150 is a specialized machine for applying negative chamfers to inserts. It can grind negative chamfers according to the required angles for different inserts. Simultaneously, it allows for on-the-fly dressing of the grinding wheel to ensure the production of high-quality negative chamfers that meet insert specifications.

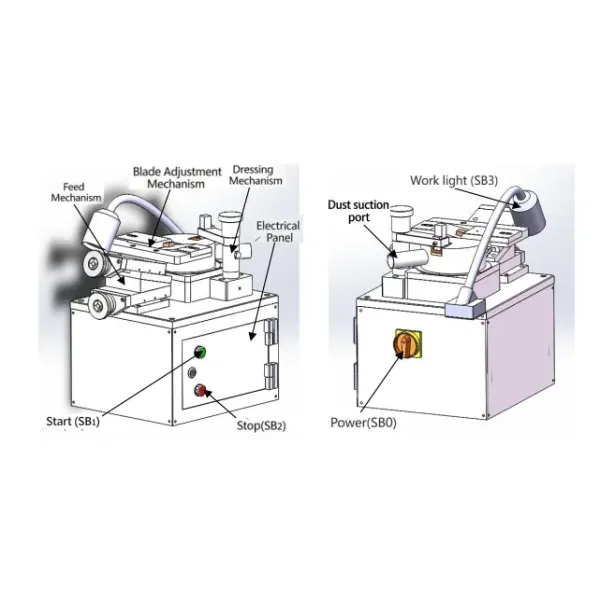

Components and Parts

Bt300 CBN Insert Chamfering Machine
Product Parameters
Power Supply 380V  50Hz Current 2A
Power 300W Spindle Speed 1400rpm
Weight 25kg Dimensions (L×W×H)mm 600×350×700
Grinding Wheel Model D150T40H40W15X10    W20

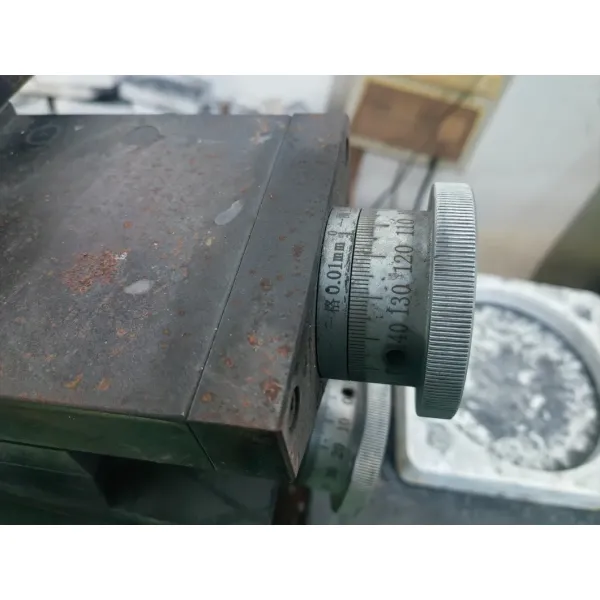

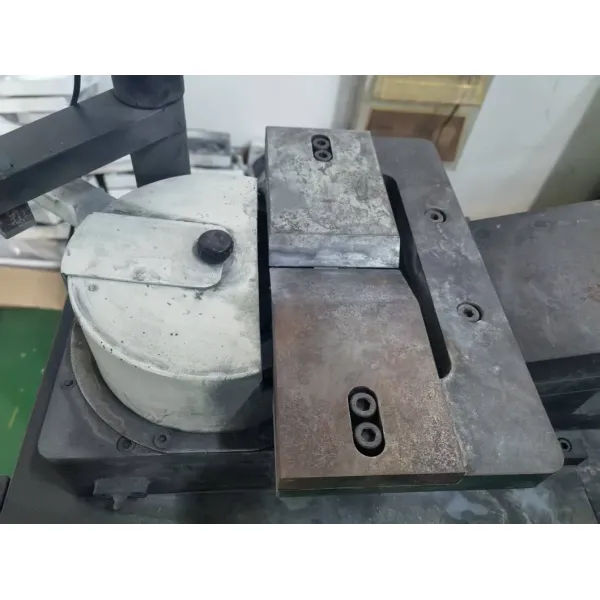

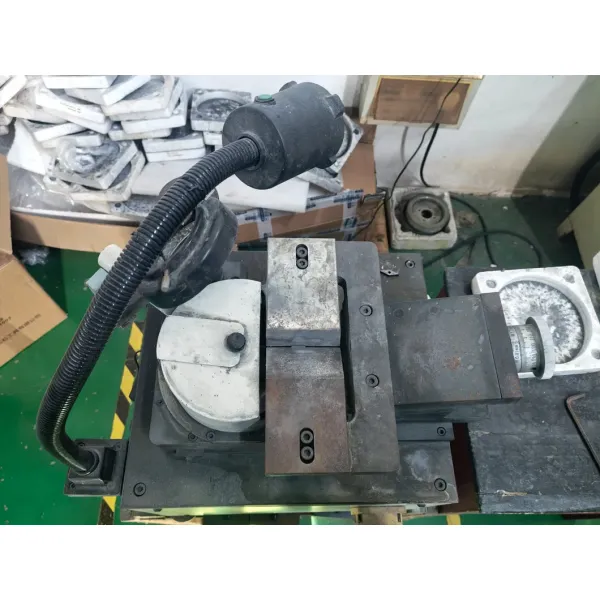

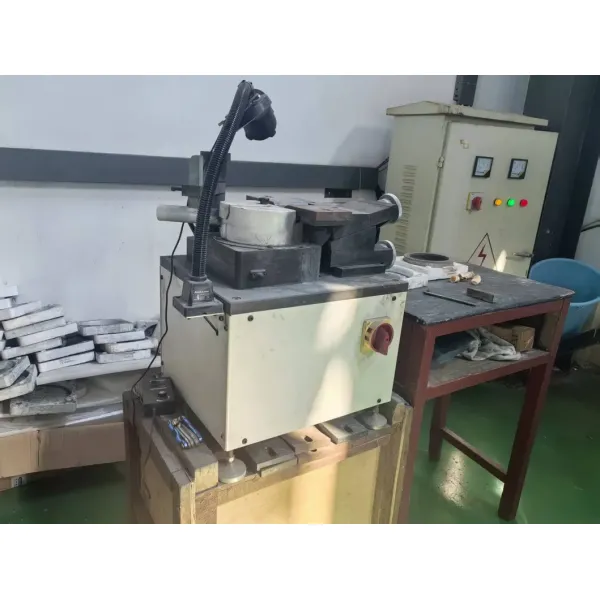

Detailed Photos

Bt300 CBN Insert Chamfering MachineBt300 CBN Insert Chamfering MachineBt300 CBN Insert Chamfering MachineBt300 CBN Insert Chamfering MachineBt300 CBN Insert Chamfering Machine
