BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
BT-150HS PCD Tool Grinding Machine
Specifications
Controlling Mode :
Artificial
Origin :
CHINA
Diameter of Grinding Wheel :
150mm
Electrical Supply :
12 Kw
Automatic Grade :
Manual
Weight :
2000kg
Condition :
New
Transport Package :
Wooden Case
Production Capacity :
50 Sets Per year
Delivery Time :
60 DAYS
MOQ :
1 Piece
Type :
Radius Grinder
Processing Object :
Insert/Reamer
Rpm of Grinding :
4000 Rpm
Specification :
1890mm*1650mm*1980mm
Packaging Details :
WOODEN CASE
Model NO. :
BT-150HS
Trademark :
DEMINA
Place of Origin :
CHINA
Abrasives :
Grinding Wheel
Certification :
ISO 9001
Brand Name :
DEMINA
Precision :
Precision
HS Code :
8460390000
Payment Terms :
T/T
Model Number :
BT-150HS
Supply Ability :
50 SETS PER YEAR
Power Supply :
380V /3 Phase/50Hz
Description
Description

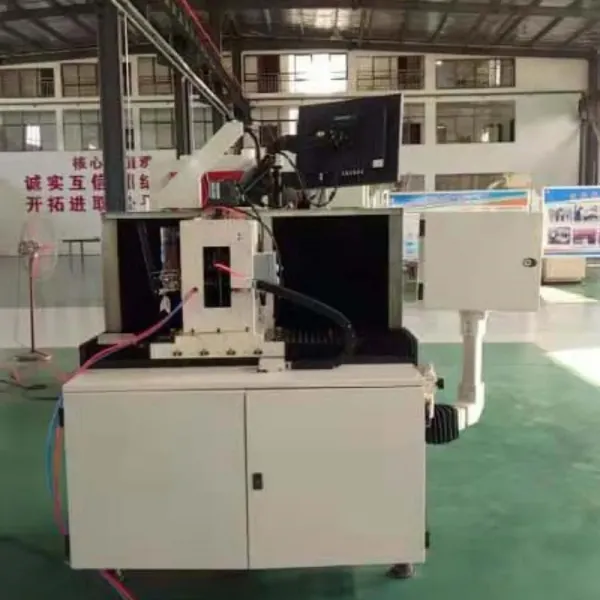

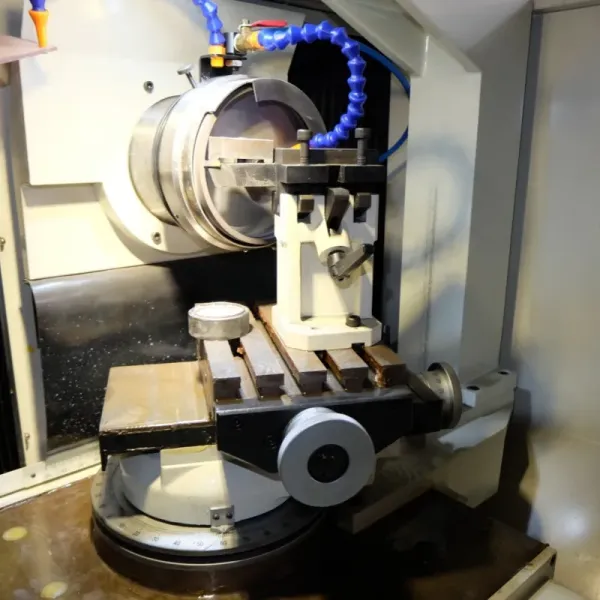

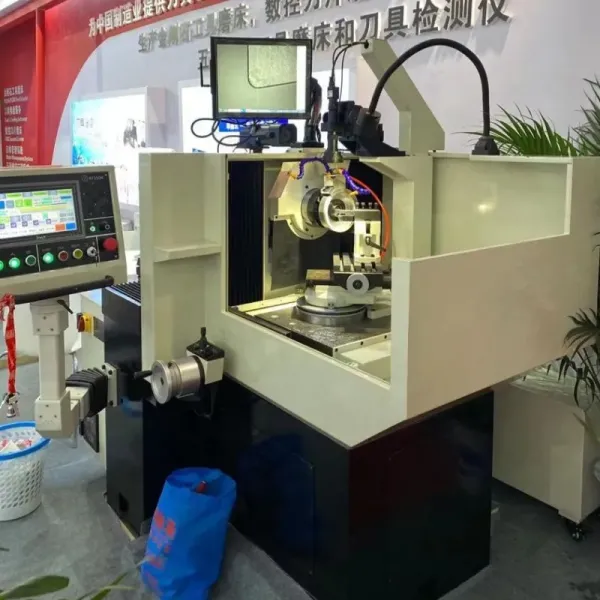

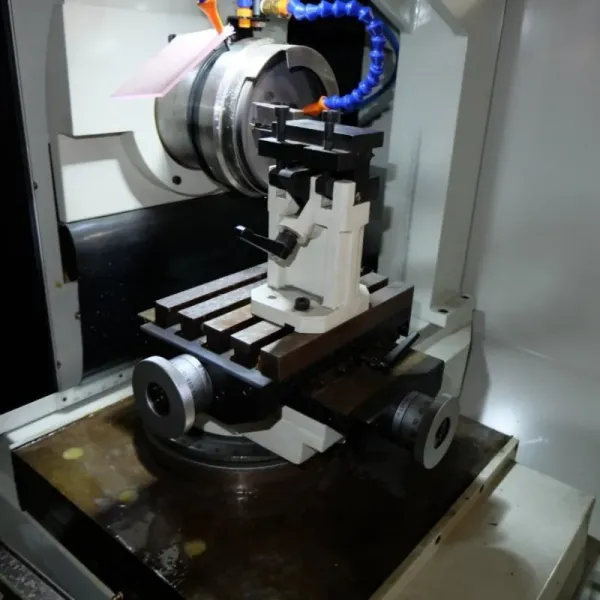

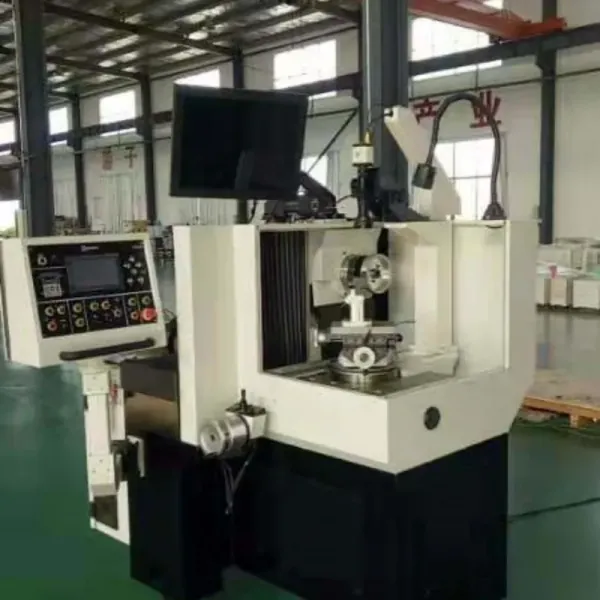

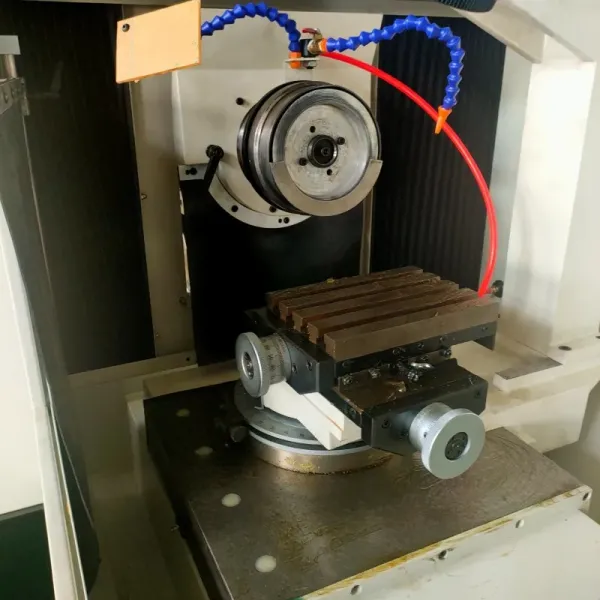

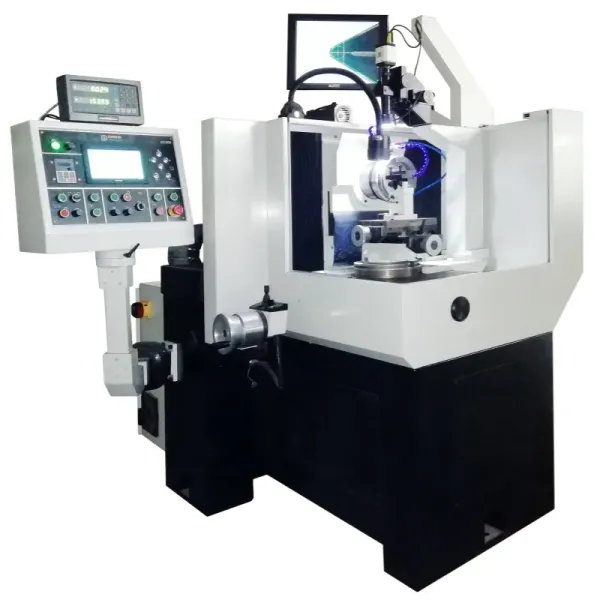

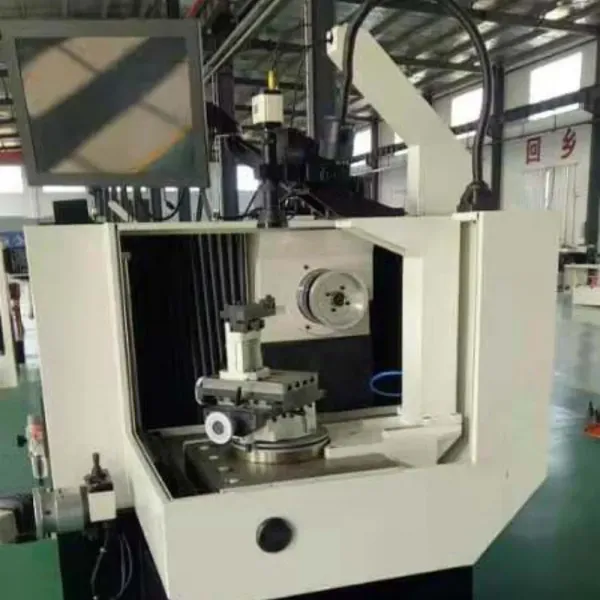

BT-150HS is an economical tool grinder designed for the manufacturing and regrinding of superhard cutting tools made from PCD, PCBN, and CVD, as well as carbide and high-speed steel inserts. Its unique grinding head lifting device makes it easier to grind angles and radii on non-standard tools such as welded turning tools, reamers, boring tools, grooving tools, and many other types of tools.


Main Parameters

Spindle and Grinding Wheel

Diameter of Grinding wheel

150mm

Grinding wheel center hole

40mm

Power of grinding spindle

3kW

Adjustable range of grinding speed (RPM)

500 ~ 4000RPM

Servo motor swing, adjustable oscillation frequency

0 ~ 60times/min

Grinding wheel movement range (X)

300mm

Changeable Clearance Angle

-5° ~ 25°

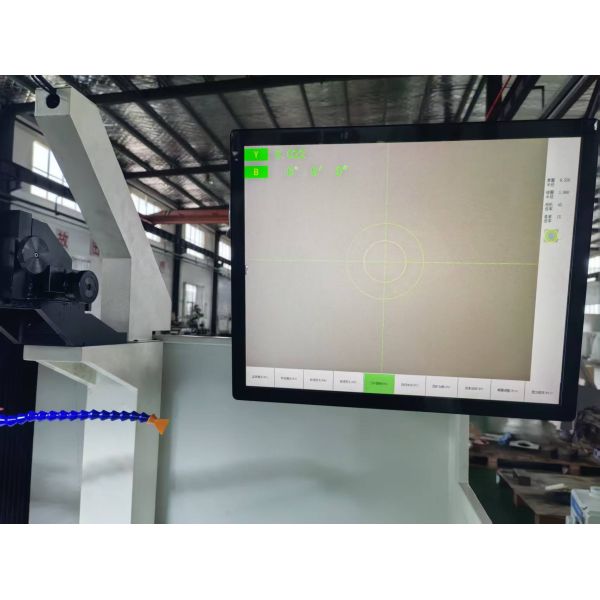

CCD Monitoring System

Max Magnification of Optical Microscope

0.7 ~ 4.5times

Magnification of CCD Measuring System, roughly

About 70times

Dimensions and weight

Coolant Tank with Filter Paper

About 70L

Overall Dimensions L x W x H

1890 x 1650 x 1980mm

Overall weight with Coolant Tank

2000Kg

Power Supply

Electrical Supply

12kW

Voltage Requested

380V/Three phase/50Hz
