Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
Specifications
Model NO. :
BT-150H
Type :
Tool Grinding Machine
Processing Object :
Curve
Abrasives :
Grinding Wheel
Controlling Mode :
CNC
Automatic Grade :
Automatic
Cylindrical Grinder Type :
Universal Cylindrical Grinder
Precision :
High Precision
Certification :
CE, ISO 9001
Condition :
New
Transport Package :
Wooden Case
Specification :
1890mm*1650mm*1980mm
Trademark :
Demina MFG Solutions
Origin :
China
HS Code :
8460390000
Production Capacity :
50 Sets Per Year
MOQ :
1 Piece
Price :
US $26,000 / Piece
Description
Product Description
BT-150H is designed for the economical manufacturing and regrinding of cutting tools made from PCD, PCBN, CVD, tungsten, carbide and other materials. It can grind angles and radii on standard and special turning and milling inserts, boring tools, grooving tools and many types of special turning tools.
Our Advantages
  1. No vertical axis: vertical shaft lifting is not necessary because of height adjusting fixture on the workbench, greatly enhances the stability and rigid of the equipment.
  2. Stable feed: in order to avoid periodic impact, the machine to be equipped with "flexible feed" of air pressure device, effectively improve the roughness of the tool edge.

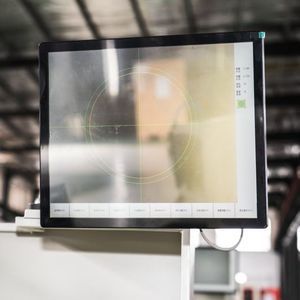

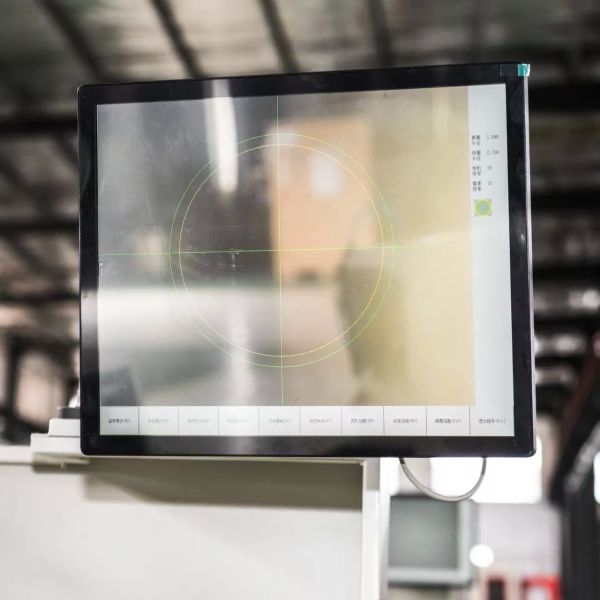

  3. Our company uses a big screen to display tool images in front of the operation position. An eye lift can cooperate. It improves production efficiency about 50%.
Product Parameters
Spindle and Grinding Wheel
Diameter of Grinding wheel 150mm
Grinding wheel center hole 40mm
Power of grinding spindle 3KW
Adjustable range of grinding speed(RPM) 1000~4000RPM
Servo motor swing, adjustable oscillation frequency 0~60times/min
Grinding wheel movement range(X ) 300mm
Changeable Clearance Angle -5°~25°
CCD Monitoring System
Max Magnification of Optical Microscope 0.7~4.5 times
Magnification of CCD Measuring System, roughly 70times
Dimensions and weight
Coolant Tank with Filter Paper About 70 L
Overall Dimensions L*W*H 1890*1650*1980mm
Overall Weight With Coolant Tank 2000Kg
Power Supply
Electrical Supply 12KW
Voltage Requested 380V/Three phase /50Hz
Detailed Photos

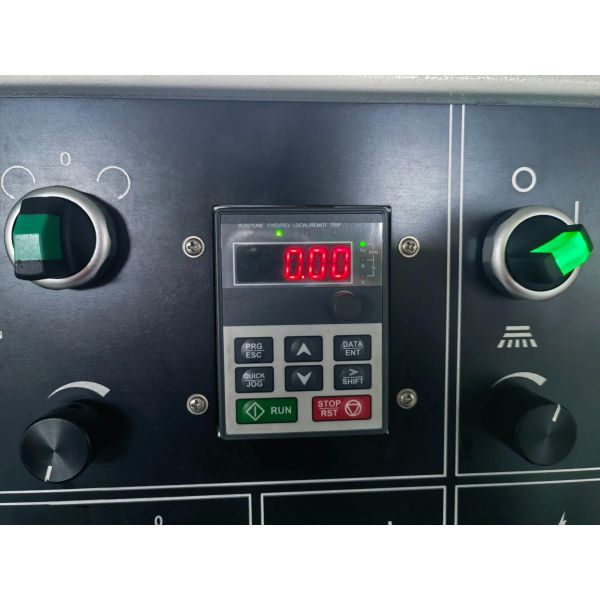

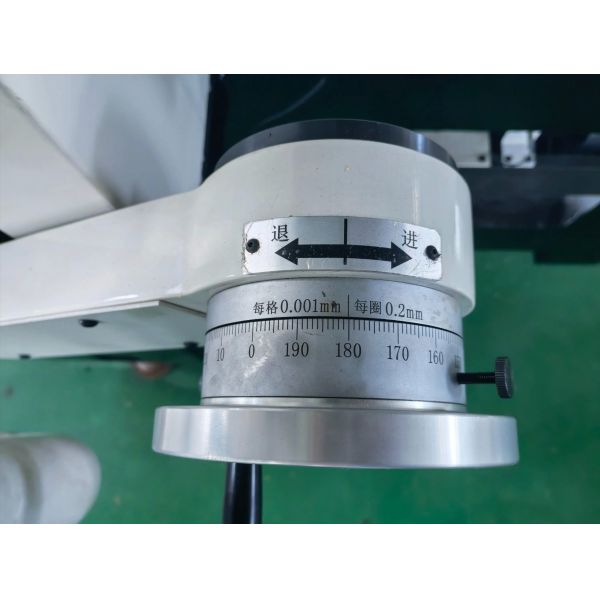

Three Axis CNC Cutting Tool Grinding Machine for PCD&CBN ToolsThree Axis CNC Cutting Tool Grinding Machine for PCD&CBN ToolsThree Axis CNC Cutting Tool Grinding Machine for PCD&CBN ToolsThree Axis CNC Cutting Tool Grinding Machine for PCD&CBN ToolsThree Axis CNC Cutting Tool Grinding Machine for PCD&CBN Tools
