Specifications
Certification :
ISO 9001
MOQ :
1 Piece
Payment Terms :
T/T
Supply Ability :
50 SETS PER YEAR
Delivery Time :
60 DAYS
Packaging Details :
WOODEN CASE
Model NO. :
BT-150D
Type :
Tool Grinding Machine
Processing Object :
PCD Tools
Abrasives :
Grinding Wheel
Controlling Mode :
CNC
Automatic Grade :
Semi Automatic
Cylindrical Grinder Type :
Cutting Tool Grinder
Precision :
High Precision
Condition :
New
Transport Package :
Wooden Case
Specification :
1890mm*1650mm*1980mm
Trademark :
DEMINA
Origin :
China
HS Code :
8460390000
Production Capacity :
50 Sets Peryear
Description
Description

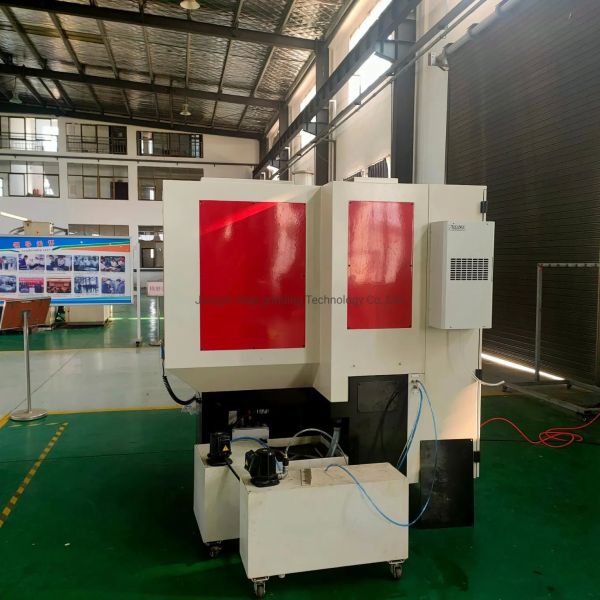

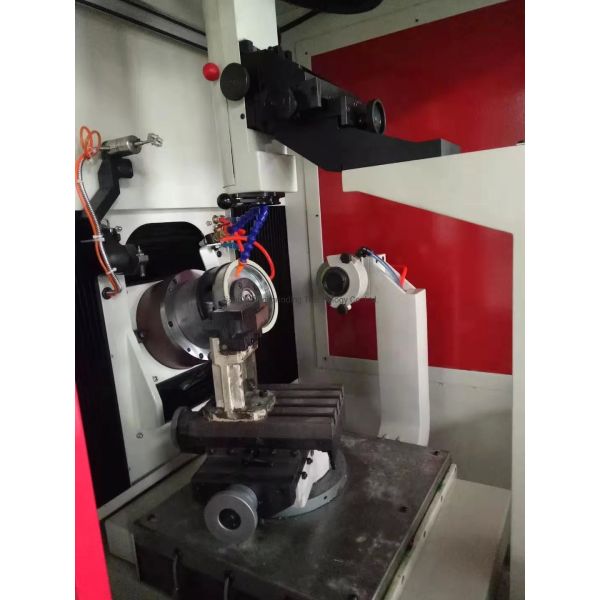

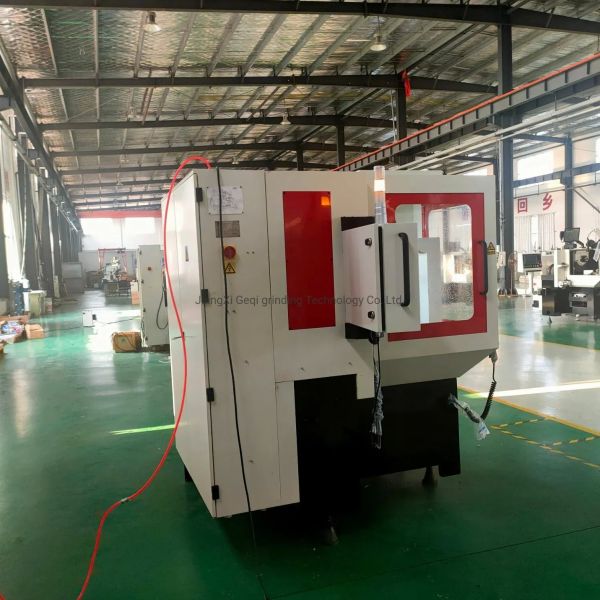

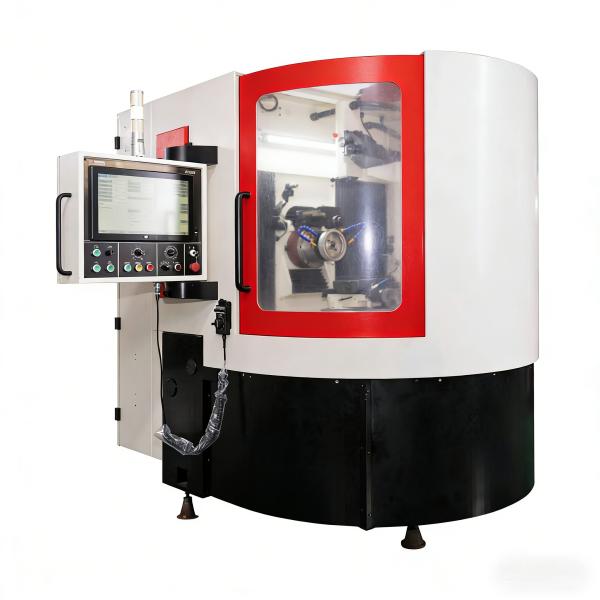

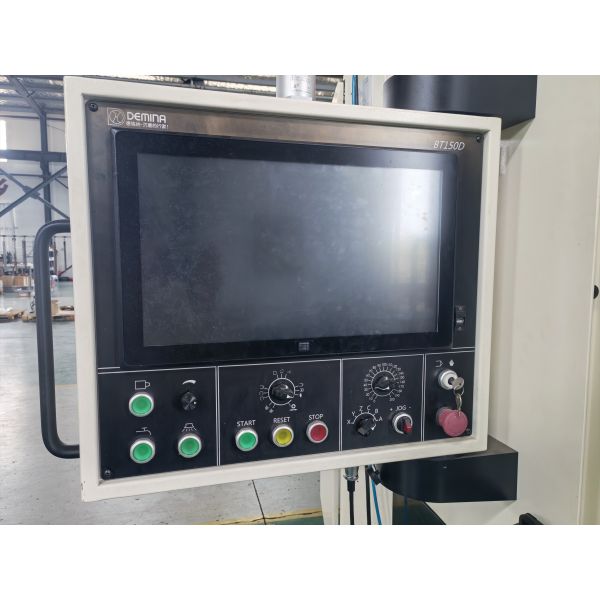

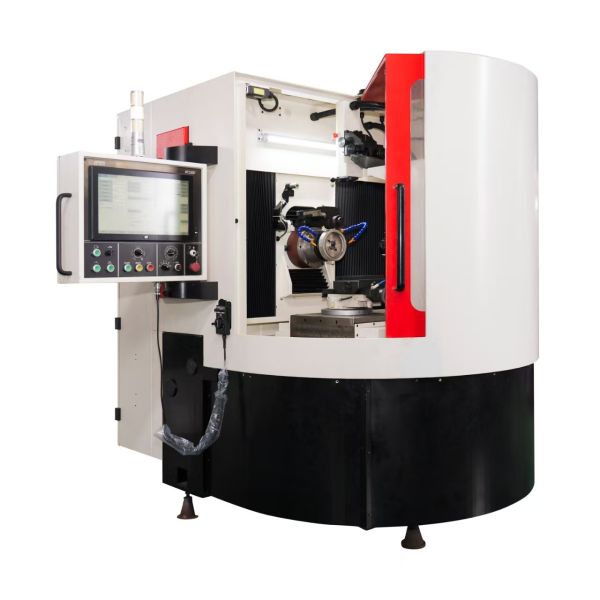

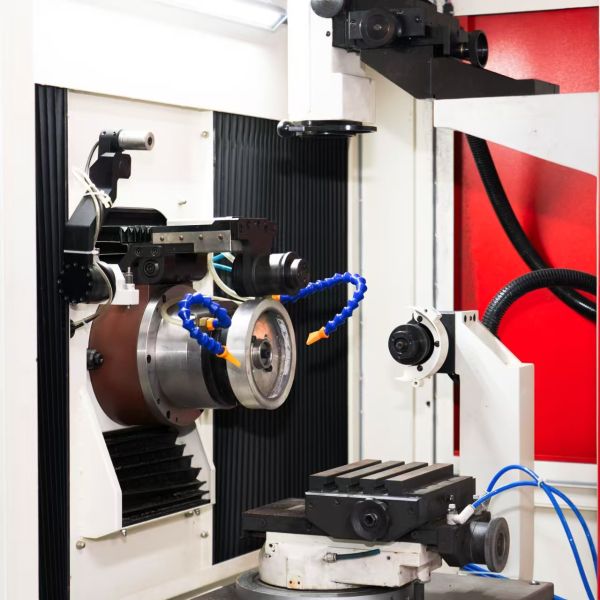

The BT-150D is a four-axis CNC tool grinder consisting of the wheel oscillation axis (X-axis), wheel tilt axis (C-axis), workpiece horizontal rotation axis (B-axis), and workpiece feed axis (Y-axis). The workpiece feed axis (Y-axis) is equipped with a linear scale for closed-loop position feedback, ensuring micron-level grinding accuracy. This machine is suitable for the production of medium to large batches of carbide inserts, PCD inserts, and CBN inserts. Once centering is completed, the system achieves the ideal state of "constant-pressure grinding and flexible feed" with the push of a button.


Main Parameters

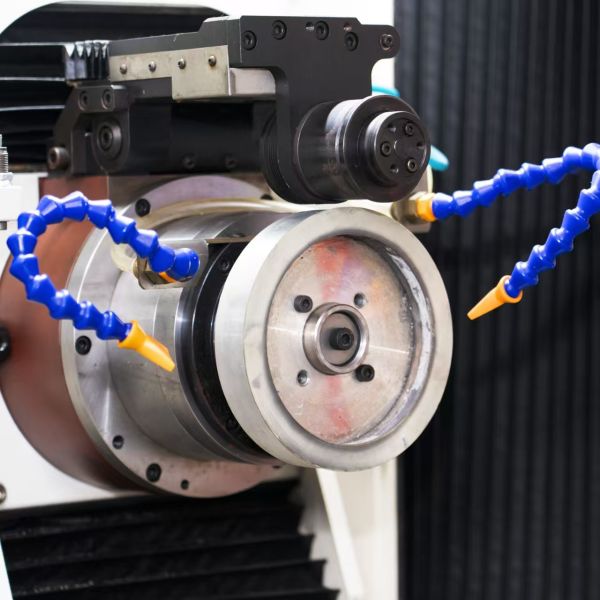

Spindle and Grinding Wheel

Diameter of Grinding wheel

150mm

Grinding wheel center hole

40mm

Power of grinding spindle

5KW

Adjustable range of grinding speed(RPM)

1000～8,000RPM

Servo motor swing, adjustable oscillation frequency

0~60times/min

Grinding wheel movement range(X )

300mm

Changeable Clearance Angle

-5°~25°

Tool work-head

Table movement range in feed direction

100mm

Rotation range of workpiece in horizontal plane

270°

Linear scale resolution

0.001mm

Rotary axis resolution

0.001°

CCD Monitoring System

Max Magnification of Optical Microscope

0.7~4.5 times

Magnification of CCD Measuring System, roughly

70times

Dimensions and weight

Coolant Tank with Filter Paper

About 70 L

Overall Dimensions L*W*H

1890*1650*1980mm

Overall Weight With Coolant Tank

2400Kg

Power Supply

Electrical Supply

12KW

Voltage Requested

380V/Three phase /50Hz
