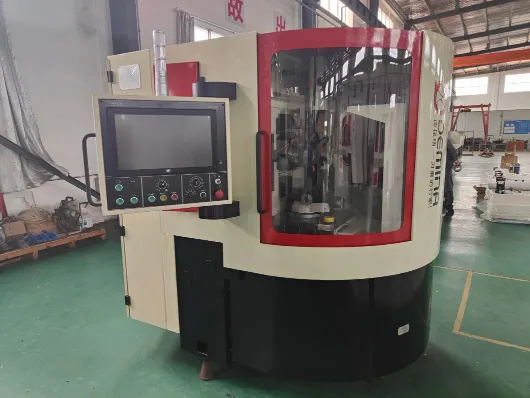

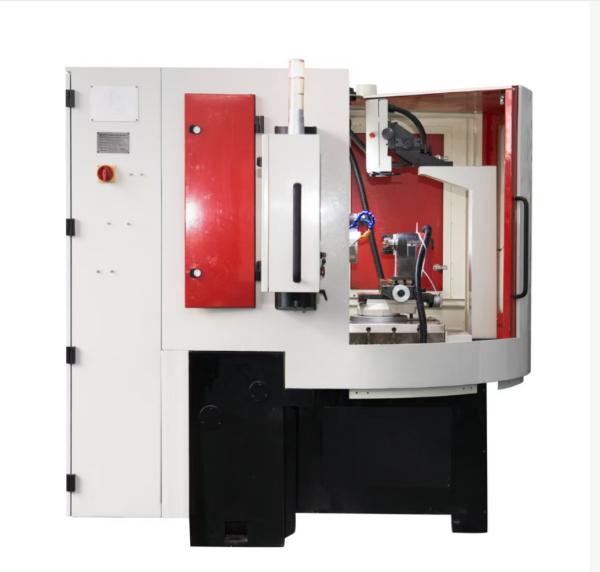

BT-150DS CNC Universal Tool Grinder

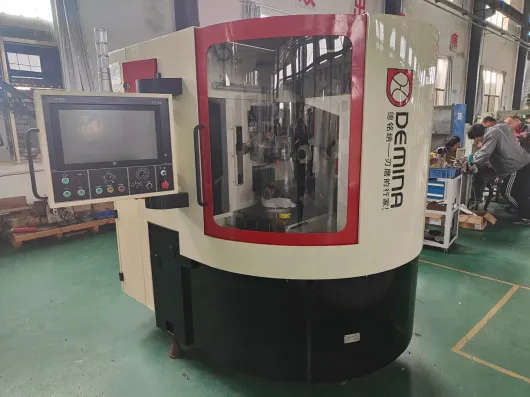

BT-150DS CNC Universal Tool Grinder

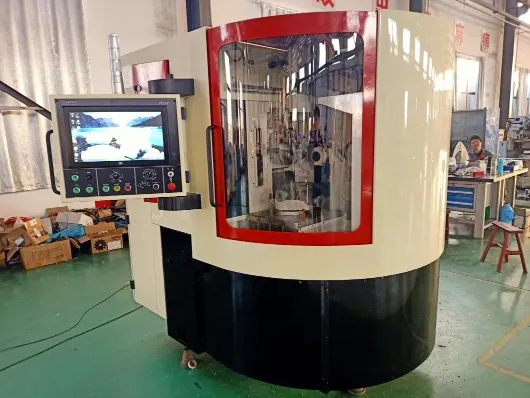

BT-150DS CNC Universal Tool Grinder

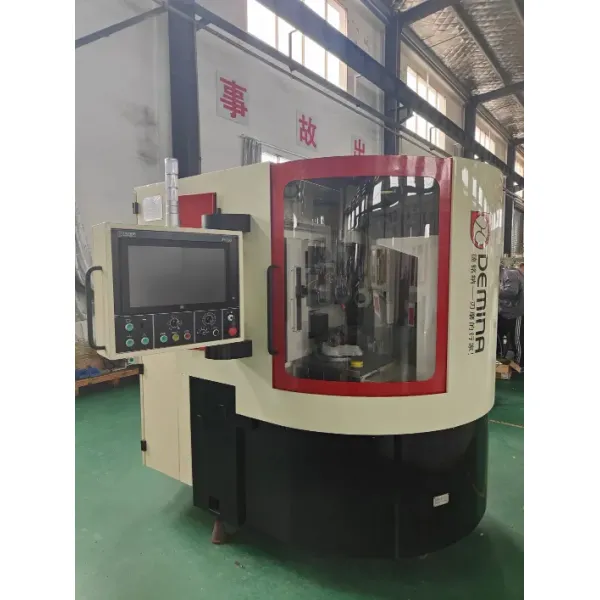

BT-150DS CNC Universal Tool Grinder

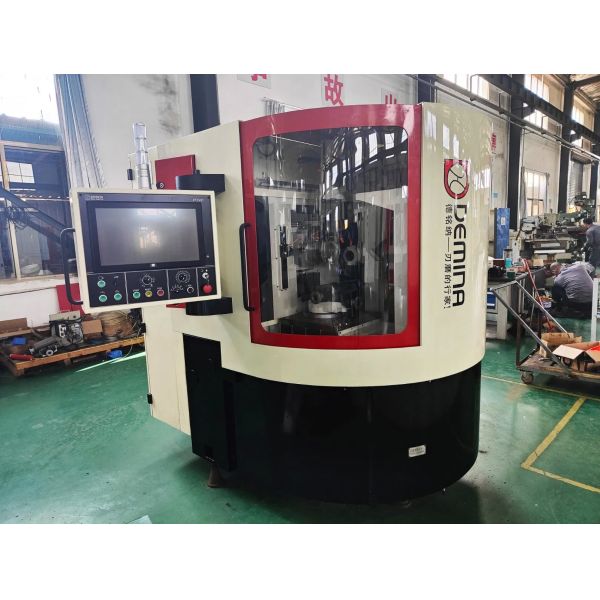

BT-150DS CNC Universal Tool Grinder

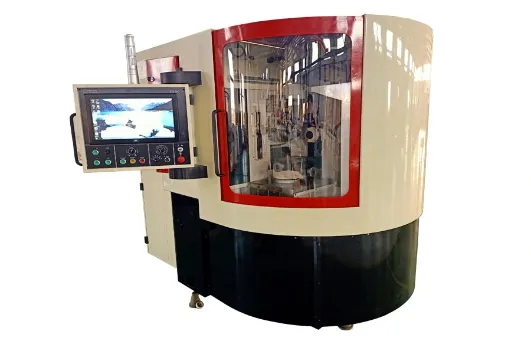

BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
BT-150DS CNC Universal Tool Grinder
Specifications
Certification :
ISO 9001
MOQ :
1 Piece
Brand Name :
DEMINA
Model Number :
BT-150DS
Place of Origin :
CHINA
Payment Terms :
T/T
Supply Ability :
50 SETS PER YEAR
Delivery Time :
60 DAYS
Packaging Details :
WOODEN CASE
Model NO. :
BT-150DS
Type :
Tool Grinding Machine
Processing Object :
PCD Tools
Abrasives :
Grinding Wheel
Controlling Mode :
CNC
Automatic Grade :
Automatic
Cylindrical Grinder Type :
Cutting Tool Grinder
Precision :
Precision
Condition :
New
Transport Package :
Wooden Case
Specification :
1890mm*1650mm*1980mm
Trademark :
DEMINA
Origin :
China
HS Code :
8460390000
Production Capacity :
50 Sets Peryear
Description

Product description

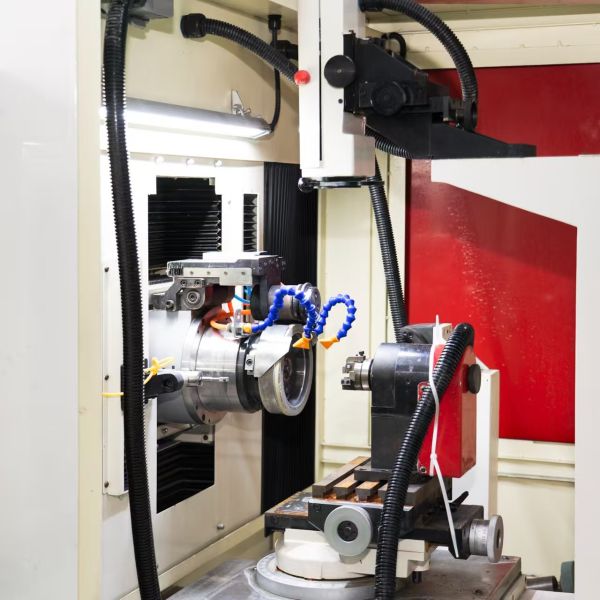

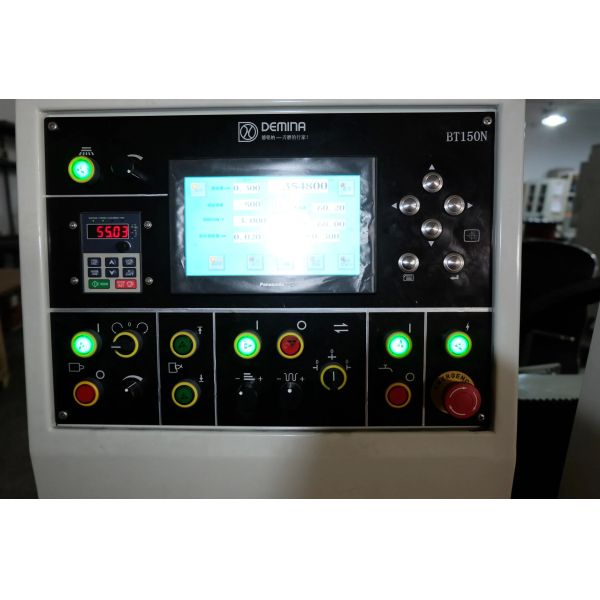

Bt-150DS is a six axis CNC tool grinder, which is composed of six axes: grinding wheel swing axis (x axis), workpiece feed axis (Y axis), grinding wheel vertical motion axis (Z axis), workpiece horizontal rotation axis (c axis), tool indexing axis (a axis) and grinding wheel inclination angle (b axis). The machine tool is suitable for the production and grinding of medium and large quantities of carbide insert, PCD insert, CBN insert and rotary carbide tools. As long as the alignment is completed and the switch is pressed, the system will automatically complete the grinding under the action of the gravity of the heavy hammer, realizing the ideal state of "constant pressure grinding and flexible feeding". Due to the high hardness of diamond material (PCD) and the rapid wear of grinding wheel, the system can automatically detect and compensate this wear, and can maintain the dimensional accuracy of grinding for a long time.


Main Parameters

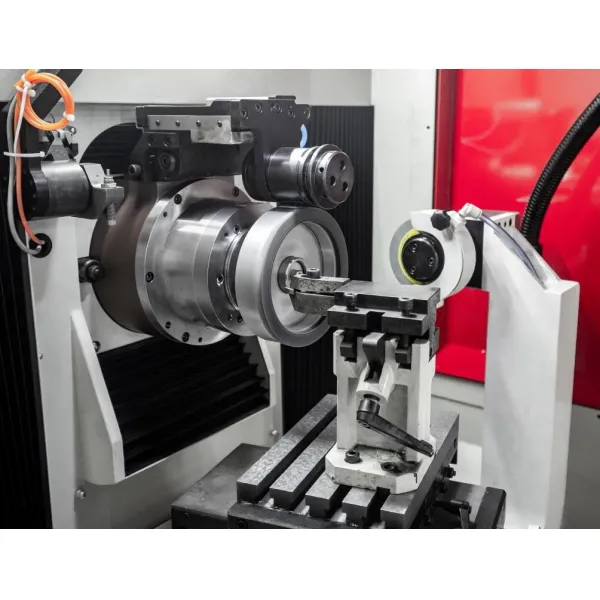

Spindle and Grinding Wheel

Diameter of grinding wheel

150mm

Grinding wheel center hole

40mm

Power of grinding spindle

5KW

Adjustable range of grinding speed(RPM)

1000～8,000 RPM

Servo motor swing, adjustable swing frequency

0 ~ 60 times/min

X-axis

300mm

Y-axis

100mm

Z-axis

-125mm~125mm

Angle of the grinding wheel spindle in the vertical plane (C-axis)

-25°-25°

B-axis

270°

A-axis

360°

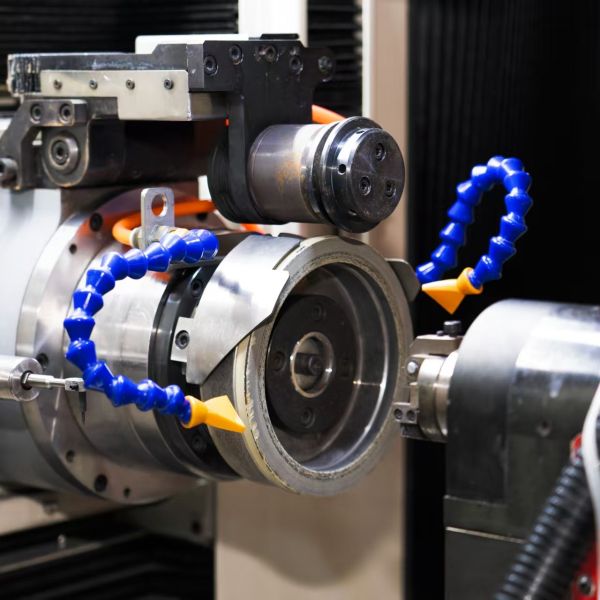

Tool work-head

Linear axis display resolution

0.001mm

Rotation axis display resolution

0.001°

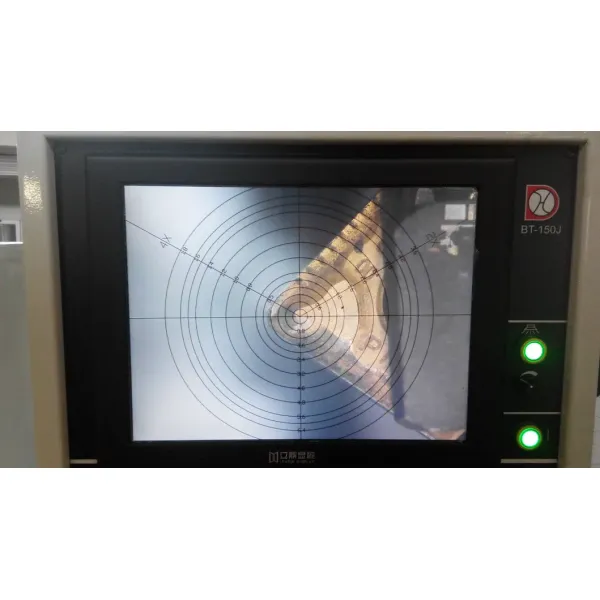

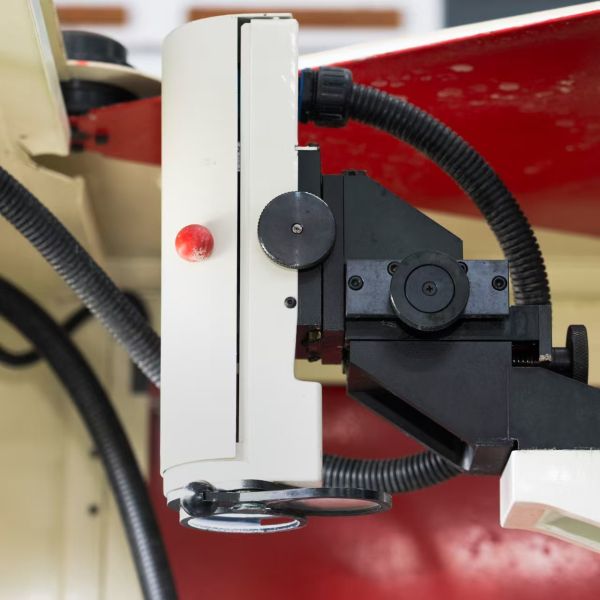

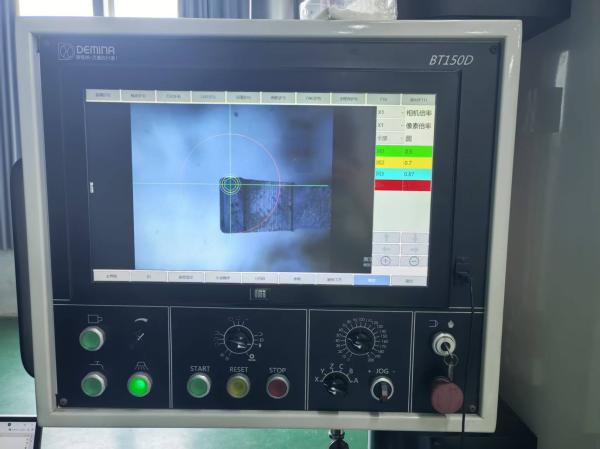

CCD Monitoring System

Max Magnification of Optical Microscope

0.7-4.5times

Magnification of CCD Measuring System, roughly

70times

Dimensions and weight

Coolant Tank with Filter Paper

About70L

Overall Dimensions L*W*H

1890*1650*1980mm

Overall Weight With Coolant Tank

2400kg

Power supply

Electrical Supply

12KW

Voltage Requested

380V/3 Phase/50Hz
