BT-150DS PCD&CBN CNC Grinder Machine for insert chamfering
BT-150DS PCD&CBN CNC Grinder Machine for insert chamfering
BT-150DS PCD&CBN CNC Grinder Machine for insert chamfering
BT-150DS PCD&CBN CNC Grinder Machine for insert chamfering
BT-150DS PCD&CBN CNC Grinder Machine for insert chamfering
BT-150DS PCD&CBN CNC Grinder Machine for insert chamfering
BT-150DS PCD&CBN CNC Grinder Machine for insert chamfering
BT-150DS PCD&CBN CNC Grinder Machine for insert chamfering
BT-150DS PCD&CBN CNC Grinder Machine for insert chamfering
BT-150DS PCD&CBN CNC Grinder Machine for insert chamfering
Specifications
Brand Name :
DEMINA
Model Number :
BT-150DS
Place Of Origin :
CHINA
Certification :
ISO 9001
MOQ :
1
Packaging Details :
WOODEN CASE
Delivery Time :
50 DAYS
Payment Terms :
T/T
Supply Ability :
50 SETS PER YEAR
Maxgrindingdiameter :
Varies By Model
Powersupply :
380V/50Hz Or Customized
Condition :
New
Cylindrical Grinder Type :
Universal Cylindrical Grinder
Machinedimensions :
Depends On Model, Approximately 1890mm X 1650mm X 1980mm
Weight :
Approximately 2400 Kg
Specification :
1890mm*1650mm*1980mm
Automatic Grade :
Semiautomatic
Description

Product Description

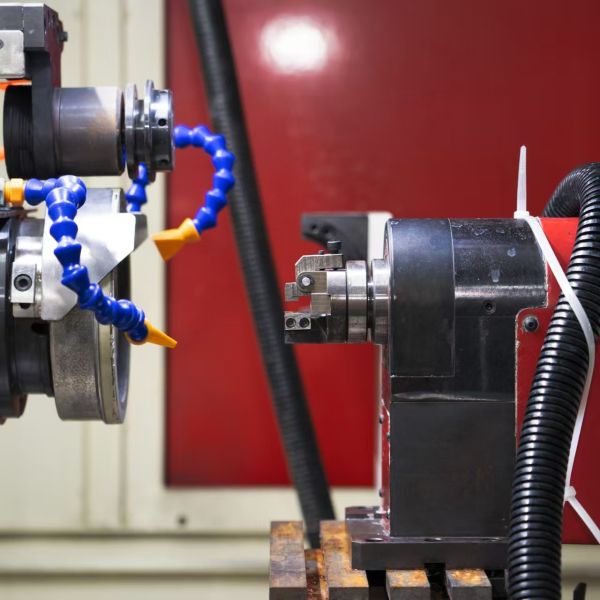

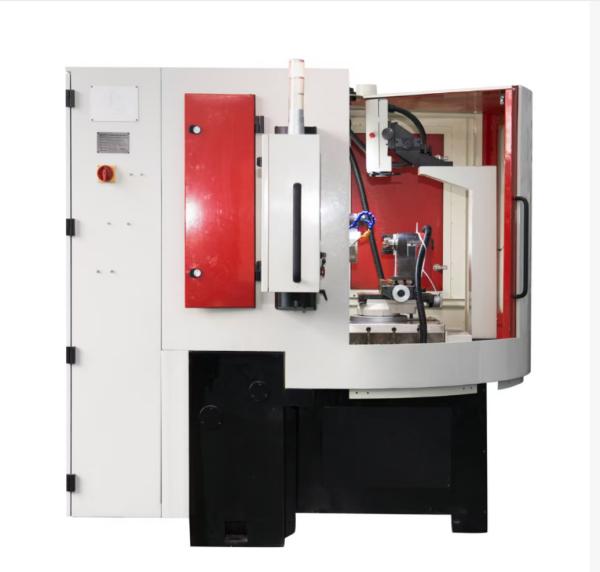

The BT-150DS is a six-axis CNC tool grinder consisting of the wheel oscillation axis (X-axis), workpiece feed axis (Y-axis), wheel vertical movement axis (Z-axis), workpiece horizontal rotation axis (B-axis), wheel tilt axis (C-axis), and workpiece indexing axis (A-axis). This machine is suitable for the production and regrinding of ultra-hard tools such as PCD and CBN inserts in medium to large batches. Once centering is completed, the system achieves the ideal state of "constant-pressure grinding and flexible feed" with the push of a button. The workpiece indexing axis (A-axis) enables the machine to grind rotary tools and adopts the BT30 standard interface, allowing for the selection of corresponding tool holders or mandrels based on the tool type, offering greater flexibility in tool clamping. When paired with specialized insert fixtures, it enables automatic negative chamfering of CBN inserts.


Main Parameters

Spindle and Grinding Wheel

1

Diameter of grinding wheel

150mm

2

Grinding wheel center hole

40mm

3

Power of grinding spindle

5KW

4

Adjustable range of grinding speed(RPM)

1000～8,000 RPM

5

Servo motor swing, adjustable swing frequency

0 ~ 60 times/min

6

X-axis

300mm

7

Y-axis

100mm

8

Z-axis

-125mm~125mm

9

Angle of the grinding wheel spindle in the vertical plane (C-axis)

-25°-25°

10

B-axis

270°

11

A-axis

360°

Tool work-head

12

Linear axis display resolution

0.001mm

13

Rotation axis display resolution

0.001°

CCD Monitoring System

14

Max Magnification of Optical Microscope

0.7-4.5times

15

Magnification of CCD Measuring System, roughly

70times

Dimensions and weight

16

Coolant Tank with Filter Paper

About70L

17

Overall Dimensions L*W*H

1890*1650*1980mm

18

Overall Weight With Coolant Tank

2400kg

Power supply

19

Electrical Supply

12KW

20

Voltage Requested

380V/3 Phase/50Hz
