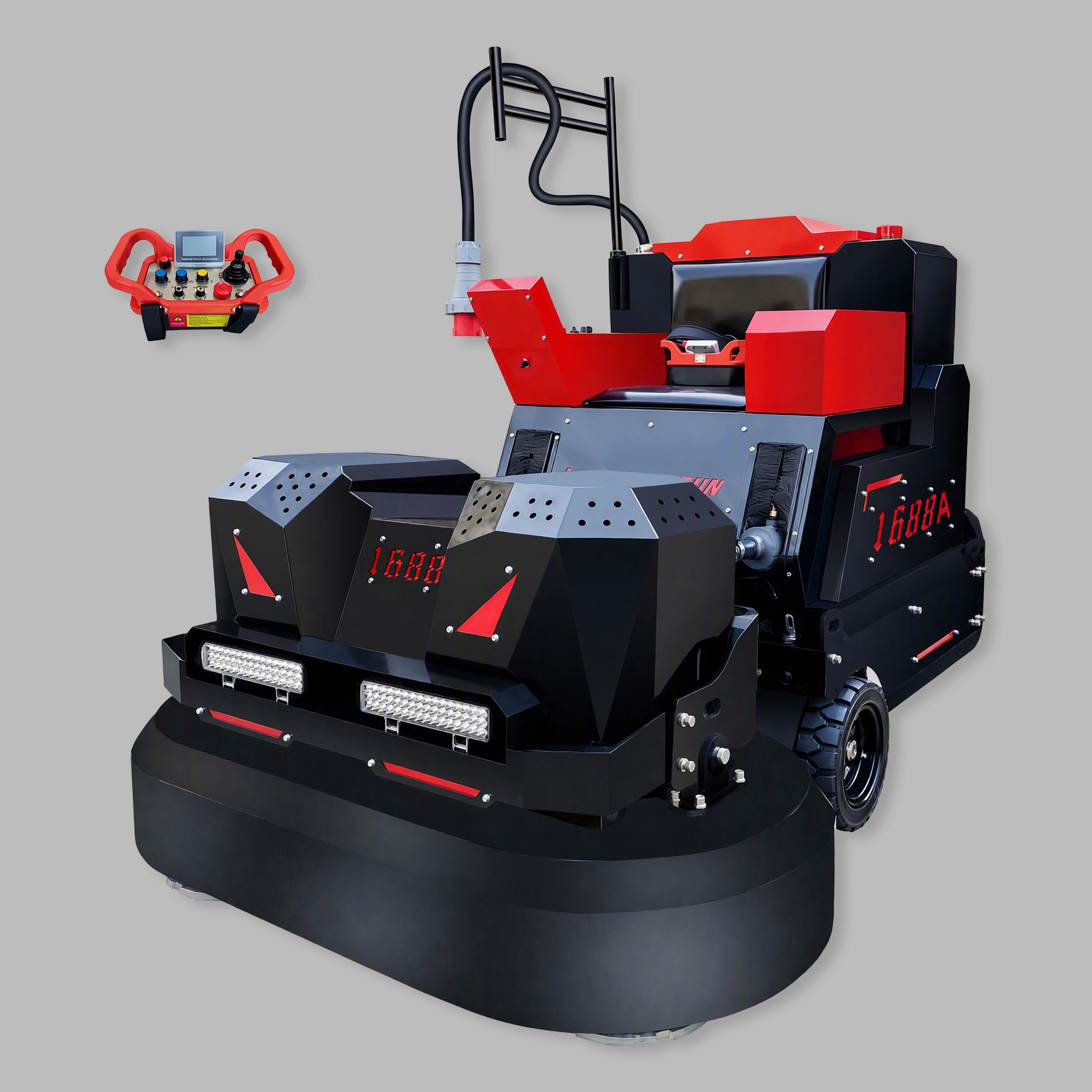

Ride-On Remote Floor Grinder 1600mm | 44kW 1.8-Ton Polisher
Ride-On Remote Floor Grinder 1600mm | 44kW 1.8-Ton Polisher
Specifications
Model Number :
CHINESE RED CZ-1688A
Payment Terms :
TT
Certification :
China Environmental Labeling Type II Certified Product
Brand Name :
Zhejiang Chenze
Place of Origin :
Zhejiang, China
Description

Ride-On Remote Floor Grinder 1600mm | 44kW 1.8-Ton Polisher


The CHINESE RED CZ-1688A is an ultra-heavy-duty ride-on, intelligent remote-controlled floor grinding and polishing machine engineered for large-scale surface preparation. Driven by dual 22 kW servo motors (44 kW total output) and managed by an advanced 44 kW frequency modulator system, it produces an impressive 1.8 tons (1800 kg) of grinding downforce for rapid, single-pass aggregate exposure. Built with a vast 1600 mm working chassis, a 60° hydraulic tilting system for fast disc changes, and a 3 KM power-off self-driving feature, it maximizes daily efficiency while minimizing labor fatigue on large industrial sites.


Ride-On Remote Floor Grinder 1600mm | 44kW 1.8-Ton PolisherRide-On Remote Floor Grinder 1600mm | 44kW 1.8-Ton Polisher

Ride-On Remote Floor Grinder 1600mm | 44kW 1.8-Ton PolisherRide-On Remote Floor Grinder 1600mm | 44kW 1.8-Ton Polisher


Key Specifications


Parameter Specification
Model CHINESE RED CZ-1688A
Operating Mode Ride-On / Remote-Controlled Dual Drive
Servo Motor Output 22 kW × 2 (44 kW Total Output)
Inverter Capacity 44 kW
Grinding Pressure 1.8 Tons (1800 kg Downforce)
Working Width 1600 mm Chassis
Rotation Speed 0 – 1800 rpm Variable Speed
Drive Motors 1500 W × 2 Dual Travel Motors
Travel Speed 0 – 23 m/min Adjustable
Power-Off Endurance 3 KM Self-Driving Battery Range
Disc Replacement Hydraulic Lever Tilting up to 60°
Gearbox Assembly Heavy-Duty Cast Aluminum (24/48 Heads)
Machine Weight 1800 kg
Power Requirements 380V / 87A Three-Phase Current


Applications

  • Mega Industrial Warehouses: Fast, high-flatness leveling for super-flat floor requirements.

  • Hardened Concrete & Emery Floors: Rapid single-pass sand and aggregate exposure on C30–C50 hard concrete.

  • Commercial Polished Concrete: Mirror-finish polishing with multi-step diamond resin pads.

Product Advantages

Unrivaled 1.8-Ton Grinding Cutting Power

Massive downward weight crushes high spots effortlessly and achieves even aggregate exposure in one pass.

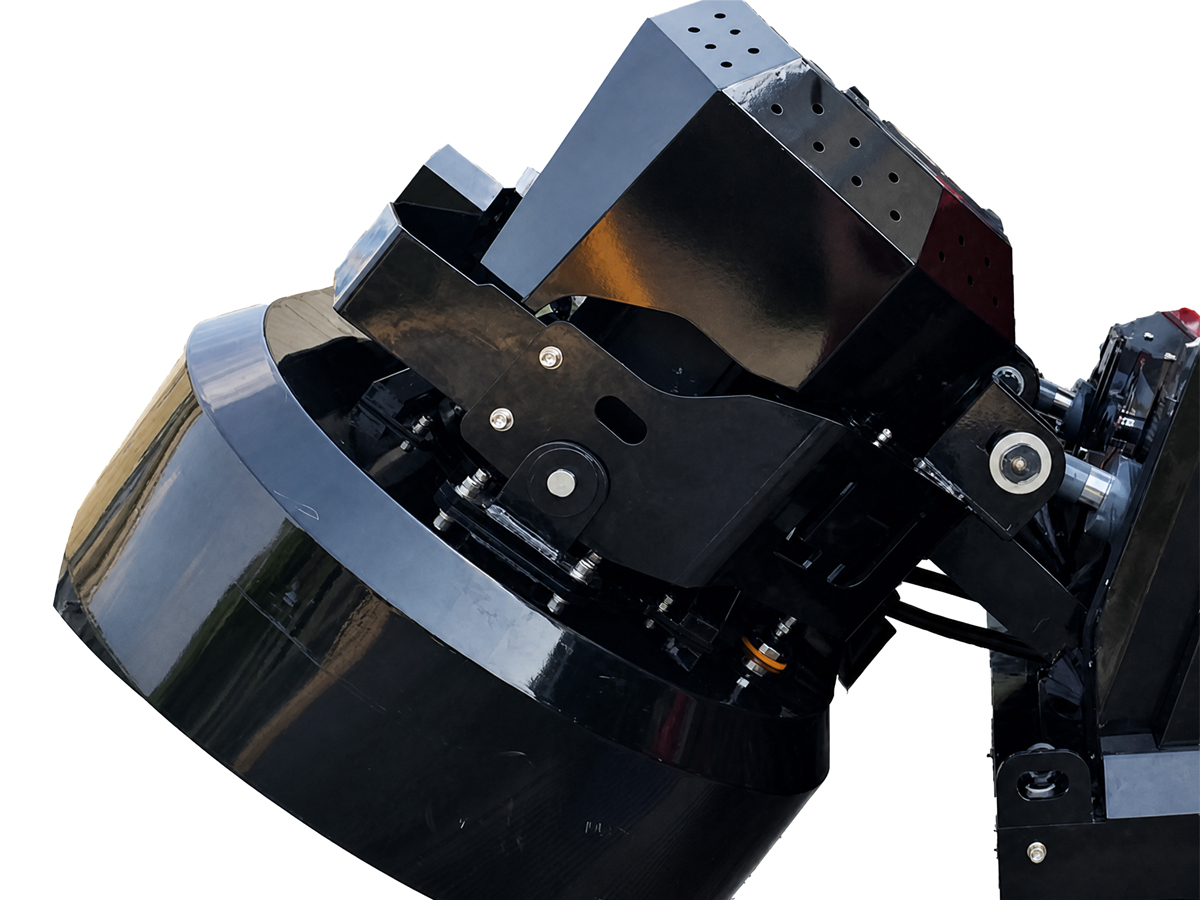

60° Hydraulic Tilting Mechanism

Hydraulic lever lifts the heavy chassis up to 60 degrees, allowing operators to swap diamond tooling comfortably without manual lifting.

3 KM Emergency Power-Off Self-Driving

Onboard battery system enables the machine to drive up to 3 KM and auto-load onto transport trucks even without site power.

1600mm Dual-Drive Efficiency

Covering 1.6 meters in a single pass, the dual 22 kW servo motors deliver steady torque for maximum daily output.
