Ride-On Remote Floor Grinder 55kW | 1.8T 48-Head Polisher
Ride-On Remote Floor Grinder 55kW | 1.8T 48-Head Polisher
Specifications
Model Number :
CHINESE RED CZ-1688
Payment Terms :
TT
Certification :
China Environmental Labeling Type II Certified Product
Brand Name :
Zhejiang Chenze
Place of Origin :
Zhejiang, China
Description

Ride-On Remote Floor Grinder 55kW | 1.8T 48-Head Polisher


The CHINESE RED CZ-1688 represents the next generation of industrial concrete floor preparation equipment. Combining dual ride-on and smart remote-control functionality, this heavy-duty machine is driven by two 22 kW servo motors managed through a heavy-duty 55 kW microchip inverter system. Engineered with an impressive 1.8-ton downward cutting pressure and a massive 48-head disc configuration, it spans across a 1600mm/1700mm chassis to deliver single-pass sand and aggregate exposure. Equipped with a 60° power hydraulic tilting system and a 3 KM power-off self-driving capability, the LJ-1688 simplifies field operations while dramatically increasing daily job site throughput.


Ride-On Remote Floor Grinder 55kW | 1.8T 48-Head PolisherRide-On Remote Floor Grinder 55kW | 1.8T 48-Head PolisherRide-On Remote Floor Grinder 55kW | 1.8T 48-Head PolisherRide-On Remote Floor Grinder 55kW | 1.8T 48-Head Polisher


Key Specifications


Parameter Specification
Model CHINESE RED CZ-1688
Operation Type Ride-On & Smart Remote Control
Motor System 22 kW × 2 Dual Motors (44 kW Total)
Inverter System 55 kW Heavy-Duty Chip-Inverter
Grinding Downforce 1.8 Tons (1800 kg Down Pressure)
Working Width 1600 mm / 1700 mm Wide Coverage

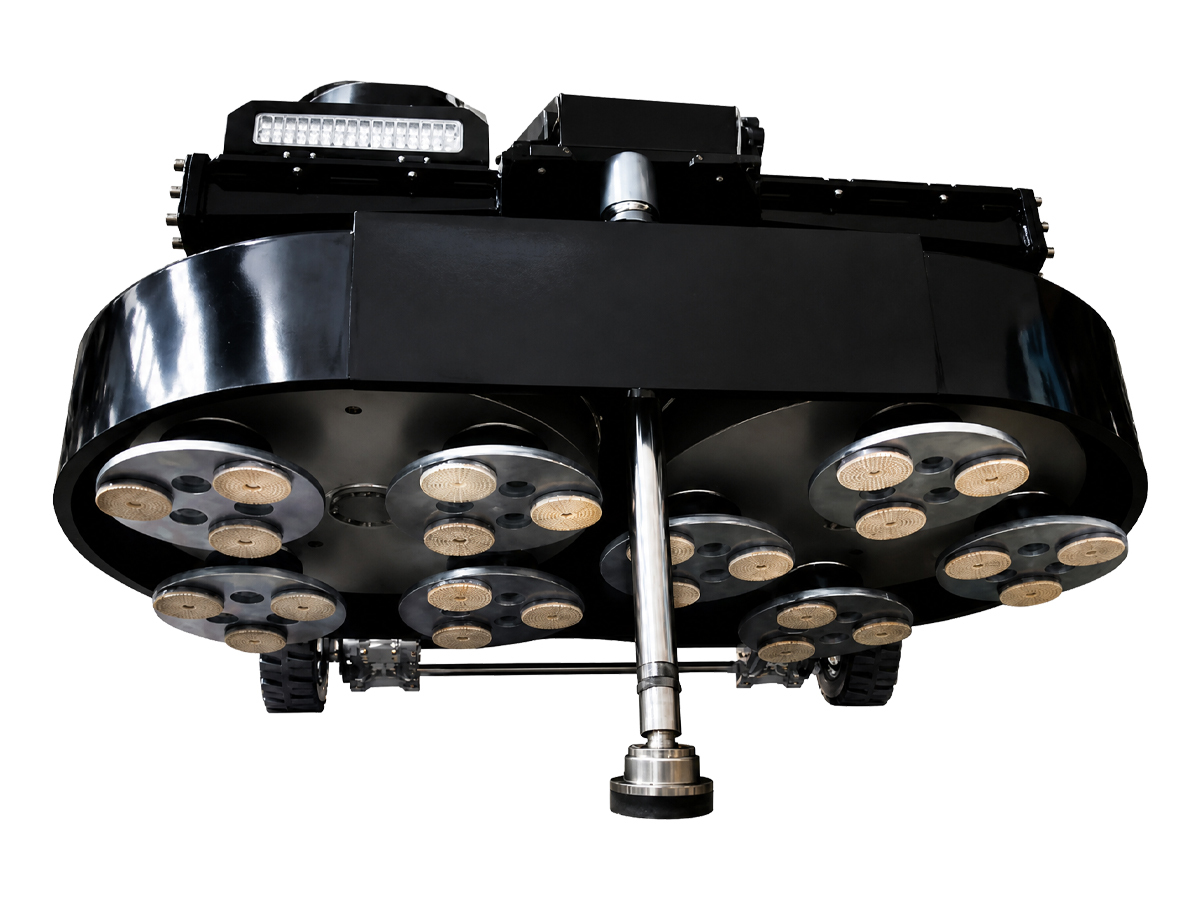

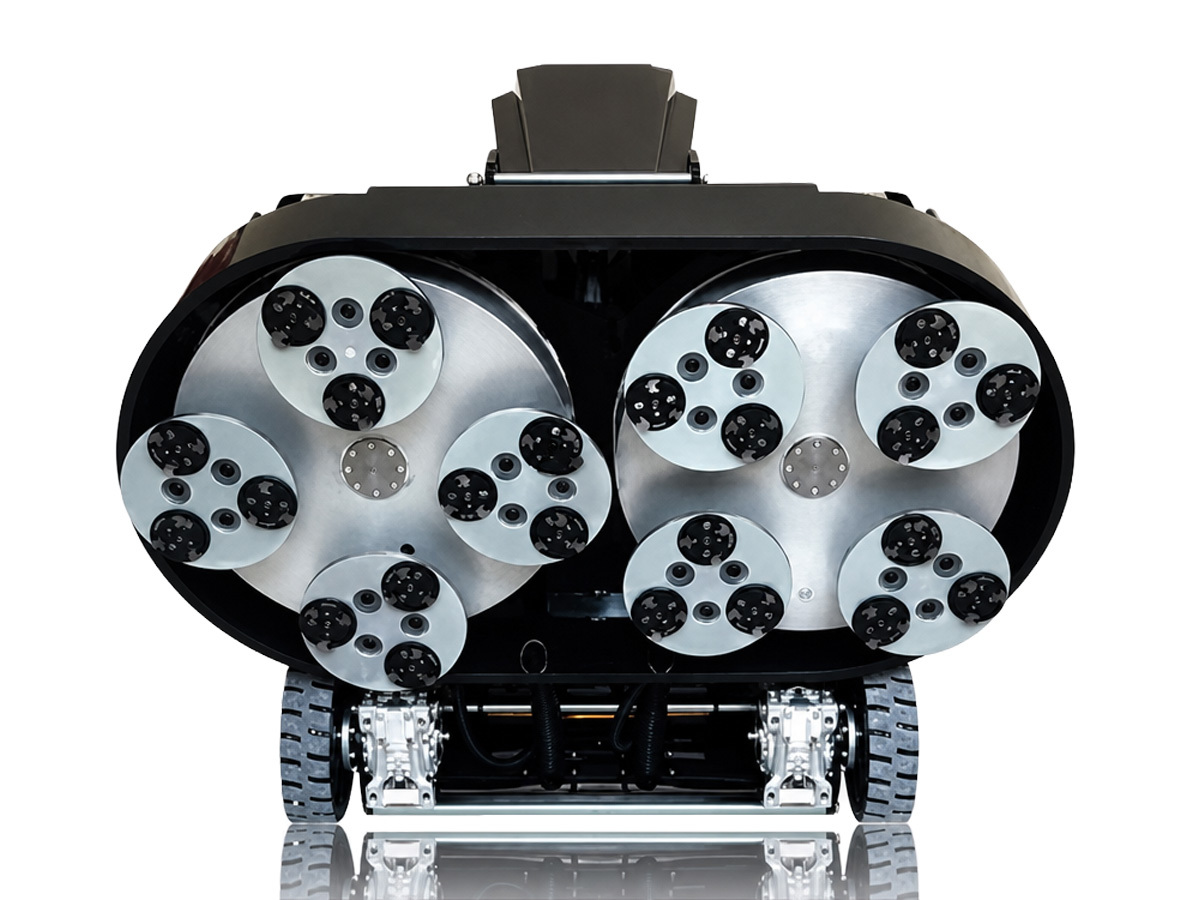

Disc Configuration Dual-Disc 48-Head (Cast Aluminum Gearbox)
Variable RPM 0 – 1800 RPM Stepless Adjustment
Travel Drive 750 W × 2 Dual Drive Motors
Travel Speed 0 – 17 m/min Variable Drive
Emergency Range 3 KM Off-Power Self-Driving Mobility
Tilt Mechanism Hydraulic Lift System Up to 60°
Power Rating 380V Three-Phase / 53A Current
Total Weight 1800 kg


Applications
  • Super-Flat Industrial Warehouses: Delivering high-speed surface flattening on large-scale concrete slabs.
  • Hardened Aggregate & Quartz Floors: Single-pass cutting to achieve consistent and deep sand exposure.
  • Epoxy & Thick Coating Stripping: Rapid removal of aged floor resins, paints, and polyurethane overlays.
Product Advantages

Ultra-Reliable 55 kW Inverter Management

Provides stable current control and protection for double 22 kW motors under high-torque grinding environments.

48-Head High-Density Cutting Matrix

Multi-head planetary layout paired with 1.8-ton pressure guarantees superior flat finishes and rapid stock removal.

60° Hydraulic Power-Tilting Mechanism

Allows workers to tilt the 1.8-ton machine smoothly for quick, effort-free diamond disc replacements.

3 KM Emergency Transportation Mobility

Keeps the machine fully maneuverable via remote control even when disconnected from main power supplies.
