Compact Concrete Edge Grinder 4kW | 400mm 90kg Wall Polisher
Compact Concrete Edge Grinder 4kW | 400mm 90kg Wall Polisher
Specifications
Model Number :
CZ-368
Payment Terms :
TT
Certification :
China Environmental Labeling Type II Certified Product
Brand Name :
Zhejiang Chenze
Place of Origin :
Zhejiang, China
Description

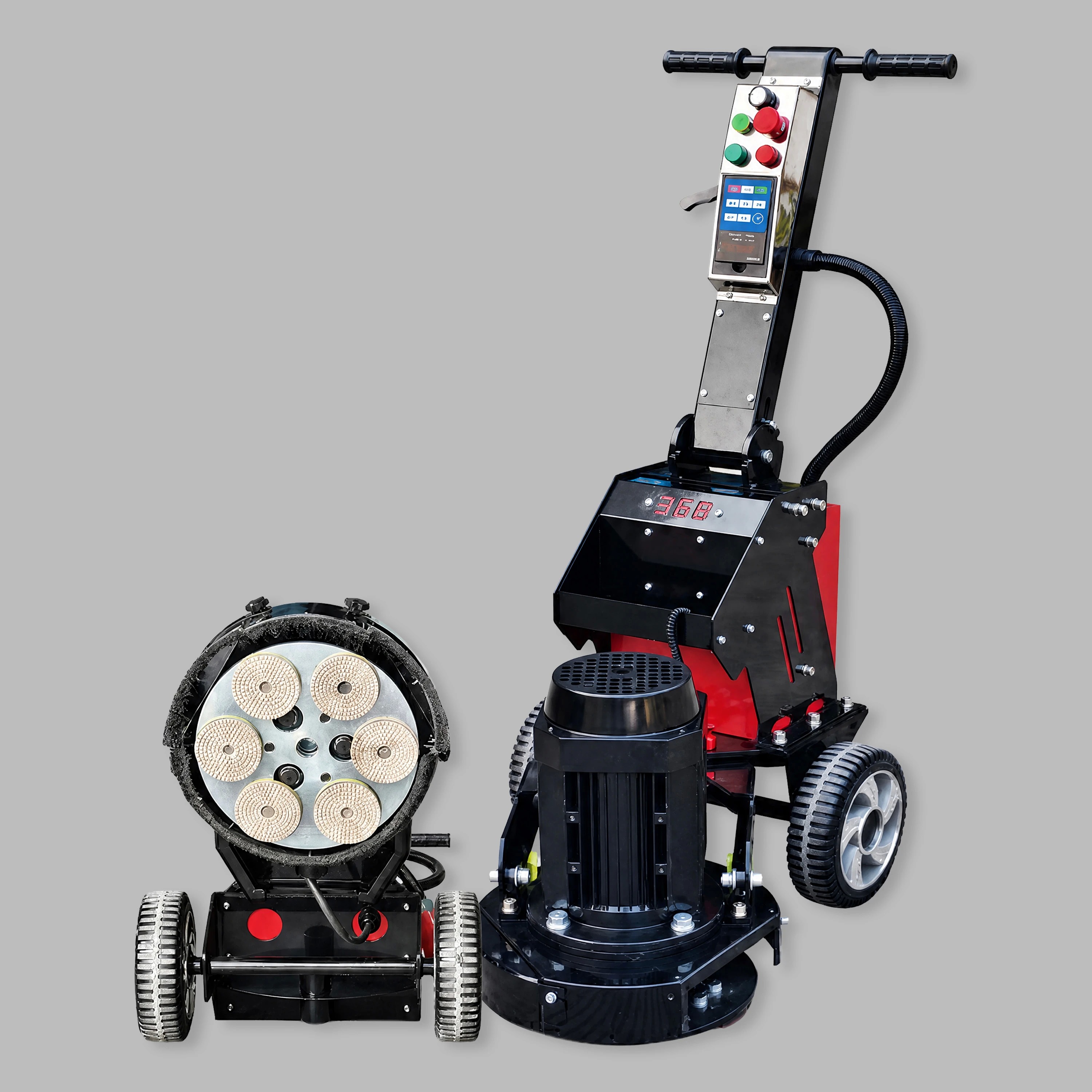

Compact Concrete Edge Grinder 4kW | 400mm 90kg Wall Polisher


The CHINESE RED CZ-368 is an agile, 6-head multifunctional edge grinding machine designed to tackle tight corners, wall perimeters, and narrow spaces with ease. Driven by a 4 kW motor and a 4 kW imported chip inverter, this unit features a 400×400mm operating chassis with detachable side shrouds and adjustable locking pins for seamless left and right wall-flush grinding. Weighing only 90 kg, equipped with a 4-position ergonomic handle, dual-voltage input (220V/380V), and a built-in vacuum port, the CZ-368 offers effortless single-operator mobility and dust-free execution.


Compact Concrete Edge Grinder 4kW | 400mm 90kg Wall PolisherCompact Concrete Edge Grinder 4kW | 400mm 90kg Wall PolisherCompact Concrete Edge Grinder 4kW | 400mm 90kg Wall PolisherCompact Concrete Edge Grinder 4kW | 400mm 90kg Wall Polisher


Key Specifications


Parameter Specification
Model CHINESE RED LJ-368
Working Footprint 400 × 400 mm (40 cm Disc Diameter)
Motor Power 4 kW
Inverter Power 4 kW Imported Chip Inverter
RPM Speed 0 – 1800 RPM (Variable Speed)
Working Voltage 380V / 220V Dual Compatibility
Edge Trimming Mechanism Left/Right Detachable Covers + Pins
Handle Adjustability 4 Ergonomic Angles

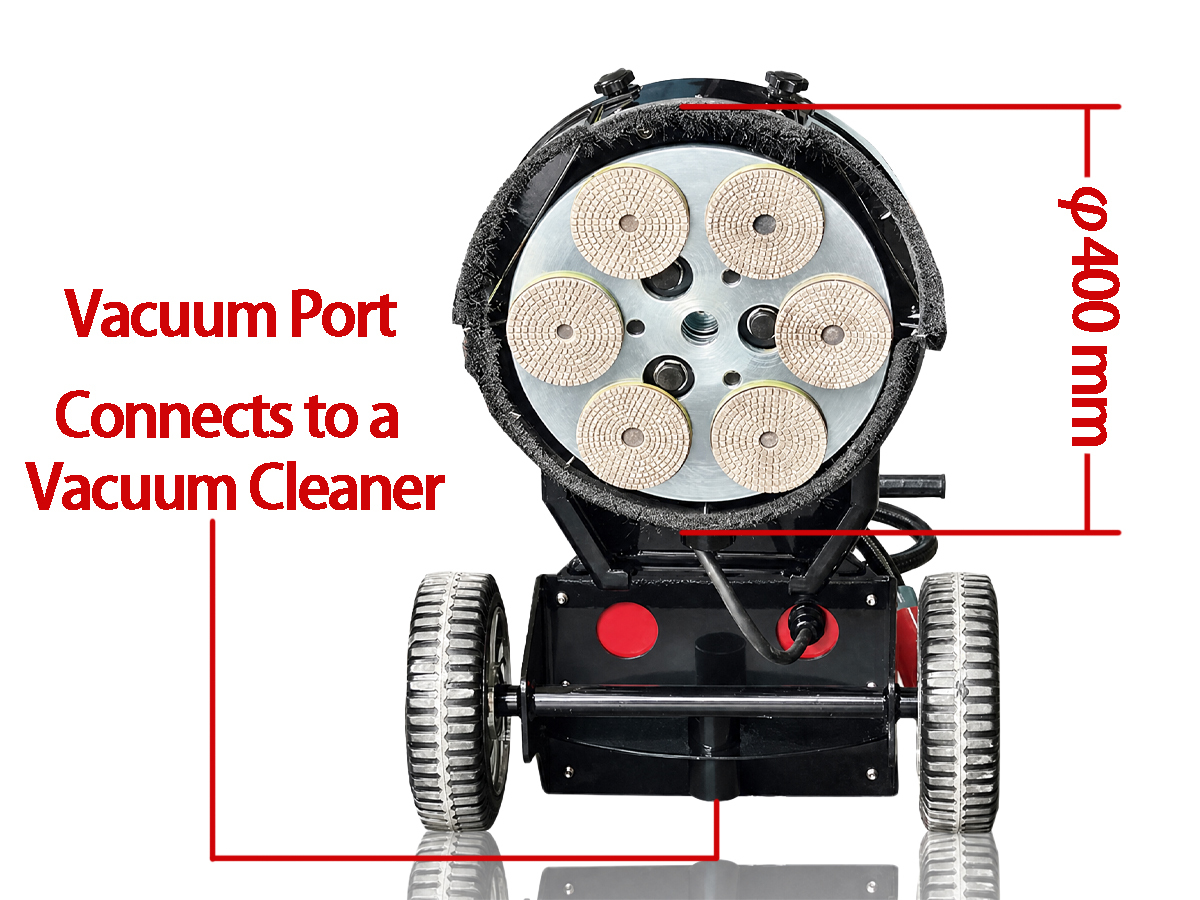

Dust Control Dedicated Vacuum Hose Port
Net Weight 90 kg

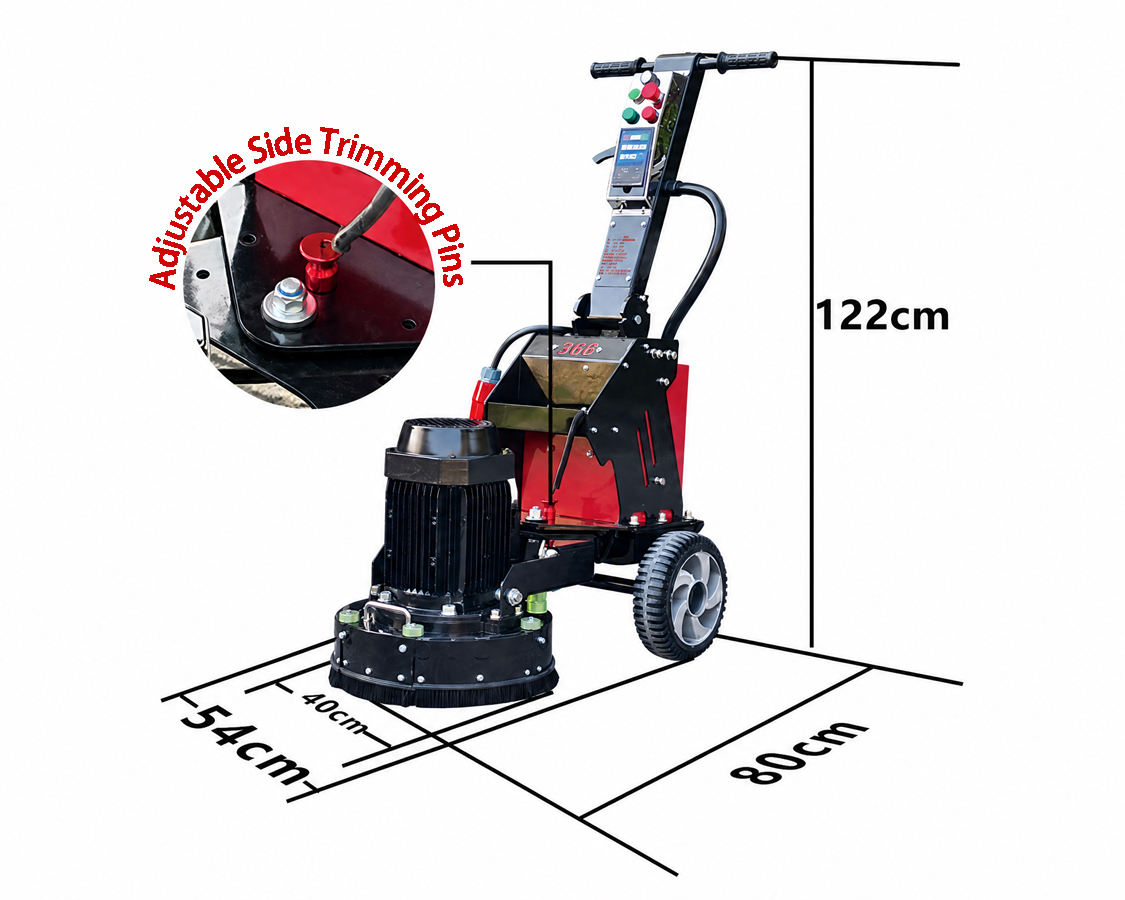

Dimensions 800 × 540 × 1220 mm


Applications

  • Wall-Flush Perimeter Edge Finishing: Detachable shrouds allow flush grinding along left or right walls without leaving unworked gaps.

  • Confined & Residential Sites: Compact 400mm footprint maneuvers easily through narrow doorways, restrooms, and balconies.

  • Staircase & Multi-Level Projects: At just 90 kg with ergonomic lift handles, it can be easily carried up stairs by operators.

Product Advantages

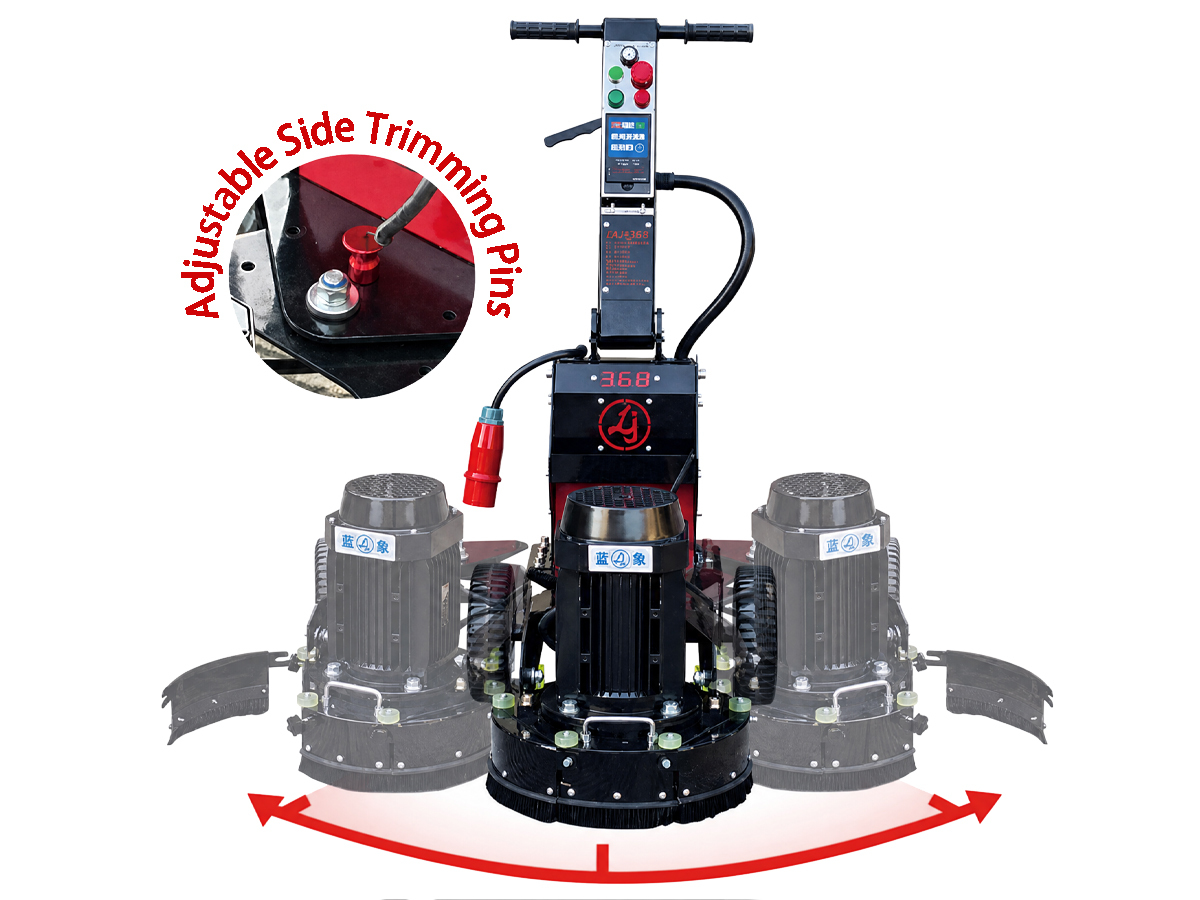

Bi-Directional Flush Edge Performance

Quick-release side covers and location pins enable effortless switching between left and right wall trimming.

Compact 90 kg Frame

Solves loading and transport challenges; can be easily transported by one person in standard utility vehicles.

Flexible 220V/380V Power Options

Connects to standard residential 220V supplies when 380V industrial outlets are unavailable.

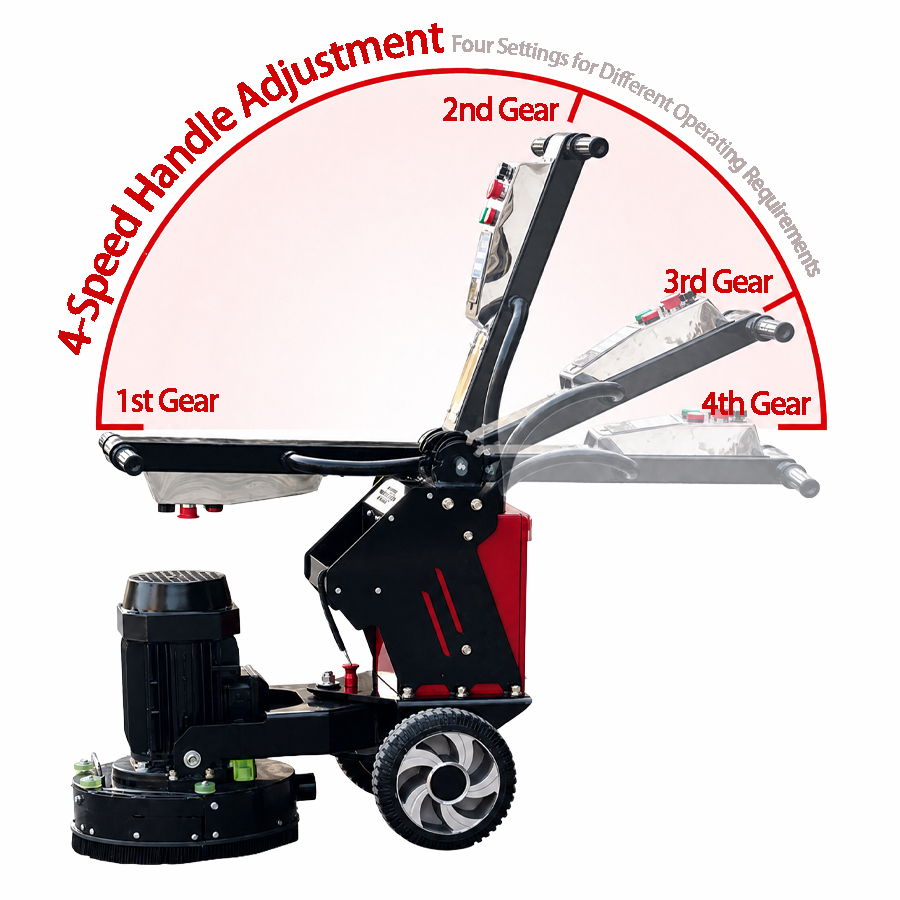

4-Stage Handle Ergonomics

Adjustable handlebar positions optimize leverage for loading, transporting, wall trimming, and manual carrying.
