High Efficiency Vertical Fluid Bed Dryer Granulator | Continuous Fluidized Bed Equipment
High Efficiency Vertical Fluid Bed Dryer Granulator | Continuous Fluidized Bed Equipment
High Efficiency Vertical Fluid Bed Dryer Granulator | Continuous Fluidized Bed Equipment
High Efficiency Vertical Fluid Bed Dryer Granulator | Continuous Fluidized Bed Equipment
Specifications
Model Number :
LPG-500 High Speed Centrifugal Spray Dryer
MOQ :
1 set
Payment Terms :
L/C,T/T,D/P,western union…
Delivery Time :
Shipment arranged within 3 working days after payment.
Atomizer drive form :
Compressed air drive / Mechanical transmission
Spray disc diameter :
50-150 mm
Working principle :
Centrifugal atomization + concurrent hot air drying
Brand Name :
Pengduo
Certification :
iso9000，CE
Place of Origin :
China
Price :
small equipment：5000-10000$ | medium & large equipment：15000-30000$
Packaging Details :
Wooden Case
Atomizer rotation speed :
8000-25000 rpm
Drying tower size :
Customized based on model (1.8×0.93×2.2m ~ 5.5×4.5×7m)
Max electric heating power :
9-99 kW (customizable for large models)
Description
LPG High Speed Centrifugal Industrial Energy Efficient Airflow Extract Mini Lab Atomizer Milk Powder Spray Dryer

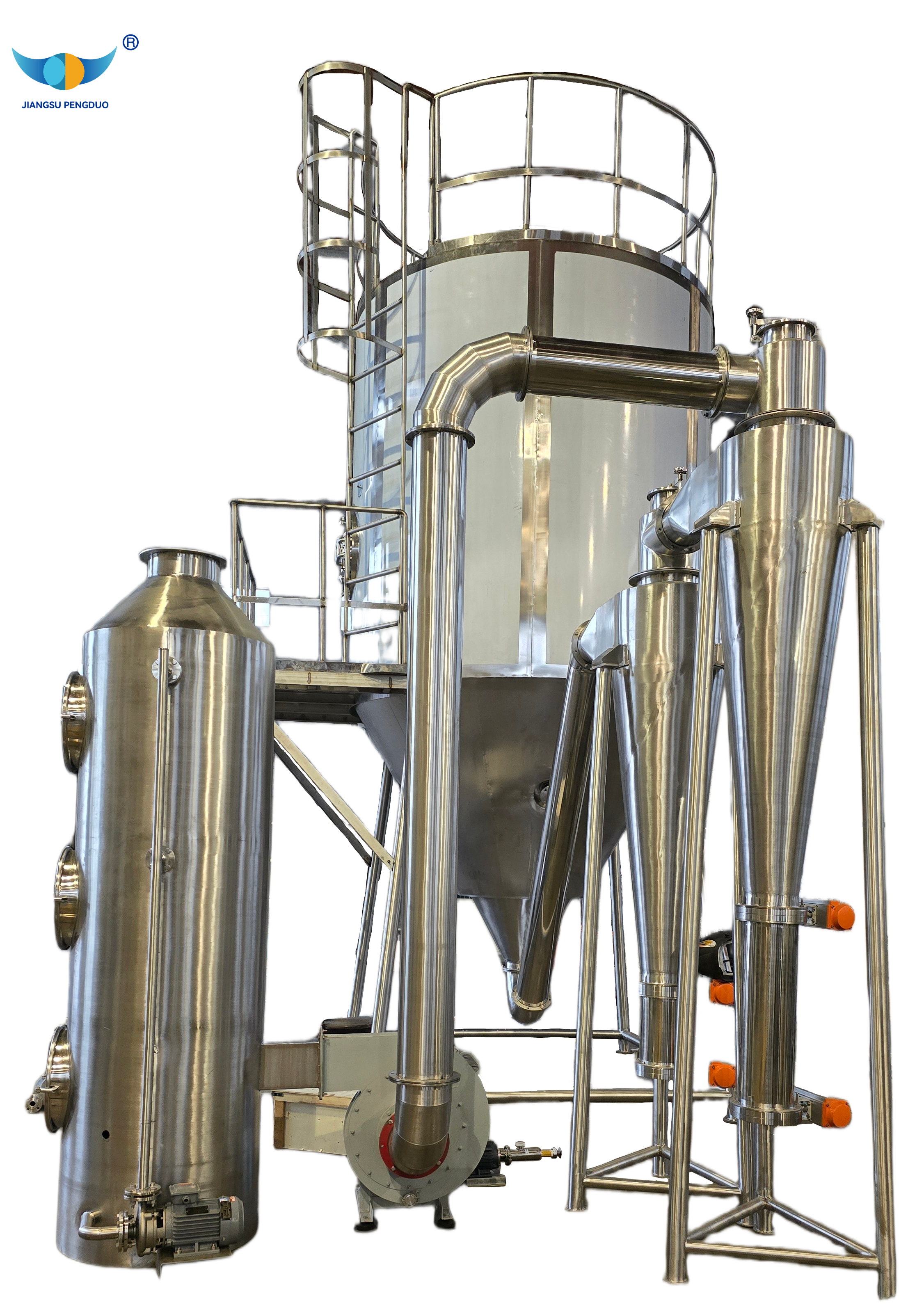

LPG Series High Speed Centrifugal Spray Dryer
High Efficiency Vertical Fluid Bed Dryer Granulator | Continuous Fluidized Bed Equipment
Solutions, emulsions, suspensions and slurries are nebulized into fine droplets in a hot air stream. During their downward passage through the drying chamber, water content is fully evaporated, yielding powdered or granular end products.

Hot air is introduced at the top of the drying tower, and liquid raw materials are conveyed to the tower top via screw pumps or peristaltic pumps. The feed liquid is nebulized into fine droplets by an atomizer. These droplets come into contact with high-temperature hot air, resulting in instantaneous moisture evaporation. The material is dried into finished products in a matter of seconds, which are then discharged from the tower bottom or cyclone separator in line with the equipment layout.

A complete selection of fine powder separation and recovery equipment is offered, covering conventional and combined cyclone separators, bag filters, as well as combined units of cyclone & bag filter, cyclone & wet scrubber, and bag filter & wet scrubber. Equipment selection is tailored to product properties and customer specifications.

To meet diverse production demands, the spray dryer can be integrated with peripheral systems, such as secondary drying and cooling systems (including ZLG vibrating fluidized beds and pneumatic conveying systems), batching systems, powder screening systems and dehumidifiers.
Product Features
  • High drying efficiency: Atomization greatly enlarges the material surface area.
  • Up to 95%–98% of moisture evaporates instantly in the swirling hot air flow.
  • The material is fully dried within seconds, making the unit ideal for heat-sensitive products.
  • Superior product quality with excellent uniformity, fluidity, and solubility
  • High-purity output with consistent quality
  • Simplified production process with easy operation and control
  • Direct drying of liquids with 40-60% moisture content (up to 90% for special materials)
  • No secondary crushing or screening required after drying
  • Adjustable particle size, bulk density, and moisture content via operating parameters
Technical Specifications
Specification LPG-5 LPG-25 LPG-50 LPG-100 LPG-150 LPG-200
Air Inlet Temperature 140-550°C (depending on product and URS)
Air Exhaust Temperature 60-120°C (depending on product and URS)
Water Evaporation Capacity (Kg/h) 5 25 50 100 150 200
Heating Method High-pressure steam, steam + electricity, or various fuels (diesel, natural gas, LPG, coal, etc.), or solid fuel
Drying Tower Diameter (mm) 1100 1800 2150 2560 2860 3200
Overall Dimensions (m) 2*1.4*2.2 5*3*4 6*4*5 8*4*6 8*5*7 10*5*8
Product Yield 95-99.9% (depending on product properties and configurations)
Specification LPG-300 LPG-500 LPG-1000 LPG-2000 LPG-5000 LPG-15000
Air Inlet Temperature 140-550°C (depending on product and URS)
Air Exhaust Temperature 60-120°C (depending on product and URS)
Water Evaporation Capacity (Kg/h) 300 500 1000 2000 5000 15000
Heating Method High-pressure steam, steam + electricity, or various fuels (diesel, natural gas, LPG, coal, etc.), or solid fuel
Drying Tower Diameter (mm) 3600 4300 6000 7600 10000 18000
Overall Dimensions (m) Designed per plant configuration and URS
Product Yield 95-99.9% (depending on product properties and configurations)
Note: These parameters are for reference only and may change according to URS.
Applications
  • Food Industry: Whole milk powder, cocoa milk powder, milk substitute, egg white (yolk), oats, chicken juice, instant tea, seasoning meat, protein, soybean, peanut protein, protein hydrolyzate, corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, pumpkin powder
  • Pharmaceutical Products: Chinese traditional medicine extract (herb extract), medicine colloid, yeast, vitamins, antibiotics, amylase, lipase
  • Plastics Resin: AB, ABS emulsion, urea-formaldehyde resin, phenolic resin, dense plastic (urea) formaldehyde resin, polyethylene, polyvinyl chloride
  • Detergent: Advanced washing powder, normal washing powder, soap powder, soda powder, emulsifiers, brighteners, phosphoric acid agents
  • Chemical Industry: Sodium fluoride (potassium), alkaline dyestuff and pigment, dye intermediates, Mn3O4, formic silica acid, catalyst, sulfuric acid agent, amino acids, silica
  • Ceramic: Aluminum oxide, ceramic tile material, magnesium oxide, talc
