LPG Industrial Spray Dryer High Speed Vacuum Centrifugal 25Kg/H For Milk Powder
LPG Industrial Spray Dryer High Speed Vacuum Centrifugal 25Kg/H For Milk Powder
Specifications
Place of Origin :
China
Brand Name :
Pengduo
Certification :
iso9000，CE
MOQ :
1 set
Packaging Details :
Wooden Case
Delivery Time :
Shipment arranged within 3 working days after payment.
Air inlet temperature :
140-550 °C
Air exhaust temperature :
60-120 °C
Water evaporation capacity :
5-15000 Kg/h
Heating method :
High-pressure steam, steam + electricity, various fuels
Drying tower diameter :
1100-18000 mm
Product yield :
95-99.9%
Price :
small equipment：5000-10000$ | medium & large equipment：15000-30000$
Payment Terms :
L/C, T/T, D/P ,western union…
Description
LPG High Speed Vacuum Centrifugal Industrial Extract Mini Lab Atomizer Milk Powder Spray Dryer
Product Overview

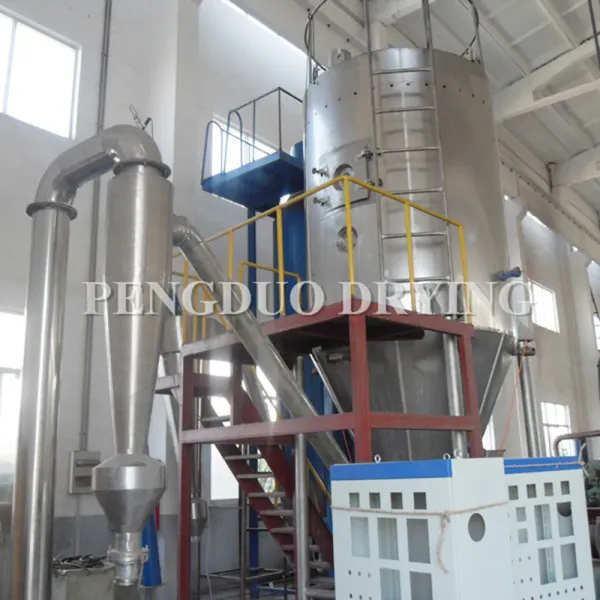

LPG Industrial Spray Dryer High Speed Vacuum Centrifugal 25Kg/H For Milk Powder
LPG Series High Speed Centrifugal Spray Dryer
The solution, emulsion, suspension liquid or slurry are sprayed into fine beads in the hot air, going down from the top of the drying chamber to the bottom, where water evaporates and the product becomes powder or granular material.

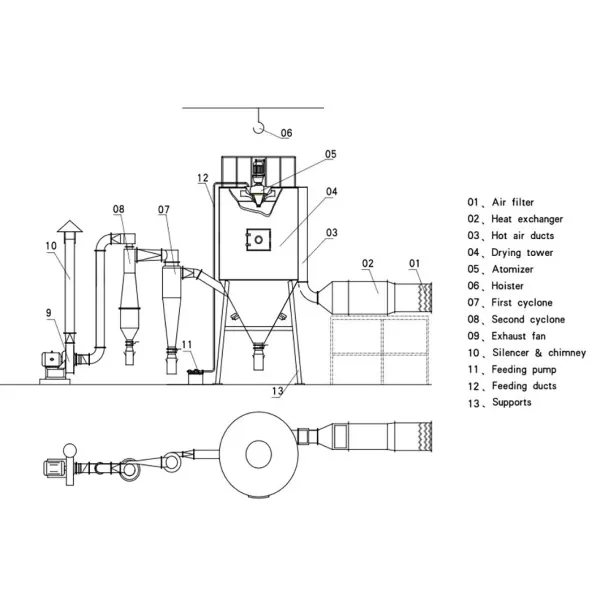

Hot air is induced from the top of the drying tower while material liquid is pumped to the top via screw pump or peristaltic pump. The feeding solution becomes fine beads or small droplets through the atomizer. When droplets meet high-temperature hot air, water evaporates immediately, drying the material into finished product in seconds. The product is discharged from the bottom of the drying tower or from the cyclone (depending on configuration).
Key Features
  • Fast Drying Speed: Atomization significantly increases surface area - 95%-98% of moisture evaporates instantly in hot air spiral stream, completing drying within seconds
  • Superior Product Quality: Excellent uniformity, fluidity, and solubility with high-purity output and consistent quality
  • Simplified Production Process: Easy operation and control
  • Direct Drying Capability: Processes liquids with 40-60% moisture content (up to 90% for special materials) directly into fine powder/granules
  • No Secondary Processing: Eliminates need for crushing or screening after drying
  • Adjustable Parameters: Particle size, bulk density, and moisture content can be controlled by modifying operating parameters
Technical Specifications
Specification LPG-5 LPG-25 LPG-50 LPG-100 LPG-150 LPG-200
Air Inlet Temperature 140-550°C (depending on product and URS)
Air Exhaust Temperature 60-120°C (depending on product and URS)
Water Evaporation Capacity (Kg/h) 5 25 50 100 150 200
Heating Method High-pressure steam, steam + electricity, or various fuels (diesel, natural gas, LPG, coal, etc.)
Drying Tower Diameter (mm) 1100 1800 2150 2560 2860 3200
Overall Dimensions (m) 2*1.4*2.2 5*3*4 6*4*5 8*4*6 8*5*7 10*5*8
Product Yield 95-99.9% (depending on product properties and configurations)
Specification LPG-300 LPG-500 LPG-1000 LPG-2000 LPG-5000 LPG-15000
Air Inlet Temperature 140-550°C (depending on product and URS)
Air Exhaust Temperature 60-120°C (depending on product and URS)
Water Evaporation Capacity (Kg/h) 300 500 1000 2000 5000 15000
Heating Method High-pressure steam, steam + electricity, or various fuels (diesel, natural gas, LPG, coal, etc.)
Drying Tower Diameter (mm) 3600 4300 6000 7600 10000 18000
Overall Dimensions (m) Designed per plant configuration and URS
Product Yield 95-99.9% (depending on product properties and configurations)
Note: These parameters are for reference only and will be adjusted according to URS.
LPG Industrial Spray Dryer High Speed Vacuum Centrifugal 25Kg/H For Milk Powder
Industry Applications
LPG Industrial Spray Dryer High Speed Vacuum Centrifugal 25Kg/H For Milk Powder
  • Food Industry: Whole milk powder, cocoa milk powder, milk substitute, egg white (yolk), oats, chicken juice, instant tea, seasoning meat, protein, soybean, peanut protein, protein hydrolyzate, corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, pumpkin powder
  • Pharmaceutical Products: Chinese traditional medicine extract (herb extract), medicine colloid, yeast, vitamins, antibiotics, amylase, lipase
  • Plastics Resin: AB, ABS emulsion, urea-formaldehyde resin, phenolic resin, dense plastic (urea) formaldehyde resin, polyethylene, polyvinyl chloride
  • Detergent: Advanced washing powder, normal washing powder, soap powder, soda powder, emulsifiers, brighteners, phosphoric acid agents
  • Chemical Industry: Sodium fluoride (potassium), alkaline dyestuff and pigment, dye intermediates, Mn3O4, formic silica acid, catalyst, sulfuric acid agent, amino acids, silica
  • Ceramic: Aluminum oxide, ceramic tile material, magnesium oxide, talc
LPG Industrial Spray Dryer High Speed Vacuum Centrifugal 25Kg/H For Milk Powder
Company Advantages
LPG Industrial Spray Dryer High Speed Vacuum Centrifugal 25Kg/H For Milk Powder
Different kinds of products are available in our company. We're pleased to receive your inquiry and will reply as soon as possible. We adhere to the principle of "quality first, service first, continuous improvement and innovation to meet customer requirements" for management and "zero defect, zero complaints" as our quality objective.
LPG Industrial Spray Dryer High Speed Vacuum Centrifugal 25Kg/H For Milk Powder
Certifications
LPG Industrial Spray Dryer High Speed Vacuum Centrifugal 25Kg/H For Milk Powder
Frequently Asked Questions
1. What kinds of payment terms can you accept?
The most commonly used payment terms are T/T, L/C, Paypal, Western Union, etc.
2. What's your delivery time?
Usually we arrange shipment within 15-45 days after confirming the order.
3. How about the packing?
Standard packing is provided, and we also accept customized packaging.
4. What is the Minimum Order Quantity?
Different products have different MOQ requirements.
5. How about the validity of quotation?
Typically, quotations remain valid for one month, but this may vary with market conditions.
6. What documents do you provide?
We typically provide Commercial Invoice, Packing List, Bill of Lading, COA, and Certificate of Origin. Special market requirements can be accommodated.
