20A Rated Current Barrier Terminal Block with PA66 Housing and 8.25mm Pitch for Secure Power Connections
20A Rated Current Barrier Terminal Block with PA66 Housing and 8.25mm Pitch for Secure Power Connections
Specifications
Brand Name :
Jrkconn
Model Number :
JRK35CM-8.25
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Contact Us
Price :
Contact us
Payment Terms :
T/T,MoneyGram,D/P,D/A,L/C
Supply Ability :
1000000 per week
Delivery Time :
7-14 working days
Packaging Details :
PE Bag Packaging
Rated Current :
20 Amps
Pitch :
8.25mm
Poles :
2P-24P
Housing :
PA66
Screw :
M3 Steel Zinc Plated
Conductor Cross Section :
2.5 mm²
Description
20A Current Terminal Block Barrier Terminal Block Power Terminal Block Connector
A barrier terminal block is an electrical connector designed to securely join multiple wires to a power source or circuit. Featuring raised insulating barriers between each terminal, it prevents accidental contact, short circuits, and electrical leakage. These terminal blocks are commonly mounted on PCBs, panels, or chassis and are ideal for applications requiring high current, higher voltage, and enhanced safety.
Manufacturing Excellence
  • 13+ Years of Manufacturing Expertise - Extensive experience in terminal block production with refined, reliable manufacturing processes
  • 100% Quality Inspection - Every product undergoes strict inspection to ensure consistent quality, safety, and dependable performance
  • One-Stop Supply Chain Solution - Complete service from product sourcing and design support to production and final delivery
  • Professional Technical Support - Experienced engineering team providing responsive support and customized technical drawings
Product Specifications
Model Number JRK35CM Pin Header Brass, Tin plating
Type Barrier Terminal Blocks Housing Material Polyamide (PA66), Nylon 6/6
Pitch 7.62mm, 8.25mm, 9.5mm, 10.0mm, 11.0mm Rated Voltage 300V
Poles 2P-24P Withstanding Voltage AC 2000V / 1Min
Screws Material M3, Steel, Zinc Plating Rated Current 20A
Wire Range 22-14 AWG Max. Torque Value 8kg.cm
Temp Range -40℃ ~ +105℃ Mounting Type Through Hole
Color Black Application Industrial Control Systems, HVAC Systems, Power Supply, Transportation, Consumer Electronics, Telecommunications
Note: The actual product color may vary slightly from images due to monitor settings. All measurements are taken manually and may have slight deviations.

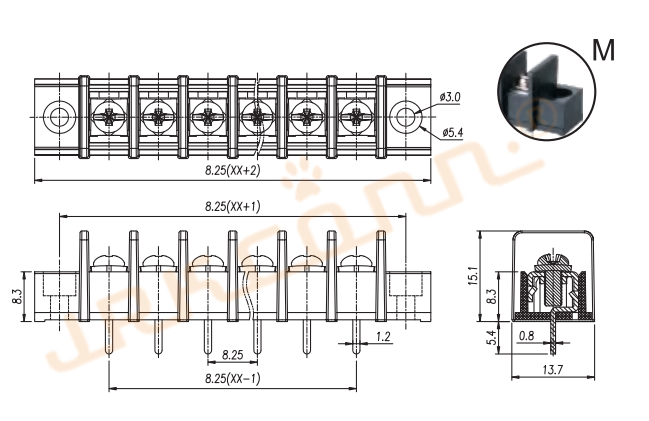

Technical Data of JRK35CM Terminal Block
20A Rated Current Barrier Terminal Block with PA66 Housing and 8.25mm Pitch for Secure Power Connections
Packaging & Delivery
Selling Units Package Port
Single item PE bag + carton box packing Shenzhen
Quantity (pcs) Samples Estimated delivery time (business day)
1 - 100K 3 ~ 7 15
Custom Manufacturing Process
20A Rated Current Barrier Terminal Block with PA66 Housing and 8.25mm Pitch for Secure Power Connections
Frequently Asked Questions
Q1. Can I have a sample order before placing a purchase order?
A: Samples are available for testing; customers pay only the express courier cost.
Q2. What is the sample lead time?
A: Standard samples take 3-7 working days; customized samples take 7-15 working days.
Q3. Do you have any MOQ Limit?
A: Low MOQ available; 1 piece for sample checking.
Q4. Can I make personalized/customized products?
A: Yes, we accept custom orders based on your drawings or samples.
Q5. How do you ship the goods, and what is the shipping time?
A: We ship via DHL, UPS, FedEx, TNT, or your freight forwarder, typically arriving in 3-7 days.
