6.95 Inch IPS TFT LCD Display Module For Security System & Embedded Monitoring
6.95 Inch IPS TFT LCD Display Module For Security System & Embedded Monitoring
6.95 Inch IPS TFT LCD Display Module For Security System & Embedded Monitoring
6.95 Inch IPS TFT LCD Display Module For Security System & Embedded Monitoring
Specifications
Size :
6.95 Inch
Model Number :
JT-6.95IPSWSSS
MOQ :
5pcs
Dispiay Mode :
IPS
Packaging Details :
Standard Exportation Package
CTP Structure :
GFF/GG
Brand Name :
Jingtai
Supply Ability :
2000K Pcs Per Month
Resolution :
600 * 1024
Luminance :
250 cd/m²(Typ) 450 cd/m²(Typ)
Place of Origin :
Shenzhen/China
CTP Interface :
12C/USB
Price :
1-20
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Viewing Angle :
85/85/85/85
Certification :
ISO9001 / ISO14000
Delivery Time :
1-5 weeks
Interface Definition :
MIPI
Description

6.95 Inch IPS TFT LCD Display Module for Security System & Embedded Monitoring

Product Introduction

This 6.95 Inch IPS TFT LCD Display features a 600×1024 resolution and is designed for Security System Display, Embedded Display and intelligent monitoring applications. The vertical screen format allows efficient presentation of real-time information, operating interfaces and status notifications. Combined with IPS viewing technology and MIPI Interface support, the display module is suitable for modern security terminals and control equipment.


Visual Performance

• IPS TFT LCD technology provides wide viewing angles of 85/85/85/85.
• 600×1024 resolution supports clear presentation of monitoring information and system interfaces.
• Normally Black display mode helps deliver stable visual performance.
• Optional brightness versions of 250 cd/m² and 450 cd/m² are available for different installation environments.
• Suitable for Security System Display applications requiring reliable image presentation.


System Integration

The display module adopts a MIPI Interface design, supporting efficient data transmission and integration with embedded platforms. The compact structure allows flexible installation within security equipment and intelligent control terminals. The interface configuration helps simplify product development while supporting stable system operation.


Security Application Scenarios

• Suitable for Security System Display terminals used for access control and monitoring systems.
• Can be integrated into intelligent security equipment for status display and operation management.
• Applicable to Embedded Display devices requiring real-time information presentation.
• Suitable for smart building control systems and security management terminals.
• Can be used in monitoring equipment requiring compact dimensions and reliable display performance.

The 6.95 Inch IPS TFT LCD Display combines a vertical screen layout, flexible integration capability and stable display performance, providing an effective display solution for Security System Display, Embedded Display and intelligent monitoring applications.

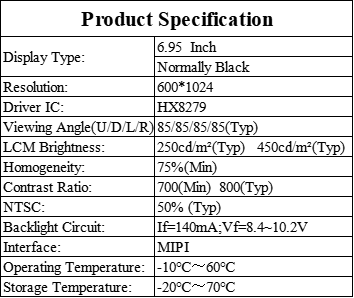

Product Specifications

Number Of Pixels

600 * 1024pixels

Active Area

89.28 * 152.37mm

Module Outline

95*163.3*2.55mm

Aspect Ratio

16:9

Display Model

Normally Black

Viewing Angle(CR>10)

85/85/85/85

Contrast Ratio

700(Min) 800 (Typ)

NTSC

50%Typ

LCM Brightness

250 cd/m²(Typ) 450 cd/m²(Typ)

Interface

MIPI

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

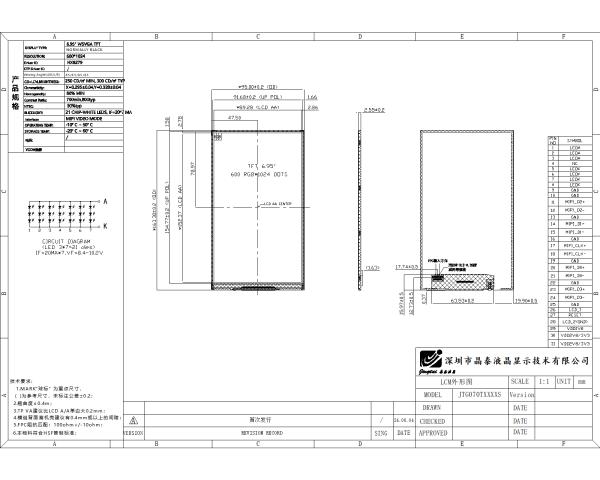

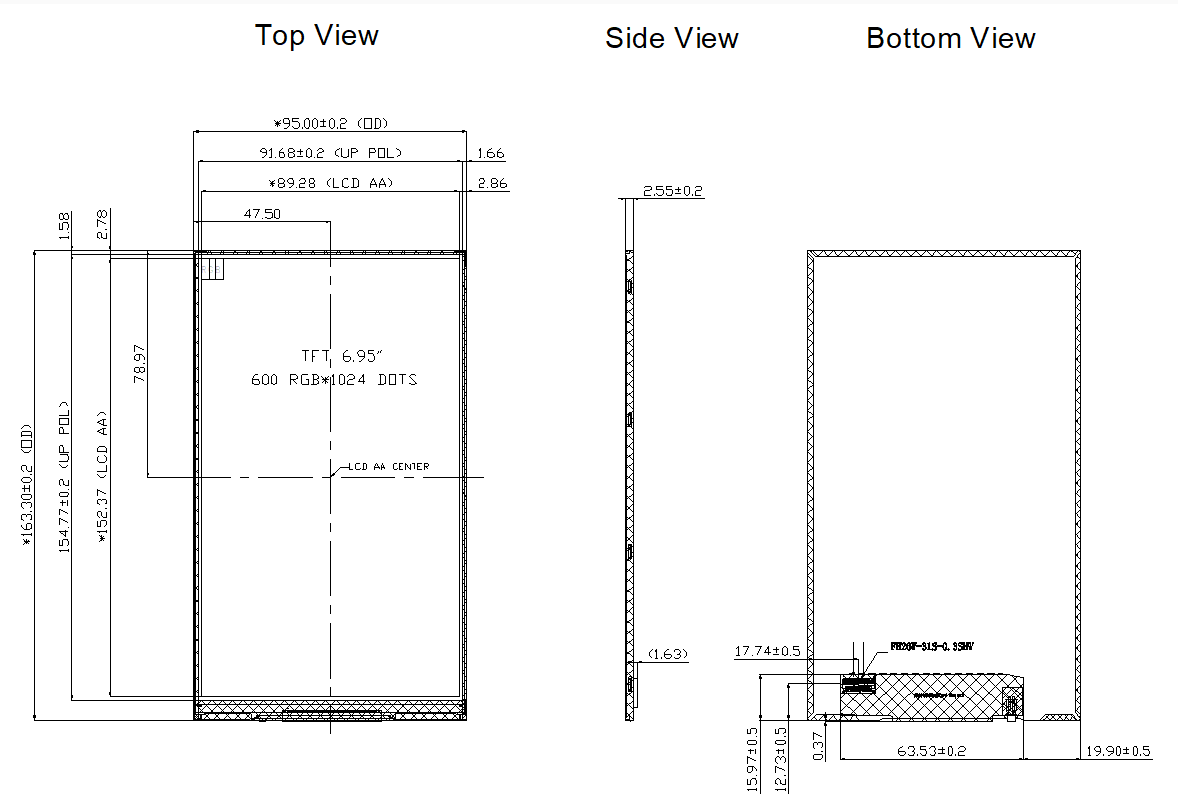

Module Drawing

6.95 Inch IPS TFT LCD Display Module For Security System & Embedded Monitoring

6.95 Inch IPS TFT LCD Display Module For Security System & Embedded Monitoring

6.95 Inch IPS TFT LCD Display Module For Security System & Embedded Monitoring
