5.5 Inch IPS TFT LCD Display Module 720x1280 MIPI For Security Monitoring Systems
5.5 Inch IPS TFT LCD Display Module 720x1280 MIPI For Security Monitoring Systems
5.5 Inch IPS TFT LCD Display Module 720x1280 MIPI For Security Monitoring Systems
5.5 Inch IPS TFT LCD Display Module 720x1280 MIPI For Security Monitoring Systems
Specifications
Model Number :
JT-5.5IPSHDSS
Place of Origin :
Shenzhen/China
Viewing Angle :
80/80/80/80
MOQ :
5pcs
Packaging Details :
Standard Exportation Package
CTP Interface :
12C
Luminance :
250 cd/m²(Typ) 500 cd/m²(Typ)
Interface Definition :
MIPI
Resolution :
720 * 1280
Supply Ability :
2000K Pcs Per Month
Size :
5.5 Inch
Dispiay Mode :
IPS
Certification :
ISO9001 / ISO14000
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
CTP Structure :
GF/GFF
Brand Name :
Jingtai
Price :
1-20
Description

5.5 Inch IPS TFT LCD Display Module 720x1280 MIPI For Security Monitoring Systems

Product Introduction

This 5.5 Inch IPS TFT LCD Display Module features a 720×1280 resolution and a compact portrait display format. Designed for Security Monitoring Systems and Embedded Display applications, the module combines IPS viewing technology with a MIPI interface to support clear information presentation in modern control terminals and monitoring equipment. Its slim structure makes it suitable for devices requiring space-efficient display integration.


Display Features

• 720×1280 resolution provides clear presentation of images, icons and operating information.

• IPS TFT LCD technology supports wide viewing angles for improved visibility from different positions.

• Normally Black display mode helps deliver stable visual performance.

• 72% NTSC color performance supports clear and balanced image display.

• Optional brightness configurations are available for different installation environments.


Integration Benefits

• MIPI Interface supports integration with compatible embedded platforms.

• Compact module dimensions help reduce installation space requirements.

• Suitable for products requiring portrait screen layouts and efficient information display.

• Operating temperature range from -20℃ to +70℃ supports use in various working environments.

• Designed for long-term integration into monitoring and control equipment.


Application Areas

• Suitable for Security Monitoring Systems that require clear status display and user interaction functions.

• Can be integrated into access control terminals, monitoring panels and security management devices.

• Applicable to Embedded Display equipment used for system control and information visualization.

• Suitable for intelligent monitoring products requiring compact dimensions and portrait screen layouts.

• Can be used in smart building management equipment and related security control applications.

The 5.5 Inch IPS TFT LCD Display Module combines a 720×1280 resolution, MIPI Interface connectivity and a compact structure, making it a practical display solution for Security Monitoring Systems, Embedded Display devices and intelligent control terminals requiring reliable visual performance.

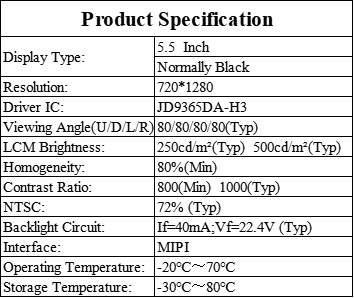

Product Specifications

Number Of Pixels

720 * 1280pixels

Active Area

68.04 * 120.96mm

Module Outline

70.24*127.9*1.44mm

Aspect Ratio

16:9

Display Model

Normally Black

Viewing Angle(CR>10)

80/80/80/80

Contrast Ratio

800(Min) 1000 (Typ)

NTSC

72%Typ

LCM Brightness

250 cd/m²(Typ) 500 cd/m²(Typ)

Interface

MIPI

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

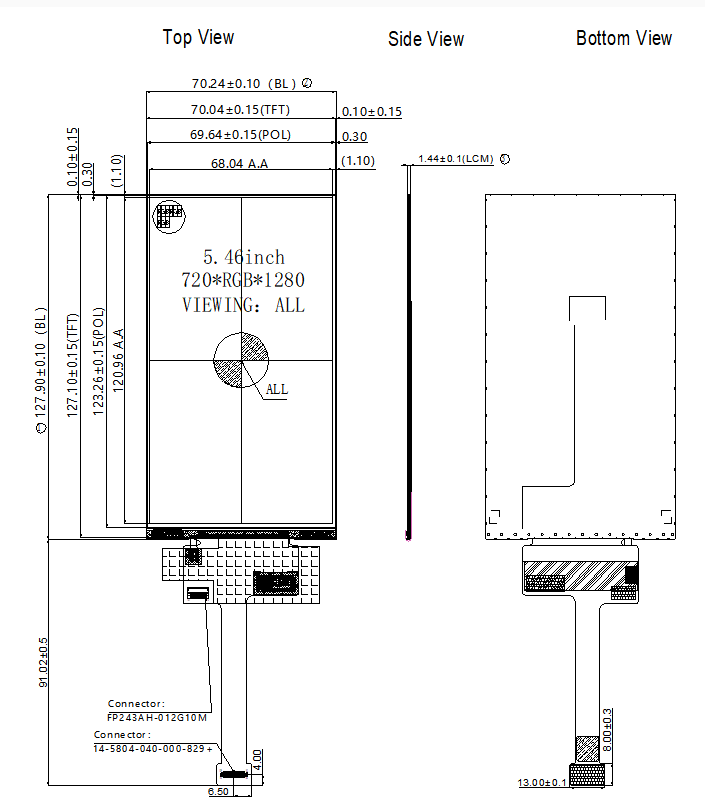

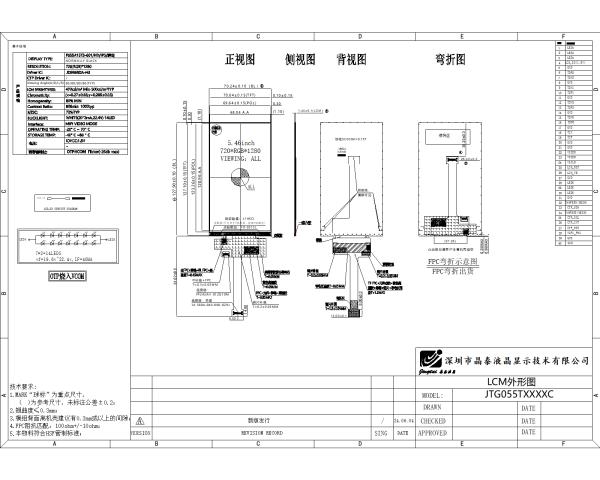

5.5 Inch IPS TFT LCD Display Module Drawing


5.5 Inch IPS TFT LCD Display Module 720x1280 MIPI For Security Monitoring Systems

5.5 Inch IPS TFT LCD Display Module 720x1280 MIPI For Security Monitoring Systems

5.5 Inch IPS TFT LCD Display Module 720x1280 MIPI For Security Monitoring Systems
