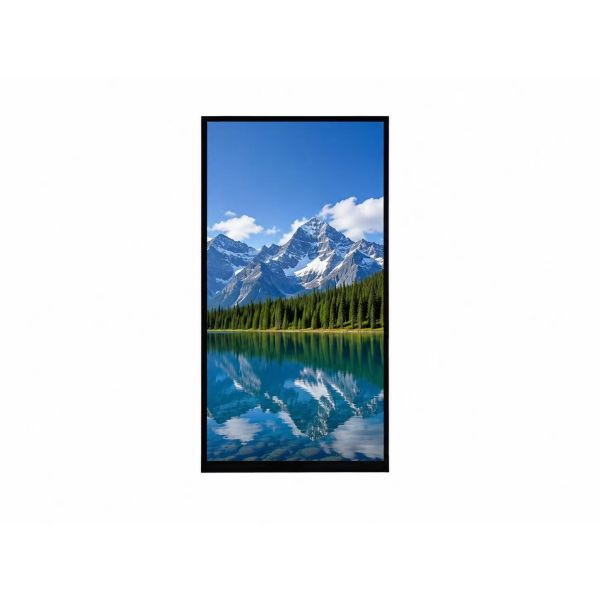

5.5 Inch IPS TFT LCD Display Module 720x1440 High Brightness MIPI for Security Systems

Product Introduction

This 5.5 inch IPS TFT LCD display module features a 720×1440 resolution and an 18:9 aspect ratio, making it suitable for security system display applications and other embedded display products that use a vertical screen layout. The module is designed for information display, status pages and control interfaces where a tall screen format is more practical than a standard horizontal display. With a compact structure and thin module outline, it can be integrated into security terminals and related display equipment with limited installation space.

Visual Performance

• IPS TFT LCD technology supports an 80/80/80/80 viewing angle for consistent screen visibility.
• 720×1440 resolution provides clear display of menus, icons and monitoring information.
• Normally Black display mode helps maintain stable image presentation.
• Typical contrast ratio of 1000:1 supports general display use.
• NTSC color gamut of 70.8% typical is suitable for normal indoor display applications.
• Brightness options of 1000 cd/m² and 1500 cd/m² are available for projects that need higher screen visibility.

Interface And Structure

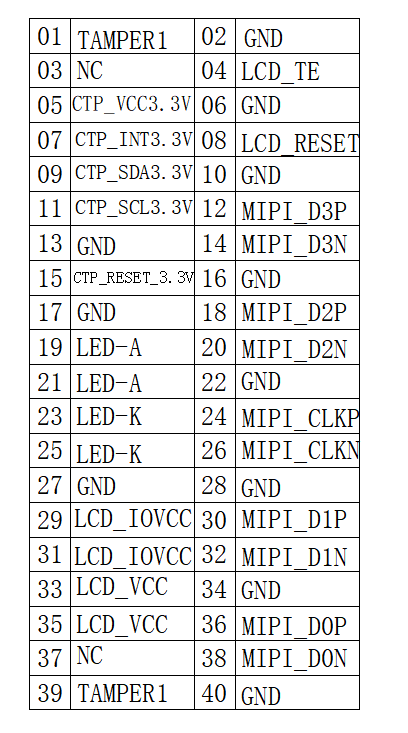

This TFT LCD display module uses a MIPI interface, which supports integration with compatible embedded platforms. The active area measures 61.88 × 123.77 mm, and the module outline size is 64.22 × 130.48 × 1.46 mm. The slim module structure makes it suitable for devices that require a narrow and lightweight display solution. Compared with standard-size modules, this vertical screen design is better suited to products that need a clear and space-efficient display layout.

Security Application Areas

• Suitable for security system display terminals used for monitoring and control.
• Can be integrated into access control devices and smart building security terminals.
• Applicable to embedded display equipment that requires a vertical screen format.
• Suitable for intelligent monitoring products where higher brightness is needed.
• Can be used in security management panels and related control interfaces.

The 5.5 inch IPS TFT LCD display module combines a vertical screen layout, high brightness options and a thin structure, making it a practical display solution for security system display, embedded display and other vertical-screen applications.

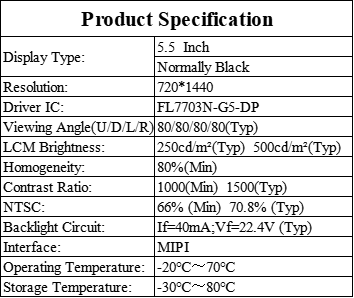

Product Specifications

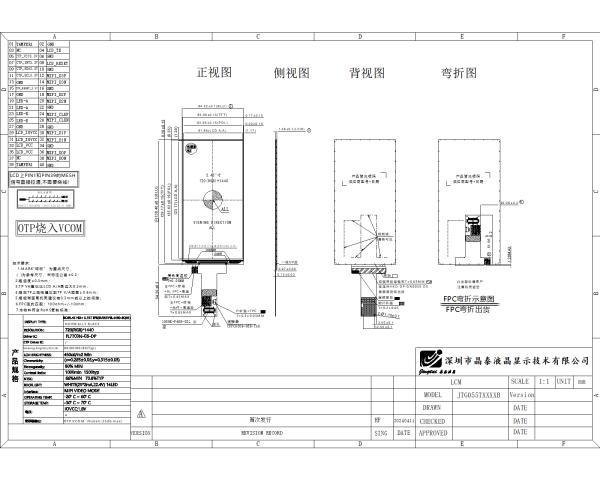

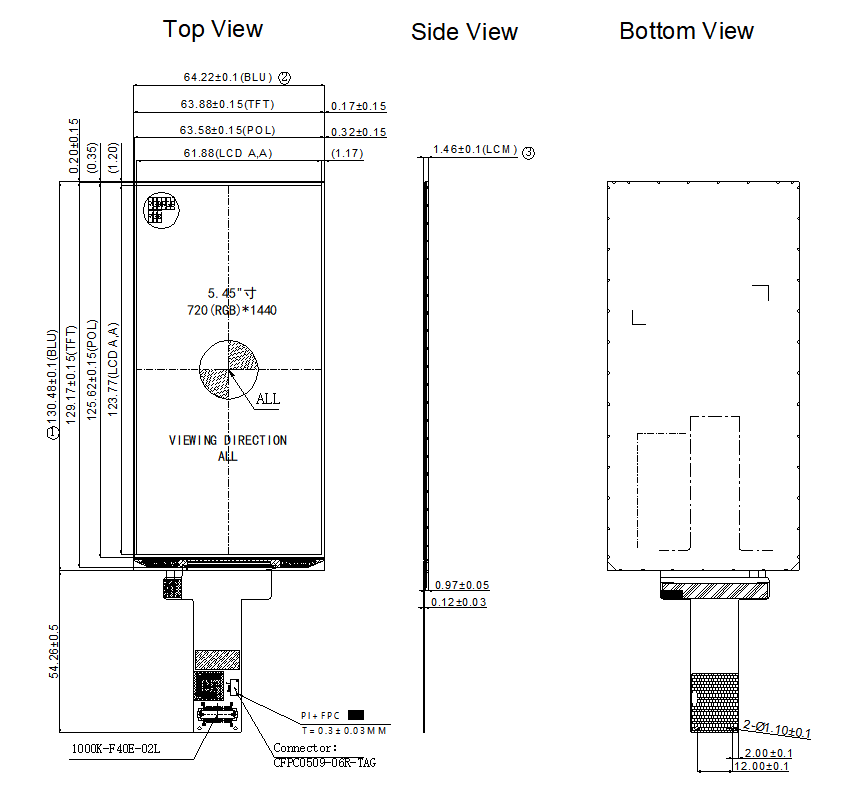

Display Module Drawing
