Specifications
Brand Name :
ITI -LINK
Model Number :
ITI-CT7SF-012
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
Shenzhen
MOQ :
1000pcs
Supply Ability :
2000pcs/day
Delivery Time :
15-45 Days
Packaging Details :

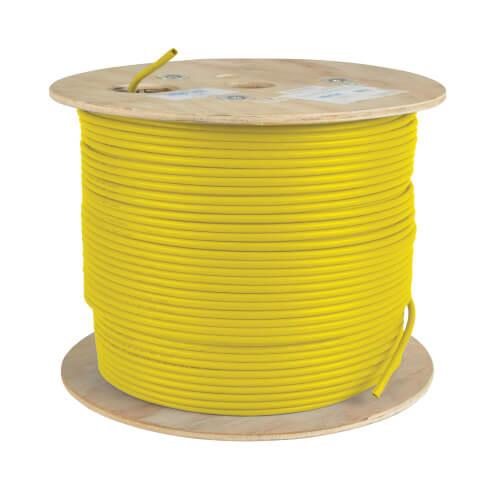

Wooden shaft packaging 40*26*20cm Outer box size：42*42*22cm
Color :
Yellow
Frequency :
600MHz
Jacket Material :
LSZH
Transmission Speed :
10Gbps
Cable Type :
CAT7
Frequency Range :
600 MHz
Length :
1000 feet
Conductor Size :
23 AWG
Description

SFTP CAT7 LSZH 600MHz 23AWG Solid Copper Cable for Data Centers and 5G Networks



Product Description:

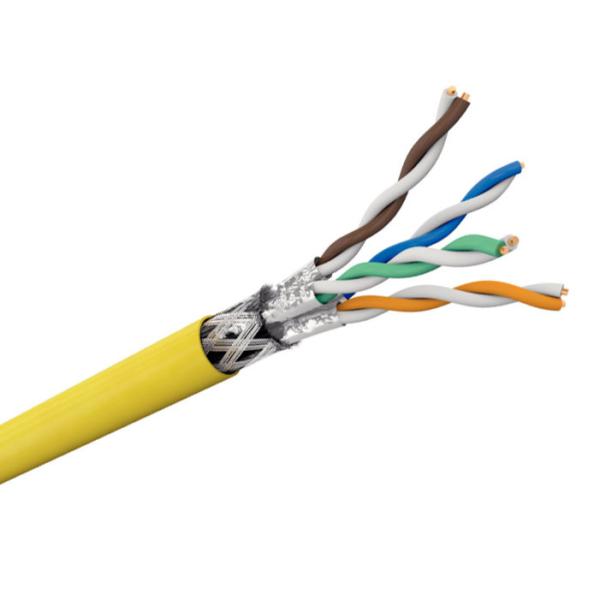

1. The INTEGRITY ITI-CT7SF-014 CAT7 SFTP cable is designed for wholesale and bulk high performance networking applications where superior shielding and stability are critical. This SFTP CAT7 cable features an advanced S/FTP structure—each twisted pair is wrapped with aluminum foil shielding, and an overall tinned copper braided shield surrounds all four pairs, delivering up to 90 dB shielding and reducing EMI by approximately 25 dB compared to unshielded cables.


2. Engineered for 10Gbps data transmission and 600 MHz bandwidth up to 90 meters, this CAT7 SFTP cable uses 23AWG solid oxygen-free copper (OFC) conductors with chemical foam PE insulation to improve signal integrity and reduce attenuation. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed environments, while PVC/PE jacket options offer flexibility for various indoor horizontal cabling installations.


3. Ideal for data centers, server rooms, 5G base stations, telecommunication facilities, and high-security government or financial networks, the ITI-CT7SF-014 CAT7 SFTP SFTP CAT7 CAT7 LSZH provides reliable, high-speed links for HD video streaming, virtualization, remote surgery, and industrial automation control. Its shielding structure not only minimizes crosstalk but also ensures signal confidentiality in sensitive environments.


4. For network engineers and installers seeking wholesale bulk shielded Ethernet LAN cables that exceed Category 7 specifications, the INTEGRITY ITI-CT7SF-014 CAT7 SFTP delivers unmatched electrical performance, mechanical durability, and compliance with high EMI immunity requirements.


Technical Parameters:


Product Description:

Wholesale Bulk CAT7 SFTP 23AWG LSZH IEC60332-1 Lan Cable for High-Performance Networks
Rev.: A ECN Description:
Construction Item Description Electrical Property


Conductor


Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 2%






Insulation

 Material PE Skin-Foam-Skin Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


>1500 MΩ / 100m
OD 1.33 ±0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.37mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m



Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min


No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown



insulation

 elongation before aging ≥ 300%



Pair Twist



Lay & Direction

 1p: S=19.0 mm (28%) tensile strength before aging ≥16 MPa
2p: S=23.5 mm (31%) elongation after aging ≥ 150 %
3p: S=21.5 mm (33%) tensile strength after aging ≥10.5 MPa
4p: S=25.0 mm (36%)



jacket

 elongation before aging ≥ 125 %
OD / tensile strength before aging ≥ 10 MPa


Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 100 %
Direction according to the drawing tensile strength after aging ≥ 8 MPa
OD / Packing


Filler

 Ripcord 3*250D Drum NA
Drain Wire /



Pair Shield

 Shield Pair Shield






Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%


Braid

 Material ɸ 0.12mm Aluminum-magnesium braided
Coverage ≥ 40%





Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81± 3
OD 8.1 ± 0.2
Average THK 0.55 ~ 0.65


Color

according to the customer's

requirements
Marking Color

according to the customer's

requirements
Marking

according to the customer's

requirements



Construction Item Description


Conductor

 Construction AWG 23
Material / Bare Solid Copper






Insulation

 Material / PE Skin-Foam-Skin
Proportion g/cm³ /
Outside Diameter mm 1.33 ±0.01
Average Thickness mm 0.37



Color



/

 1p: blue stripe + white + blue stripe & blue
2p: orange stripe + white + orange stripe & orange
3p: green stripe + white + green stripe & green
4p: brown stripe + white + brown stripe & brown



Pair Twist



Lay & Direction



/

 1p: S=19.0 mm (28%)
2p: S=23.5 mm (31%)
3p: S=21.5 mm (33%)
4p: S=25.0 mm (36%)
Inner Assemble Lay & Direction / S=90 ± 5 mm


Filler

 Ripcord / 3*250D
Drain Wire / /



Pair Shield

 Shield / Pair Shield
Construction mm /
Material / Polyester/Aluminium (PET/ALU)
Coverage % ≥ 115%


Braid

 Material / ɸ 0.12mm Aluminum-magnesium braided
Coverage % ≥ 40%





Jacket

 Material / LSZH , 60P, -20 ~ 75℃
Hardness A 81±3
Outside Diameter mm 8.1 ± 0.2
Average Thickness mm 0.55 ~ 0.65
Color / according to the customer’s requirements
Marking Color / Black
Marking Jacket / according to the customer’s requirements




Applications:

  • Data Centers & Server Rooms: Horizontal and backbone cabling for 10Gbps high-bandwidth links using ITI-CT7SF-014 CAT7 SFTP with LSZH jacket for safety and high EMI resistance.

  • 5G Base Stations & Telecom Rooms: Stable high-speed transmission with SFTP CAT7 shielding to protect against RF and electrical interference.

  • Government & Financial Institutions: Secure CAT7 SFTP cabling for high confidentiality in data-sensitive environments.

  • Medical & Research Labs: Reliable 10Gbps connections for remote surgery, HD video conferencing, and high-precision instrumentation.

  • Industrial Manufacturing & Automation: Durable CAT7 LSZH cabling for EMI-heavy control rooms and production environments.
