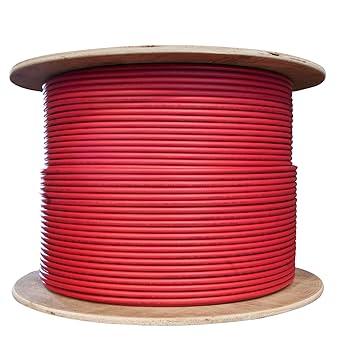

CAT7A SFTP LSZH High Speed Ethernet Cable For Industrial Data Center Networks
CAT7A SFTP LSZH High Speed Ethernet Cable For Industrial Data Center Networks
CAT7A SFTP LSZH High Speed Ethernet Cable For Industrial Data Center Networks
CAT7A SFTP LSZH High Speed Ethernet Cable For Industrial Data Center Networks
CAT7A SFTP LSZH High Speed Ethernet Cable For Industrial Data Center Networks
CAT7A SFTP LSZH High Speed Ethernet Cable For Industrial Data Center Networks
Specifications
Brand Name :
ITI -LINK
Model Number :
ITI-CTSF7A-012
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
ShenZhen
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45 Days
Packaging Details :
Outer box size (for packing): 64X32X23CM
Jacket Color :
Red
Category :
CAT7A
Maximum Frequency :
1000 MHz
Cable Type :
SFTP
Jacket Material :
LSZH
Cable Length :
50m
Conductor Size :
23 AWG
Transmission Speed :
10 Gbps
Description

CAT7A SFTP LSZH High Speed Ethernet Cable For Industrial Data Center Networks




Product Description:


1. The ITI-CTSF7A-012 CAT7A SFTP Ethernet cable is designed for high-performance industrial and data center applications requiring superior shielding and fire safety. This 23AWG SFTP CAT7A cable provides reliable 10Gbps data transmission at a bandwidth of up to 1000MHz, making it an ideal choice for bulk CAT7A SFTP cables in wholesale industrial network installations.


2. Manufactured with solid oxygen-free copper conductors, the ITI-CTSF7A-012 CAT7A SFTP Ethernet cable offers minimal attenuation and maximum signal integrity over long cable runs. The double shielding system includes foil and braided shielding, providing exceptional protection against electromagnetic interference (EMI) and radio frequency interference (RFI), essential for SFTP CAT7A cables used in noisy industrial environments and 5G communication sites.


3. This cable features a LSZH low smoke zero halogen jacket that complies with fire safety standards and is suitable for industrial, commercial, and telecom network deployments requiring LSZH CAT7A Ethernet cables. Its bright red PVC/PE or LSZH jacket enhances visibility and simplifies cable management in large-scale network infrastructures.


4. Factory-tested for attenuation, NEXT, and return loss, the ITI-CTSF7A-012 CAT7A SFTP Ethernet cable ensures consistent quality for large projects, supporting seamless installation for bulk CAT7A SFTP cable rolls for data centers, 5G base stations, and industrial automation networks.


5. Whether for industrial automation networks, data center horizontal cabling, or high-speed 5G telecom backhaul, the ITI-CTSF7A-012 CAT7A SFTP LSZH Ethernet cable delivers unmatched performance, durability, and safety.


Technical Parameters:


Product Description:Wholesale Bulk CAT7A SFTP 23AWG LSZH Red Lan Cable for Industrial Data Center Networks
Rev.: A ECN Description:
Construction Item Description Electrical Property


Conductor


Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23AWG Resistance unbalance within a pair ≤ 2%






Insulation

 Material PE Skin-Foam-Skin Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


>1500 MΩ / 100m
OD 1.45 ±0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.42 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m



Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min


No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown



insulation

 elongation before aging ≥ 300%



Pair Twist



Lay & Direction

 1p: S=19.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=23.5 mm (31%) elongation after aging ≥ 150 %
3p: S=21.5 mm (33%) tensile strength after aging ≥10.5 MPa
4p: S=25.0 mm (36%)



jacket

 elongation before aging ≥ 125 %
OD / tensile strength before aging ≥ 10 MPa


Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 100 %
Direction according to the drawing tensile strength after aging ≥ 8 MPa
OD / Packing


Filler

 Ripcord / Drum NA
Drain Wire /



Pair Shield

 Shield Pair Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%


Braid

 Material ɸ 0.12mm Aluminum-magnesium braidedr
Coverage ≥ 40%





Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81± 3
OD 8.5 ± 0.2
Average THK 0.60 ~ 0.70


Color

 according to the customer's requirements
Marking Color according to the customer's requirements
Marking according to the customer's requirements



Transmission Properties
CAT7A ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013



No.


Frequency


Attenuation (Max)

Propagation Delay

(Max)

Propagation Delay Skew

(Max)


Return Loss (Min)


NEXT (Min)


PS NEXT (Min)


EL-FEXT (Min)


PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.7 552 25 23.0 78.0 75.0 78.0 75.0
2 8 5.2 547 25 24.5 78.0 75.0 77.2 74.2
3 10 5.8 545 25 25.0 78.0 75.0 75.3 72.3
4 16 7.3 543 25 25.0 78.0 75.0 71.2 68.2
5 20 8.2 542 25 25.0 78.0 75.0 69.3 66.3
6 25 9.2 541 25 24.3 78.0 75.0 67.3 64.3
7 31.25 10.3 540 25 23.6 78.0 75.0 65.4 62.4
8 62.5 14.6 539 25 21.5 78.0 75.0 59.4 56.4
9 100 18.5 538 25 20.1 75.4 72.4 55.3 52.3
10 200 26.5 537 25 18.0 70.9 67.9 49.3 46.3
11 250 29.7 536 25 17.3 69.4 66.4 47.3 44.3
12 300 32.7 536 25 17.3 68.2 65.2 45.8 42.8
13 400 38.0 536 25 17.3 66.4 63.4 43.3 40.3
14 500 42.8 536 25 17.3 64.9 61.9 41.3 38.3
15 600 47.1 535 25 17.3 63.7 60.7 39.7 36.7
16 1000 61.9 535 25 15.1 60.4 57.4 35.3 32.3





Applications:

  • Used extensively in industrial network backbone installations requiring bulk CAT7A SFTP Ethernet cables with superior EMI shielding and fire safety via LSZH jackets.

  • Ideal for data center horizontal cabling and server aggregation where 1000MHz CAT7A SFTP cables provide high-speed, low-latency connections for cloud computing and big data.

  • Preferred cable for 5G telecommunications networks, including 5G small cell deployments and base station backhaul, offering stable and interference-resistant links using SFTP CAT7A cables.

  • Suitable for industrial automation linking PLCs, HMIs, and control systems in electrically noisy environments, where 23AWG solid copper CAT7A SFTP cables minimize data loss.

  • Recommended for commercial and public buildings demanding LSZH low smoke zero halogen Ethernet cables for enhanced fire safety compliance.
