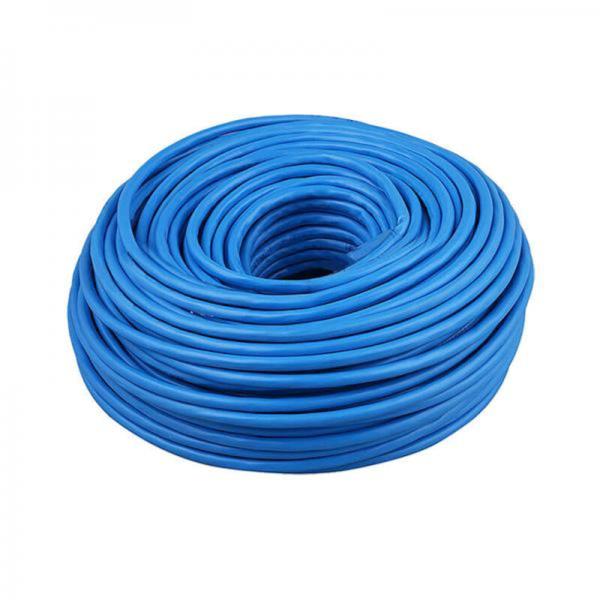

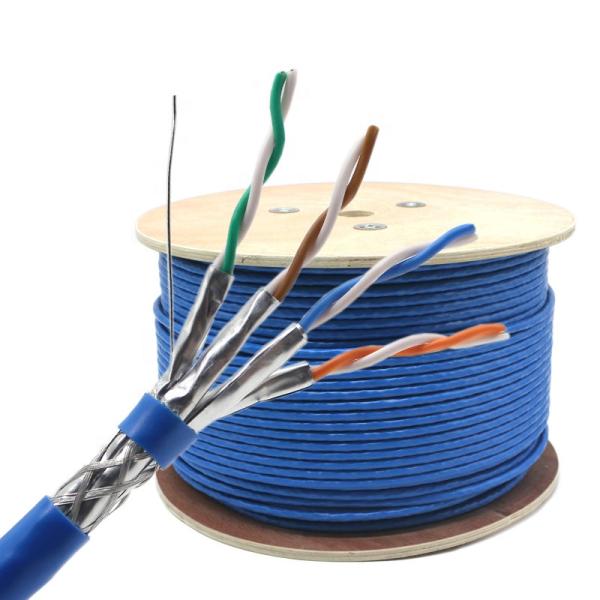

Wholesale Bulk SFTP CAT7A 23AWG Shielded 1000MHz Blue Ethernet Cable
Product Description: Wholesale Bulk SFTP CAT7A 23AWG Shielded 1000MHz Blue Ethernet Cable | ||||||
Rev.: A | ECN Description: | |||||

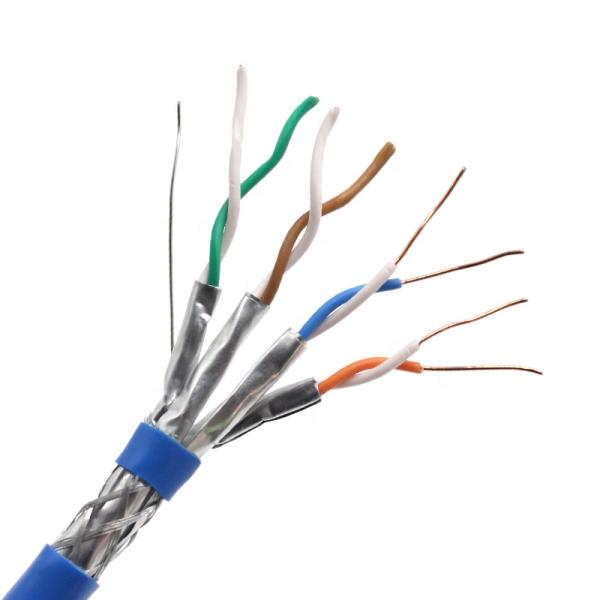

Construction Item Description | Electrical Property | |||||
Conductor | Material | Bare Solid Copper(elongation: 19-24%) | Conductor Resistance at 20°C | ≤ 9.5 Ω / 100m | ||
OD | 23AWG | Resistance unbalance within a pair | ≤ 2% | |||
Insulation | Material | PE Skin-Foam-Skin | Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V | >1500 MΩ / 100m | ||
OD | 1.45 ±0.01 mm | Mutual capacitance | 5600 pF / 100m MAX | |||
Average THK | 0.42 mm | Capacitance unbalance pair to ground at 800Hz or 1 kHz | ≤ 160 pF / 100m | |||
Color | 1p: white + 2 blue stripes & blue | Characteristic impedance at 100MHz | 100 ± 15 Ω | |||
2p: white + 2 orange stripes & orange | Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min | No breakdown | ||||
3p: white + 2 green stripes & green | Mechanical Property | |||||
4p: white + 2 brown stripes & brown | insulation | elongation before aging | ≥ 300% | |||
Pair Twist | Lay & Direction | 1p: S=19.0 mm (28%) | tensile strength before aging | ≥12 MPa | ||
2p: S=23.5 mm (31%) | elongation after aging | ≥ 150 % | ||||
3p: S=21.5 mm (33%) | tensile strength after aging | ≥10.5 MPa | ||||
4p: S=25.0 mm (36%) | jacket | elongation before aging | ≥ 150 % | |||
OD | / | tensile strength before aging | ≥ 13.5 MPa | |||
Inner Assemble | Lay | S=90 ± 5 mm | elongation after aging | ≥ 125 % | ||
Direction | according to the drawing | tensile strength after aging | ≥ 12.5 MPa | |||
OD | / | Packing | ||||

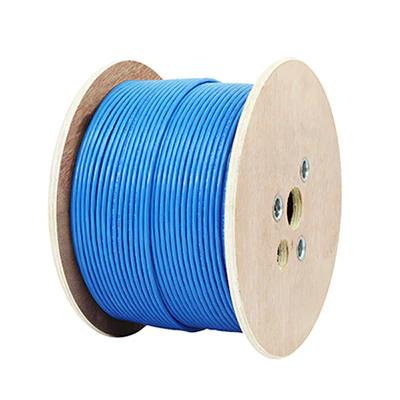

Filler | Ripcord | / | Drum | NA | ||
Drain Wire | / | |||||
Pair Shield | Shield | Pair Shield | ||||
Construction | / | |||||
Material | Polyester/Aluminium (PET/ALU) | |||||
Coverage | ≥ 115% | |||||
Braid | Material | ɸ 0.12mm Aluminum-magnesium braidedr | ||||
Coverage | ≥ 40% | |||||
Jacket | Material | PVC, 50P, -20~75℃ | ||||
Hardness | 81± 3 | |||||
OD | 8.5 ± 0.2 | |||||
Average THK | 0.60 ~ 0.70 | |||||
Color | according to the customer's requirements | |||||
Marking Color | according to the customer's requirements | |||||
Marking | according to the customer's requirements |
Construction Item Description | |||
Conductor | Construction | AWG | 23 |
Material | / | Bare Solid Copper | |
Insulation | Material | / | PE Skin-Foam-Skin |
Proportion | g/cm³ | / | |
Outside Diameter | mm | 1.45 ±0.01 | |
Average Thickness | mm | 0.42 | |
Color | / | 1p: blue stripe + white + blue stripe & blue | |
2p: orange stripe + white + orange stripe & orange | |||
3p: green stripe + white + green stripe & green | |||
4p: brown stripe + white + brown stripe & brown | |||
Pair Twist | Lay & Direction | / | 1p: S=19.0 mm (28%) |
2p: S=23.5 mm (31%) | |||
3p: S=21.5 mm (33%) | |||
4p: S=25.0 mm (36%) | |||
Inner Assemble | Lay & Direction | / | S=90 ± 5 mm |
Filler | Ripcord | / | / |
Drain Wire | / | / | |
Pair Shield | Shield | / | Pair Shield |
Construction | mm | / | |
Material | / | Polyester/Aluminium (PET/ALU) | |
Coverage | % | ≥ 115% | |
Braid | Material | / | ɸ 0.12mm Aluminum-magnesium braided |
Coverage | % | ≥ 40% | |
Jacket | Material | / | PVC , 50P, -20 ~ 75℃ |
Hardness | A | 81±3 | |
Outside Diameter | mm | 8.5 ± 0.2 | |
Average Thickness | mm | 0.60 ~ 0.70 | |
Color | / | according to the customer’s requirements | |
Marking Color | / | Black | |
Marking | Jacket | / | according to the customer’s requirements |
