Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CTSF7A-014
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
SHENZHEN
MOQ :
1000pcs
Price :
$50-$100
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45 Days
Packaging Details :
Wooden shaft packaging 32*22*12cm Outer box size： 37*37*24cm
Cable Type :
SFTP
Conductor Material :
Copper
Color :
Orange
Category :
CAT7A
Frequency :
1000 MHz
Cable Length :
305 Meters
Conductor Size :
23 AWG
Jacket Material :
PVC
Description

CAT7A SFTP Orange Ethernet Cable 23AWG 305m Cat7A SFTP LSZH PVC High Speed 10Gbps




Product Description:

  • High-Performance CAT7A SFTP Cable ITI-CTSF7A-014 – Designed for 10Gbps data transmission and up to 1000MHz bandwidth, this CAT7A SFTP Ethernet cable ensures faster, more stable, and interference-free networking for data centers, enterprises, and home users.
  • Superior Shielding with S/FTP Structure – Each twisted pair is foil-shielded with an overall braid shield, minimizing crosstalk, EMI, and signal loss, making this CAT7A SFTP Ethernet cable ideal for 10Gbps backbone installations.
  • Durable Jacket Options (PVC & LSZH) – Available in flame-retardant PVC or Low-Smoke Zero-Halogen (LSZH) jackets, our CAT7A SFTP cable meets safety standards for industrial networks, commercial wiring, and high-density installations.

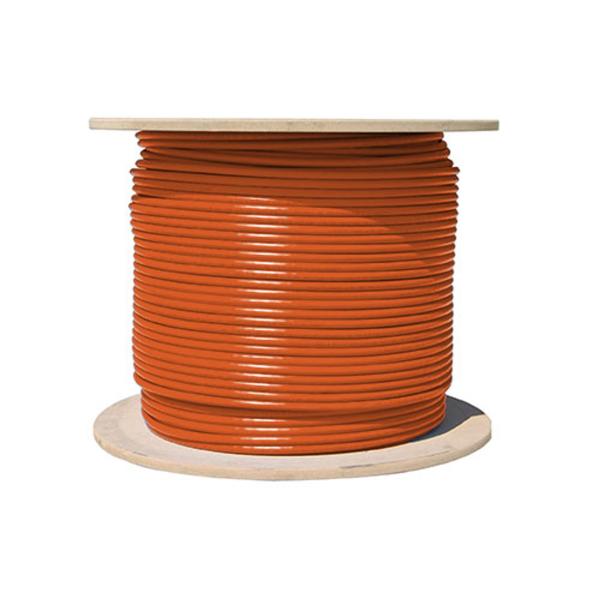

  • Bulk 1000ft Spool for Professional Installations – This ITI-CTSF7A-014 bulk CAT7A SFTP Ethernet cable comes in 1000ft pull boxes or reels, allowing integrators and contractors to save costs on large-scale structured cabling projects.
  • Wide Applications & Compatibility – Supports Ethernet, PoE, VoIP, CCTV, 5G base stations, and smart factory networks. This CAT7A SFTP cable is backward compatible with Cat6A, Cat6, and Cat5e cables, ensuring seamless upgrades.




Technical Parameters:

Product Description:CAT7A SFTP Orange Ethernet Cable 23AWG 305m Cat7A SFTP LSZH PVC High Speed 10Gbps
Rev.: A ECN Description:
Construction Item Description Electrical Property


Conductor


Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23AWG Resistance unbalance within a pair ≤ 2%






Insulation

 Material PE Skin-Foam-Skin Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


>1500 MΩ / 100m
OD 1.45 ±0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.42 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m



Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min


No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown



insulation

 elongation before aging ≥ 300%



Pair Twist



Lay & Direction

 1p: S=19.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=23.5 mm (31%) elongation after aging ≥ 150 %
3p: S=21.5 mm (33%) tensile strength after aging ≥10.5 MPa
4p: S=25.0 mm (36%)



jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa


Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
OD / Packing


Filler

 Ripcord / Drum NA
Drain Wire /



Pair Shield

 Shield Pair Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%


Braid

 Material ɸ 0.12mm Aluminum-magnesium braidedr
Coverage ≥ 40%





Jacket

 Material PVC, 50P, -20~75℃
Hardness 81± 3
OD 8.5 ± 0.2
Average THK 0.60 ~ 0.70


Color

 according to the customer's requirements
Marking Color Orange
Marking according to the customer's requirements



Applications:

  • Data centers use the INTEGRITY ITI-CTSF7A-014 CAT7A SFTP cable with 23AWG copper 305m spool for 1000MHz 10Gbps high density installations with PVC or LSZH jacket.
  • Enterprise backbones rely on SFTP CAT7A cable ITI-CTSF7A-014 to connect switches and servers with stable 10Gbps Cat7A performance in EMI environments.
  • Industrial automation and telecom plants deploy INTEGRITY CAT7A SFTP orange Ethernet cable with LSZH or PVC jackets for safe and durable networking.
  • Security systems and power industry projects integrate SFTP CAT7A cabling for reliable shielded 1000MHz high speed data transmission.
  • Network upgrades replace outdated cabling with INTEGRITY ITI-CTSF7A-014 Cat7A SFTP Ethernet cable for consistent 10Gbps 1000MHz connectivity.
