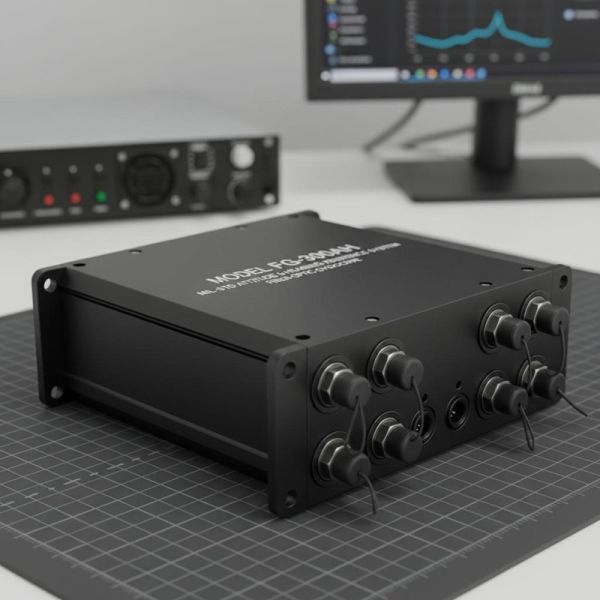

Model FG-300AH Cost-effective international Standard Attitude And Heading Reference System with Fiber-optic Gyroscope
Model FG-300AH Cost-effective international Standard Attitude And Heading Reference System with Fiber-optic Gyroscope
Model FG-300AH Cost-effective international Standard Attitude And Heading Reference System with Fiber-optic Gyroscope
Model FG-300AH Cost-effective international Standard Attitude And Heading Reference System with Fiber-optic Gyroscope
Specifications
Brand Name :
NAVI OPTICS
Model Number :
FG-300AH
Certification :
CCS
Place of Origin :
China
MOQ :
one set
Payment Terms :
T/T
Packaging Details :
Carton box
Description

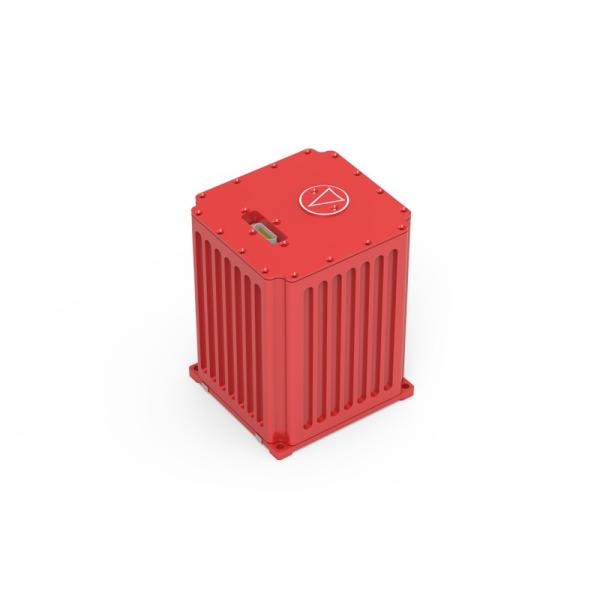

Model FG-300AH Attitude And Heading Reference System
The FG-300AH Attitude and Heading Reference System (AHRS) is a cost-effective inertial navigation and measurement solution designed to measure three-dimensional attitude, angular velocity, acceleration, and other motion parameters of carriers. Manufactured according to international standards, this system delivers reliable performance in demanding environments.
System Overview
The FG-300AH utilizes fiber-optic gyroscope technology and quartz flexure accelerometers, achieving system accuracy through high-precision error calibration and compensation. Advanced engineering features including electromagnetic shielding, thermal balance design, vibration modal analysis, sealing design, and strict manufacturing processes ensure exceptional environmental adaptability.
Key Features
  • Cost-effective fiber optic gyro technology
  • System-level error parameter calibration and compensation
  • Full temperature domain temperature compensation
  • Anti-turbulence self-alignment and moving base self-alignment
  • Compatible with satellite navigation, meter, and DVL systems
  • Configurable for combined navigation and damped navigation modes
  • Built to international standards
Applications
  • Marine low and medium accuracy compass systems
  • Vehicle navigation and control
  • Antenna stabilization control
  • Attitude heading reference
  • AUV positioning and orientation
Technical Specifications
Gyroscope Performance
Zero bias stability 0.1°/h, 1σ
Zero bias repeatability 0.1°/h, 1σ
Scale factor nonlinearity 50ppm, 1σ
Accelerometer Performance
Zero bias stability 30μg, 1σ
Zero bias repeatability 30μg, 1σ
Scale factor stability 30ppm, 1σ
System Performance
Start-up time 10 minutes
Attitude accuracy 0.01°, 1σ
Heading accuracy 0.4*sec(Lat)°, 1σ
Position error (with DVL) 1.5% of distance traveled
Measurement Range
Angular velocity ±300°/s
Acceleration ±40g
Operating Environment
Operating temperature -40℃ to +70℃
Storage temperature -55℃ to +85℃
Vibration 0.04g²/Hz @ 2-2000Hz
Shock resistance 30g @ 6ms / 50g @ 11ms
Electrical Characteristics
Operating voltage 28VDC
Power consumption ≤14W
Communication interface RS422/RS232
Physical Characteristics
Dimensions (W*D*H) 88 * 93 * 130mm
Weight ≤1.4kg
