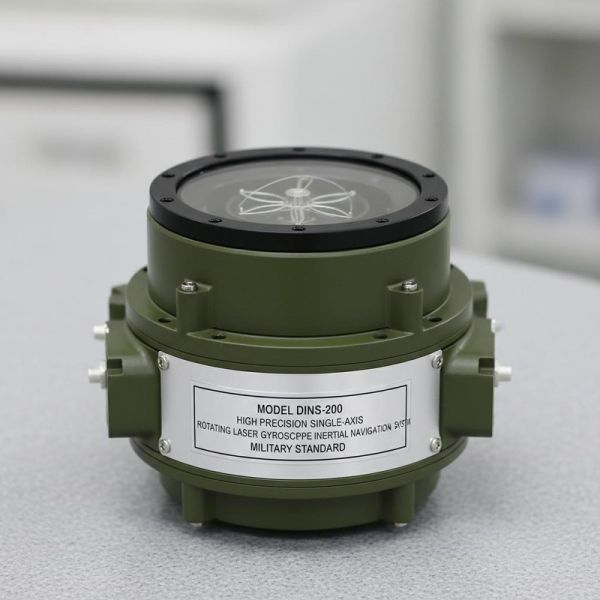

Model DINS-200 High Precision Single-Axis Rotating Laser Gyroscope Inertial Navigation System with International Standard
Model DINS-200 High Precision Single-Axis Rotating Laser Gyroscope Inertial Navigation System with International Standard
Model DINS-200 High Precision Single-Axis Rotating Laser Gyroscope Inertial Navigation System with International Standard
Model DINS-200 High Precision Single-Axis Rotating Laser Gyroscope Inertial Navigation System with International Standard
Specifications
Brand Name :
NAVI OPTICS
Model Number :
DINS-200
Certification :
CCS
Place of Origin :
China
MOQ :
one set
Payment Terms :
T/T
Packaging Details :
Carton box
Description
Model DINS-200 High Precision Single-Axis Rotating Laser Gyroscope Inertial Navigation System
Product Overview

The DINS-200 single-axis rotating laser gyroscope inertial navigation system represents high-performance inertial navigation and measurement equipment. Engineered with advanced high-precision laser gyroscope and quartz flexible accelerometer technology, this system delivers exceptional performance through sophisticated error calibration, temperature compensation, and single-axis rotating online self-calibration with error self-compensation capabilities.

Featuring electromagnetic shielding design, thermal balance optimization, vibration mode engineering, sealing design, and rigorous manufacturing standards, the DINS-200 ensures outstanding environmental adaptability for demanding applications.

Key Features
  • High-precision two-frequency mechanically dithered laser gyroscope
  • On-line self-calibration and error self-compensation through single-axis rotation
  • Anti-disturbance traveling self-alignment capability
  • Comprehensive input interface supporting satellite navigation systems, odometer, Doppler log, electromagnetic log, altimeter, and ultra-short baseline underwater acoustic positioning systems
  • Multiple operational modes with automatic or manual selection of pure inertia, damping, or integrated navigation based on external reference information
  • Excellent environmental adaptability
  • International standard compliance
Applications
  • High precision ship navigation
  • Navigation and positioning of underwater unmanned submersibles
  • Positioning and orientation of artillery geodesic vehicles
  • Positioning and orientation of missile launch vehicles
  • High-precision attitude measurement
Technical Specifications
Electrical Characteristics
  • Power Supply: 28VDC (18-36VDC), <100W
  • Communication: Configurable serial ports (921600), Ethernet port, 2 CAN bus interfaces, 1 PPS interface, odometer pulse interface
  • Maximum Output Frequency: 1000Hz
Working Environment
  • Operating/Storage Temperature: -40℃ to +60℃ / -55℃ to +80℃
  • Vibration: 1g Sine @ 5-50Hz
  • Shock Resistance: Normal operation/no damage under 30g@6ms / 50g@11ms
Physical Characteristics
  • Size: φ480mm * 520mm (diameter * height)
  • Weight: ≤62kg (without buffer base)
Measuring Range
  • Angular Velocity: ±400deg/s
  • Acceleration: ±15g
Performance Specifications
Parameter Mode Specification
Heading (RMS) Pure Inertia ≤60 arcsec
Damping/Combination ≤30 arcsec
Roll Pitch (RMS) Pure Inertia ≤30 arcsec
Damping/Combination ≤15 arcsec
Position (CEP) Pure Inertial ≤2nm/48h
Guided Combination ≤2m
Doppler Meter Damping ≤1nm/48h
Electromagnetic Meter Damping ≤1.5nm/48h
Odometer Combination ≤0.15% OD
Velocity (RMS) Pure Inertia ≤0.6m/s
Damping ≤0.2m/s
Combined ≤0.1m/s
Start-up Time Marine Marina ≤12h
Marine Offshore ≤12h with GNSS
Land Based Static ≤7min
Land-based Travelling ≤15min with OD
Heave (RMS)
2.5cm or 2.5%
