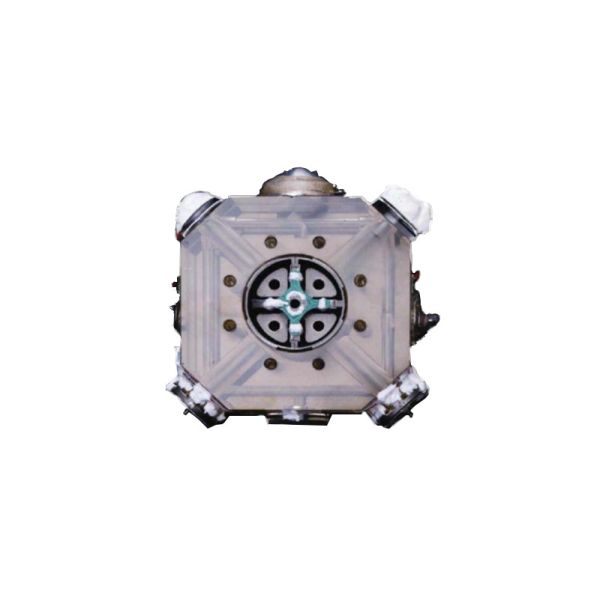

TDLG70 High Precision Laser Gyroscope Small Volume Light Weight
TDLG70 High Precision Laser Gyroscope Small Volume Light Weight
Specifications
Brand Name :
Navioptics
Model Number :
TDLG70
Certification :
CCS
Place of Origin :
China
Payment Terms :
T/T
Delivery Time :
15 Days
MOQ :
one set
Supply Ability :
30 set per month
Packaging Details :
carton box
Operating system :
2- axis 4-beam pulse Doppler sonar or ROT-combined 3-axis 4-beam pulse Doppler sonar (ROT:option
Operating frequencies :
240kHz (BT : for speed against the ground) 2MHz (WT : for speed against the water)
Distance run range :
0 to 99999.99nm
Depth range :
BT : 2 to 250m (below hull bottom)depending upon sea bottom conditions WT : 3m or more (below hull bottom)
Speed measuring accuracy :
±1% or 0.1 kts whichever is greater
Total distance run accuracy :
±1% or 0.1 nm whichever is greater
Power consumption :
300VA or less
Operating temperature :
-15deg.C to +55deg.C
Description

Introduction

The TDLG70 laser gyroscope is a rugged inertial device developed for small and lightweight requirements. It is fully benchmarked against the GG1308 laser gyroscope and adopts the same design and process route.

Feature

1,Good stability of scale factor

2,Strong resistance to shock overload

3,Insensitive to temperature and electromagnetism

4,Small volume, light weight, low cost

Application Scope

Mainly used in the field of low-precision inertial navigation, including assisted medium-range navigation, various tactical missiles, long-range weapons (rockets, etc.), high-speed rotary bombs, unmanned control of small aerial vehicles, torpedoes, various types of smart munitions, combat vehicles and specialized civilian vehicles.

Main technical indicators

TDLG70 High Precision Laser Gyroscope

External Dimension Drawing (W×D×H)

88mm×84.5mm×26.3mm

Weight

(310~350)g

Zero Bias stability

(0.0015~0.004)deg/h

Typical precision:0.0025deg/h

Zero Bias Repeatability

(0.0002~0.0008)deg/h

Random Walk

(0.0002~0.0007)deg/√h

Scale factor stability

＜3ppm

Measurement range

±1500°/s

Operating temperature

(-50~80)℃

Storage Life

＞30y

Operating Life

＞80000h(Type)

＞200000h(Customizable)

Vibration

＜7g

Sensitive axial maximum overload

50g
