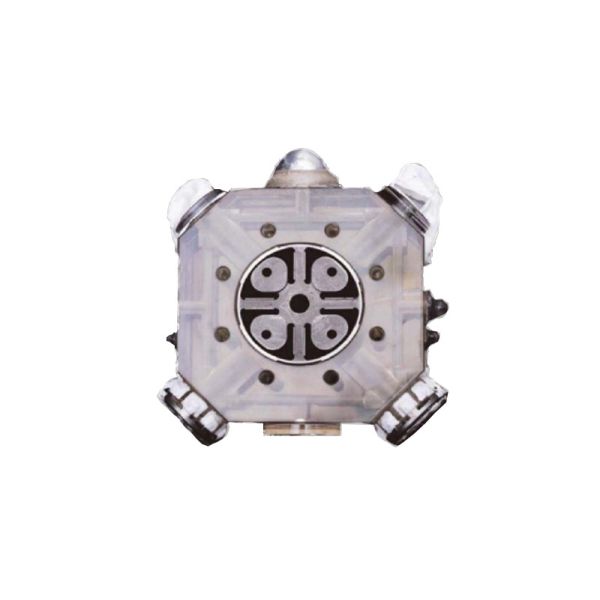

TDLG90 High Precision Laser Gyroscope Rugged Inertial Device
TDLG90 High Precision Laser Gyroscope Rugged Inertial Device
Specifications
Brand Name :
Navioptics
Model Number :
TDLG9
Certification :
CCS
Place of Origin :
China
MOQ :
one set
Payment Terms :
T/T
Supply Ability :
30 set per month
Delivery Time :
15 Days
Packaging Details :
carton box
Description

Introduction

The TDLG90 laser gyroscope is a rugged inertial device developed for small and lightweight requirements. It is fully benchmarked against the GG1308 laser gyro and adopts the same design and process route.

Feature

1,Good stability of scale factor

2,Strong resistance to shock overload

3,Insensitive to temperature and electromagnetism

4,Small volume, light weight, low cost

Application Scope

Mainly used in the field of low-precision inertial navigation, including assisted medium-range navigation, various tactical missiles, long-range weapons (rockets, etc.), high-speed rotary bombs, unmanned control of small aerial vehicles, torpedoes, various types of smart munitions, combat vehicles and specialized civilian vehicles.

Main technical indicators

TDLG90 High Precision Laser Gyroscope

Maximum external dimensions (W×D×H)

117mm×108mm×32.3mm

Weight

(660~690)g

Zero Bias stability

(0.0007~0.002)deg/h

Typical accuracy:0.0012deg/h

Random Walk

(0.0002~0.0004)deg/h

Scale factor stability

(0.0015~0.0004)deg/√h

Measurement range

＜2ppm

Operating temperature

±1000°/s

Storage Life

(-50~80)℃

Operating life

＞30y

Vibration

＞150000h

Shock Response Spectrum

＜3.5g(Basic)

＜5g(Standard)

＜6g(Stabilized)

Sensitive axial maximum overload

45g
