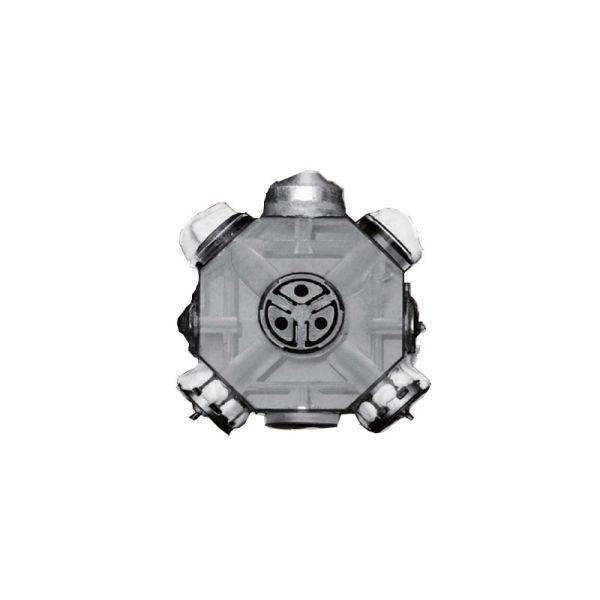

TDLG50 High Precision Laser Gyroscope For Long Range Weapons
TDLG50 High Precision Laser Gyroscope For Long Range Weapons
Specifications
Brand Name :
Navioptics
Model Number :
TDLG50
Place of Origin :
China
MOQ :
one set
Payment Terms :
T/T
Supply Ability :
30 set per month
Delivery Time :
15 Days
Packaging Details :
carton box
Description

Introduction

The TDLG50 laser gyroscope is a rugged inertial device developed for small and lightweight requirements. It is fully benchmarked against the GG1308 laser gyro and adopts the same design and process route.

Feature

1,Good stability of scale factor

2,Strong resistance to shock overload

3,Insensitive to temperature and electromagnetism

4,Small volume, light weight, low cost

Application Scope

Mainly used in the field of low-precision inertial navigation, including assisted medium-range navigation, various tactical missiles, long-range weapons (rockets, etc.), high-speed rotary bombs, unmanned control of small aerial vehicles, torpedoes, various types of smart munitions, combat vehicles and specialized civilian vehicles.

Main technical indicators

TDLG50 Medium-high Precision Laser Gyroscope

External Dimension Drawing(W×D×H)

73.5mm×67.5mm×23.3mm

Weight

(165~185)g

Zero Bias stability

(0.005~0.01)deg/h

Typical accuracy:0.006deg/h

Zero Bias Repeatability

(0.0008~0.03)deg/h

Random Walk

(0.0007~0.002)deg/√h

Scale factor stability

＜5ppm

Measurement range

±2000°/s

Operating temperature

(-50~80)℃

Storage Life

＞27y

Operating Life

＞80000h(Type)

＞150000h(Customizable)

Vibration

＜8g

Sensitive axial maximum overload

50g
