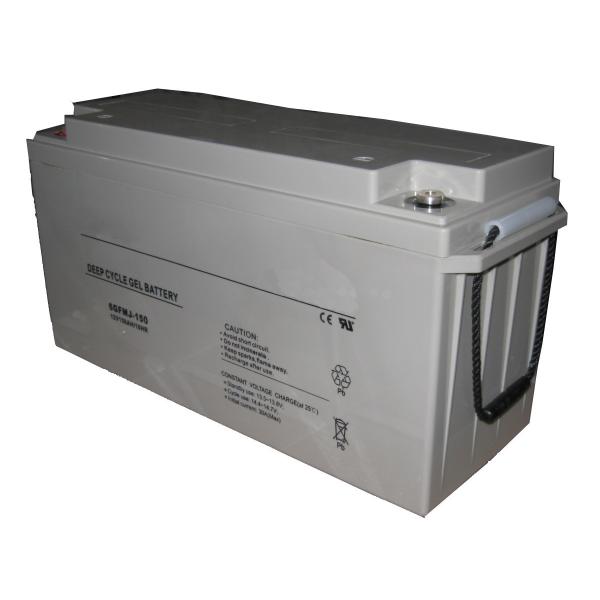

12V 100Ah Gel Deep Cycle Battery with 12 Years Design Life ABS Case for Photovoltaic System
12V 100Ah Gel Deep Cycle Battery with 12 Years Design Life ABS Case for Photovoltaic System
Specifications
Approx Weight :
31KG
Nominal Voltage :
12Volt
Battery Designed Life :
12 Years
Screw Hole Size :
M8
Rated Capacity :
100AH
Brand Name :
FBATTERY
Application :
Photovoltaic System, Hybrid Power System
Battery Case :
ABS
Type :
12v 100ah Gel Deep Cycle Battery
Model Number :
6GFMJ-100
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30DAYS
Packaging Details :
Carton and Wooden Pallet
Description
ABS Case 12V 100Ah Gel Deep Cycle Battery for Photovoltaic Systems

A high-performance gel deep cycle battery specifically designed for photovoltaic systems and renewable energy applications.

Application Fields
  • Home Appliances
  • Electric Power Systems
  • Solar Energy Storage Systems
  • Uninterruptible Power Supplies
Product Structure and Working Principle
  • Positive Plate: Thick high Sn low Ca grid with high density paste
  • Negative Plate: Over designed capacity to overcome sulphation in low SOC
  • Separator: Advanced AGM separator
  • Electrolyte: Dilute high purity sulphuric acid with nano gel
  • Battery Container and Cover: ABS material
  • Pillar Seal: 100% factory tested, proven two layers epoxy resin seal
  • Relief Valve: Complete with integrated flame arrestor
Technical Specifications
Type 12V 100Ah Gel Deep Cycle Battery
Nominal Voltage 12V
Rated Capacity 100Ah @ 10HR-rate (to 1.80Vpc)
Approx Dimensions (mm) L329mm × W174mm × H216mm × TH222mm
Battery Designed Life 12 years
Approx Weight 31kg
Applicable Temperature -40℃ to 60℃
Optimum Temperature 20℃ to 25℃
Self-discharge Self-discharge rate <0.1% per day (20℃)
Materials for Battery Containers and Covers ABS
Terminal Type (mm) Female Copper Insert M8 (torque: 8-10N.m)
Performance Charts
Constant Current Discharge Ratings - Amperes at 25°C
12V 100Ah Gel Deep Cycle Battery with 12 Years Design Life ABS Case for Photovoltaic System
Constant Power Discharge Ratings - Watts at 25°C
12V 100Ah Gel Deep Cycle Battery with 12 Years Design Life ABS Case for Photovoltaic System
Key Advantages
  • Long Life: 12 years design life in floating condition
  • Up to 5 years design life at renewable energy applications according to IEC61427
  • Wide operating temperature range from -25°C to 65℃
  • Nano gel electrolyte eliminates acid stratification and prolongs cycle life
  • Round trip efficiency as high as 85%
  • Thick positive flat plate design with high Tin low Calcium alloy and high density paste
  • Low self-discharge rate and long shelf life (9 months at 20℃)
  • Excellent deep discharge recovery capability
