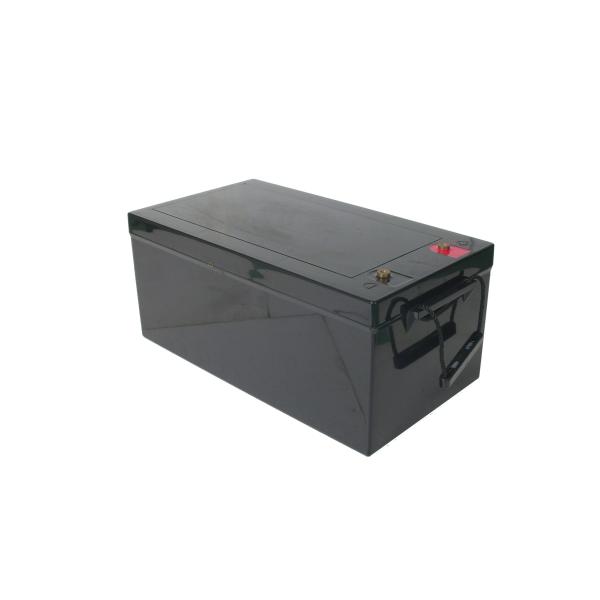

12V250AH Rechargeable Gel Deep Cycle Battery with Long Shelf Life for Solar Applications
12V250AH Rechargeable Gel Deep Cycle Battery with Long Shelf Life for Solar Applications
Specifications
Approx Weight :
66KG
Nominal Voltage :
12V
Battery Designed Life :
12 Years
Screw Hole Size :
M8
Model Number :
6GFMJ-250
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30DAYS
Packaging Details :
Carton and Wooden Pallet
Rated Capacity :
250AH
Type :
Storage Gel Battery
Application :
Energy Storage for Renewable Energies， Solar Power, Deep Cycle Application
Battery Case :
ABS
Description
Long Shelf Life Gel Deep Cycle Battery 12V250AH Rechargeable Solar Type
Product Overview

12V250AH Rechargeable Solar Type Battery Gel Deep Cycle Battery AGM Deep Cycle Battery for Solar

The storage series is designed for frequent cyclic charge and discharge applications under extreme environments. By combining the newly developed Nano Gel electrolyte with high density paste, the Solar range offers high recharge efficiency at very low charge current. The acid stratification is highly reduced by adding Nano Gel.

Product Structure & Working Principle
  • Positive plate: Thick high Sn low Ca grid with high density paste
  • Negative plate: Over designed capacity to overcome sulphation in low SOC
  • Separator: Advanced AGM separator
  • Electrolyte: Dilute high purity sulphuric acid with nano gel
  • Battery container and cover: ABS
  • Pillar seal: 100% factory tested, proven two layers epoxy resin seal
  • Relief valve: Complete with integrated flame arrestor
Specifications
Type Storage Gel Battery
Nominal Voltage 12V
Rated Capacity 250Ah@10HR-rate (to 1.80Vpc)
Approx Dimensions (mm) L521mm × W269mm × H225mm
Battery Designed Life 12 years
Approx Weight 66kg
Applicable Temperature -40℃～60℃
Optimum Temperature 20℃～25℃
Self-discharge Self-discharge rate＜0.1% per day (20℃)
Materials for Battery Containers and Covers ABS
Terminal Type (mm) Female Copper Insert M8 (torque: 8～10N.m)
Max. Charge Current 62.5A
Max. Discharge Current (5s) 1800 A
Short Circuit Current 4600 A
Performance Charts

Constant Current Discharge Ratings - amperes at 25°C

12V250AH Rechargeable Gel Deep Cycle Battery with Long Shelf Life for Solar Applications

Constant Power Discharge Ratings - watts at 25°C

12V250AH Rechargeable Gel Deep Cycle Battery with Long Shelf Life for Solar Applications
Application Fields

This series is suitable for energy storage for renewable energies such as PV, wind turbine power systems and CATV.

Key Advantages
  • Long Life: 12 years design life in floating condition
  • Up to 5 years design life at renewable energy applications according to IEC61427
  • Wide operating temperature range from -25°C to 65℃
  • Nano gel electrolyte eliminates acid stratification and prolongs cycle life
  • Round trip efficiency as high as 85%
  • Thick positive flat plate design with high Tin low Calcium alloy and high density paste
  • Low self-discharge rate and long shelf life (9 months at 20℃)
  • Excellent deep discharge recovery capability
