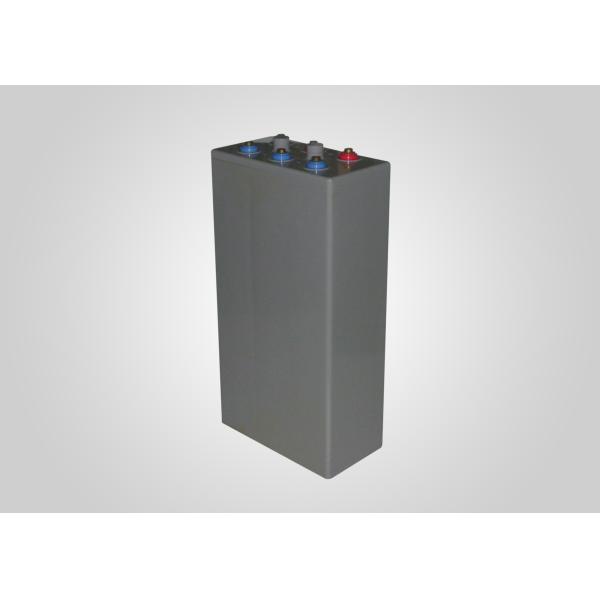

2V2000Ah OPzV Gel Battery with 20+ Years Design Life, Tubular Positive Plate, and ABS Case for Renewable Energy Systems
2V2000Ah OPzV Gel Battery with 20+ Years Design Life, Tubular Positive Plate, and ABS Case for Renewable Energy Systems
2V2000Ah OPzV Gel Battery with 20+ Years Design Life, Tubular Positive Plate, and ABS Case for Renewable Energy Systems
2V2000Ah OPzV Gel Battery with 20+ Years Design Life, Tubular Positive Plate, and ABS Case for Renewable Energy Systems
Specifications
Nominal Voltage :
2V
Battery Designed Life :
More than 20 Years
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Rated Capacity :
2000Ah
Type :
Tubular Gel Battery
Approx Weight :
144.6Kg
Application :
Telecom Outdoor Applications, Renewable Energy Systems and Other Harsh Environment Applications.
Battery Case :
ABS
Model Number :
OPzV2-2000
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Description
2V2000Ah High Power Cycles Battery, Tubular Plate Battery For Wind Energy System
Product Overview

2V2000Ah High Power Cycles Battery OPzV Gel Battery 2V Tubular Plate Battery for Wind Energy System

Product Features

The OPzV series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using diecasted positive grid and patented active material formula, it exceeds the DIN standard values and offers 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions.

Construction
  • Positive plate: Tubular plate with die cast Pb-Ca alloy grid
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Leaf shape polymer separator
  • Electrolyte: Dilute high purity sulphuric acid with fumed Silica gel
  • Battery container and cover: ABS
  • Pillar seal: 100% factory tested, proven two layers epoxy resin seal
  • Relief valve: Complete with integrated flame arrestor
Specifications
Parameter Value
Nominal Voltage (V) 2
Designed Floating Life (20°C) 20+ Years
Nominal Capacity (20°C) 2000 Ah @ C10 (to 1.80Vpc)
Dimensions L399mm × W212mm × H807mm
Approx. Weight 144.6 kg (319 lbs)
Terminal Type Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance Approx. 0.24mOhm (fully charged @ 25°C)
Max. Charge Current 400 A
Max. Discharge Current (5S) 3000 A
Short Circuit Current 8300 A
Self Discharge Approx. 2% per month @ 20°C
Ambient Temperature Discharge: -40~65°C
Charge: -30~65°C
Storage: -25~45°C
Float Charge Voltage 2.25 - 2.29V (-3mV/℃/cell)
Equalize Charge Voltage 2.35 - 2.40V (-3mV/℃/cell)
Container Material ABS (UL94-V0 optional)
Dimensions
2V2000Ah OPzV Gel Battery with 20+ Years Design Life, Tubular Positive Plate, and ABS Case for Renewable Energy Systems
Battery Discharge Table - Parameters for Solar & Wind Applications
2V2000Ah OPzV Gel Battery with 20+ Years Design Life, Tubular Positive Plate, and ABS Case for Renewable Energy Systems
Characteristics
2V2000Ah OPzV Gel Battery with 20+ Years Design Life, Tubular Positive Plate, and ABS Case for Renewable Energy Systems 2V2000Ah OPzV Gel Battery with 20+ Years Design Life, Tubular Positive Plate, and ABS Case for Renewable Energy Systems
Applications
Telecom outdoor applications, renewable energy systems, other harsh environment applications.
Advantages
  • 20+ years design life at floating condition
  • Wide operating temperature range from -40°C to 60°C
  • Tubular positive plate with prolonged cycle life
  • Nano Silica gel electrolyte
  • Lead Calcium die cast grid with improved corrosion resistance capability
  • Excellent deep discharge recovery capability
