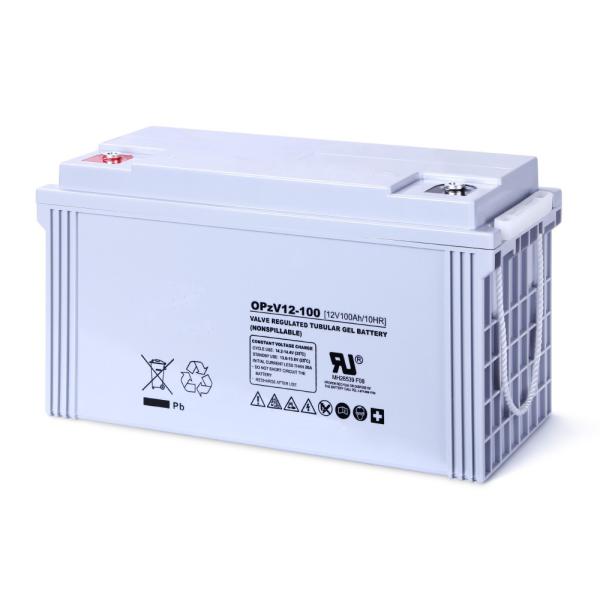

12V 100Ah OPzV Gel Battery with 20+ Years Design Life and Corrosion Resistance for Harsh Environments
12V 100Ah OPzV Gel Battery with 20+ Years Design Life and Corrosion Resistance for Harsh Environments
Specifications
Approx Weight :
37.3Kg
Nominal Voltage :
12V
Rated Capacity :
100Ah
Battery Designed Life :
More than 20 Years
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Model Number :
OPzV12-100
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Application :
Telecom Outdoor Applications, Renewable Energy Systems and Other Harsh Environment Applications.
Battery Case :
ABS
Type :
Tubular Gel Battery
Description
White Color 12V100Ah OPzV Gel Battery Corrosion Resistance 37.3kg Approx Weight
Product Overview

12V100Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery

The OPzV series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using die-casted positive grid and patented active material formula, it exceeds the DIN standard values and offers 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions.

Construction Features
  • Positive plate: Tubular plate with die cast Pb-Ca alloy grid
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Leaf shape polymer separator
  • Electrolyte: Dilute high purity sulphuric acid with fumed Silica gel
  • Battery container and cover: ABS
  • Pillar seal: 100% factory tested, proven two layers epoxy resin seal
  • Relief valve: Complete with integrated flame arrestor
Technical Specifications
Nominal Voltage (V) 12
Designed Floating Life (20°C) 20+ Years
Nominal Capacity (20°C) 100 Ah @ C10 (to 1.80Vpc)
Dimensions L166mm × W206mm × H506mm
Approx. Weight 36.3 kg (80.0 lbs)
Terminal Type Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance Approx. 0.56mOhm (fully charged @ 25°C)
Max. Charge Current 100 A
Max. Discharge Current (5S) 2000 A
Short Circuit Current 2600 A
Self Discharge Approx. 2% per month @ 20°C
Ambient Temperature Discharge: -40~65°C
Charge: -30~65°C
Storage: -25~45°C
Float Charge Voltage 2.23V @25°C (-3mV/°C/cell)
Equalize Charge Voltage 2.35V @25°C
Container Material ABS (UL94-V0 optional)
Applications

Telecom outdoor applications, renewable energy systems, other harsh environment applications.

Key Advantages
  1. 20+ years design life at floating condition
  2. Wide operating temperature range from -40°C to 60°C
  3. Tubular positive plate with prolonged cycle life
  4. Nano Silica gel electrolyte
  5. Lead Calcium die cast grid with improved corrosion resistance capability
  6. Excellent deep discharge recovery capability
