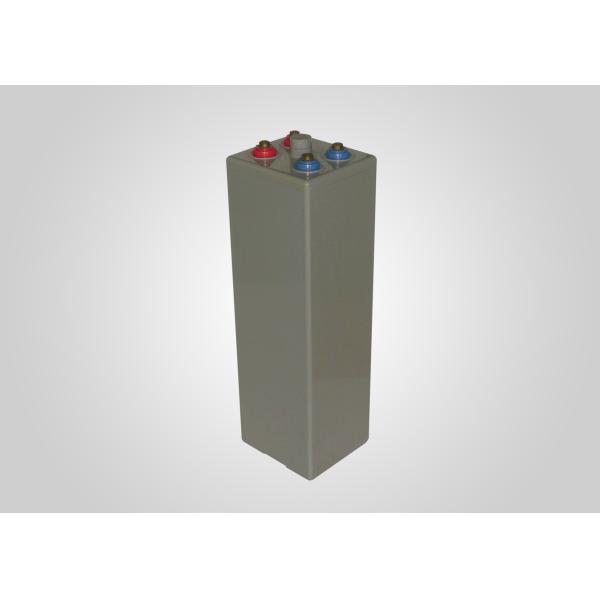

ABS Material Case 2V800Ah Gel Cell Deep Cycle Battery with 20+ Years Design Life OPzV Battery
ABS Material Case 2V800Ah Gel Cell Deep Cycle Battery with 20+ Years Design Life OPzV Battery
ABS Material Case 2V800Ah Gel Cell Deep Cycle Battery with 20+ Years Design Life OPzV Battery
ABS Material Case 2V800Ah Gel Cell Deep Cycle Battery with 20+ Years Design Life OPzV Battery
Specifications
Nominal Voltage :
2V
Battery Designed Life :
More than 20 Years
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Rated Capacity :
800Ah
Type :
Tubular Gel Battery
Approx Weight :
60 kg (132.3 lbs)
Application :
Telecom Outdoor Applications, Renewable Energy Systems and Other Harsh Environment Applications.
Battery Case :
ABS
Model Number :
OPzV2-800
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Description
ABS Material Case Gel Cell Deep Cycle Battery, 2V800Ah Pure Gel Battery Long Lifetime
Product Overview

2V800Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery

The OPzV series adopts Immobilized Gel and Tubular Positive Plate technology, offering high reliability and stable performance. With die-cast positive grid and patented active material formula, it exceeds DIN standard values and provides 20+ years design life in float service. Ideal for cyclic use under extreme operating conditions, this series is recommended for telecom outdoor applications, renewable energy systems, and other harsh environment applications.

Construction Features
  • Positive plate: Tubular plate with die-cast Pb-Ca alloy grid
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Leaf shape polymer separator
  • Electrolyte: Dilute high purity sulphuric acid with fumed Silica gel
  • Battery container and cover: ABS material
  • Pillar seal: 100% factory tested, proven two layers epoxy resin seal
  • Relief valve: Complete with integrated flame arrestor
Technical Specifications
Nominal Voltage (V) 2
Designed Floating Life (20°C) 20+ Years
Nominal Capacity (20°C) 800 Ah @ C10 (to 1.80Vpc)
Dimensions L191mm × W210mm × H681mm
Approx. Weight 60 kg (132.3 lbs)
Terminal Type Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance Approx. 0.46mOhm (fully charged @ 20°C)
Max. Charge Current 160 A
Max. Discharge Current (5S) 2000 A
Short Circuit Current 4300 A
Self Discharge Approx. 2% per month @ 20°C
Ambient Temperature Discharge: -40~65°C
Charge: -30~65°C
Storage: -25~45°C
Float Charge Voltage (20-25°C) 2.25 - 2.29V (-3mV/°C/cell)
Equalize Charge Voltage (20-25°C) 2.35 - 2.40V @25°C
Container Material ABS (UL94-V0 optional)
Dimensions
ABS Material Case 2V800Ah Gel Cell Deep Cycle Battery with 20+ Years Design Life OPzV Battery
Battery Discharge Table - Parameters for Solar & Wind Applications
ABS Material Case 2V800Ah Gel Cell Deep Cycle Battery with 20+ Years Design Life OPzV Battery
Performance Characteristics
ABS Material Case 2V800Ah Gel Cell Deep Cycle Battery with 20+ Years Design Life OPzV Battery ABS Material Case 2V800Ah Gel Cell Deep Cycle Battery with 20+ Years Design Life OPzV Battery
Applications

Telecom outdoor applications, renewable energy systems, other harsh environment applications.

Key Advantages
  • 20+ years design life at floating condition
  • Wide operating temperature range from -40°C to 60°C
  • Tubular positive plate with prolonged cycle life
  • Nano Silica gel electrolyte
  • Lead Calcium die-cast grid with improved corrosion resistance capability
  • Excellent deep discharge recovery capability
