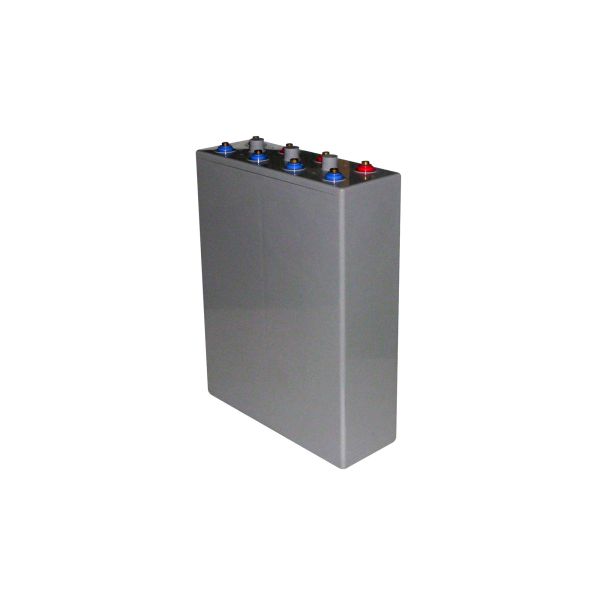

2500Ah OPzV Gel Battery with Wide Operating Temperature Range and 20+ Years Design Life
2500Ah OPzV Gel Battery with Wide Operating Temperature Range and 20+ Years Design Life
Specifications
Nominal Voltage :
2V
Battery Designed Life :
More than 20 Years
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Rated Capacity :
2500Ah
Type :
Tubular Gel Battery
Approx Weight :
185Kg
Application :
Telecom Outdoor Applications, Renewable Energy Systems and Other Harsh Environment Applications.
Model Number :
OPzV2-2500
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Battery Case :
ABS
Description
185kg Approx Weight OPzV Gel Battery 2V2500Ah Wide Operating Temperature Range
Product Overview

2V2500Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery

The OPzV series adopts Immobilized Gel and Tubular Positive Plate technology, offering high reliability and stable performance. Utilizing die-cast positive grid and patented active material formula, it exceeds DIN standard values and provides 20+ years design life in float service. Ideal for cyclic use under extreme operating conditions, this series is recommended for telecom outdoor applications, renewable energy systems, and other harsh environment applications.

Product Features
  • 20+ years design life at floating condition
  • Wide operating temperature range from -40°C to 60°C
  • Tubular positive plate with prolonged cycle life
  • Nano Silica gel electrolyte
  • Lead Calcium die-cast grid with improved corrosion resistance capability
  • Excellent deep discharge recovery capability
Construction Details
Positive Plate

Tubular plate with die-cast Pb-Ca alloy grid

Negative Plate

Balanced Pb-Ca grid for improved recombination efficiency

Separator

Leaf shape polymer separator

Electrolyte

Dilute high purity sulphuric acid with fumed Silica gel

Battery Container and Cover

ABS

Pillar Seal

100% factory tested, proven two layers epoxy resin seal

Relief Valve

Complete with integrated flame arrestor

Technical Specifications
Nominal Voltage (V) 2
Designed Floating Life (20°C) 20+ Years
Nominal Capacity (20°C) 2500 Ah @ C10 (to 1.80Vpc)
Dimensions L487mm × W212mm × H807mm
Approx. Weight 185 kg (408.0 lbs)
Terminal Type Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance Approx. 0.20mOhm (fully charged @ 25°C)
Max. Charge Current 500 A
Max. Discharge Current (5S) 4000 A
Short Circuit Current 10000 A
Self Discharge Approx. 2% per month @ 20°C
Ambient Temperature Discharge: -40~65°C
Charge: -30~65°C
Storage: -25~45°C
Float Charge Voltage 2.25 - 2.29V (-3mV/℃/cell)
Equalize Charge Voltage 2.35 - 2.40V (-5mV/℃/cell)
Container Material ABS (UL94-V0 optional)
Dimensions
2500Ah OPzV Gel Battery with Wide Operating Temperature Range and 20+ Years Design Life
Battery Discharge Parameters for Solar & Wind Applications
2500Ah OPzV Gel Battery with Wide Operating Temperature Range and 20+ Years Design Life
Performance Characteristics
2500Ah OPzV Gel Battery with Wide Operating Temperature Range and 20+ Years Design Life 2500Ah OPzV Gel Battery with Wide Operating Temperature Range and 20+ Years Design Life
Applications

Telecom outdoor applications, renewable energy systems, other harsh environment applications.

Download Product Specification Sheet
