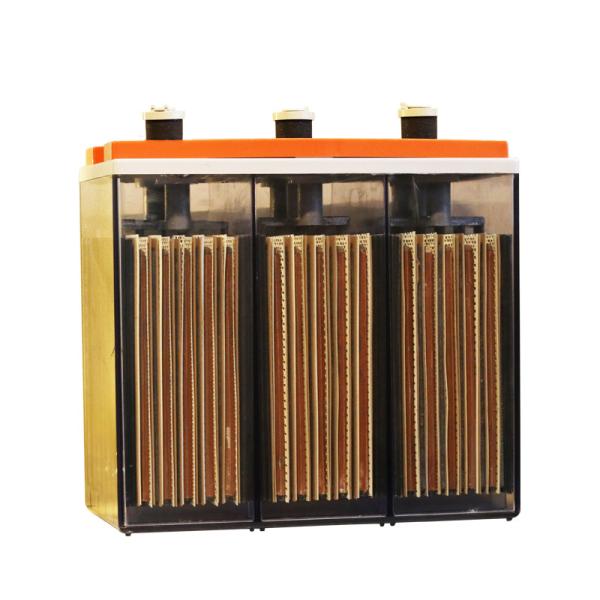

12V100Ah Solar Gel Battery OPzS Battery with 20+ Years Design Life, Double Layers Epoxy Resin Seal, and Tubular Plate
12V100Ah Solar Gel Battery OPzS Battery with 20+ Years Design Life, Double Layers Epoxy Resin Seal, and Tubular Plate
12V100Ah Solar Gel Battery OPzS Battery with 20+ Years Design Life, Double Layers Epoxy Resin Seal, and Tubular Plate
12V100Ah Solar Gel Battery OPzS Battery with 20+ Years Design Life, Double Layers Epoxy Resin Seal, and Tubular Plate
Specifications
Battery Designed Life :
More than 20 Years
Nominal Voltage :
12V
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Internal Resistance :
5.0mΩ fully charged @ 20℃
Dimension :
L405mm x W171mm x H232mm
Rated Capacity :
100Ah
Type :
OPzS Battery
Approx Weight :
35Kg
Model Number :
OPzS12-100
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Battery Container :
ABS/SAN
Application :
Off-grid Solar Storage Systems for Wind Power
Description
CE Gel Battery For Solar Panel, 12V100Ah Solar Gel Batteries Double Layers Epoxy Resin Seal
12V100Ah Solar Gel Battery OPzS Battery Long Life Solar Power 12V Series OPzS Battery
Product Features
The OPzS series is a traditional tubular plate flooded battery which offers 20+ years design life according to the standard IEC60896-11. With a new design and technical improvement, it offers maximum efficiency reliability for the widest variety of applications. This series is highly suited for all standby power applications that require the highest levels of reliability and security.
Construction
  • Positive plate: Tubular plate with die cast alloy grid
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Leaf shape rubber separator
  • Electrolyte: Dilute high purity sulphuric acid of 1.240 specific gravity
  • Battery Container: SAN
  • Battery Cover: ABS
  • Pillar Seal: Double layers epoxy resin seal
  • Relief Valve: Complete with integrated flame arrestor
Specifications
Nominal Voltage (V)12
Designed Floating Life (20°C)20+ Years
Nominal Capacity (20°C)100 Ah @ C10 (to 1.80Vpc)
DimensionsL405mm x W171mm x H232mm
Approx. Weight35Kg
Terminal TypeFemale Copper Insert M8 (torque: 10~12N.m)
Internal ResistanceApprox. 0.005Ohm (fully charged @ 25°C)
Max. Charge Current25 A
Max. Discharge Current (5S)500 A
Short Circuit Current1350 A
Self DischargeApprox. 3% per month @ 20°C
Ambient TemperatureDischarge: -20~60°C
Charge: -20~60°C
Storage: -20~45°C
Float Charge Voltage13.5-13.7V @25°C (-3mV/°C/cell)
Equalize Charge Voltage14.1-14.5V @25°C
Container MaterialSAN
Performance Characteristics
Constant Current Discharge Characteristics: Amps (20°C)
12V100Ah Solar Gel Battery OPzS Battery with 20+ Years Design Life, Double Layers Epoxy Resin Seal, and Tubular Plate
Constant Power Discharge Characteristics: W/cell (20°C)
12V100Ah Solar Gel Battery OPzS Battery with 20+ Years Design Life, Double Layers Epoxy Resin Seal, and Tubular Plate
Charge Characteristic
12V100Ah Solar Gel Battery OPzS Battery with 20+ Years Design Life, Double Layers Epoxy Resin Seal, and Tubular Plate
Discharge Characteristic
12V100Ah Solar Gel Battery OPzS Battery with 20+ Years Design Life, Double Layers Epoxy Resin Seal, and Tubular Plate
Application
Standby Power Applications that Required Highest Levels of Reliability and Security
Advantages
  • 20+ years design life at floating condition
  • Wide operating temperature range from -40°C to 60°C
  • Tubular positive plate with prolonged cycle life
  • Nano Silica gel electrolyte
  • Lead Calcium die cast grid with improved corrosion resistance capability
  • Excellent deep discharge recovery capability
  • Low self-discharge rate and long shelf life (1 year at 20°C)
