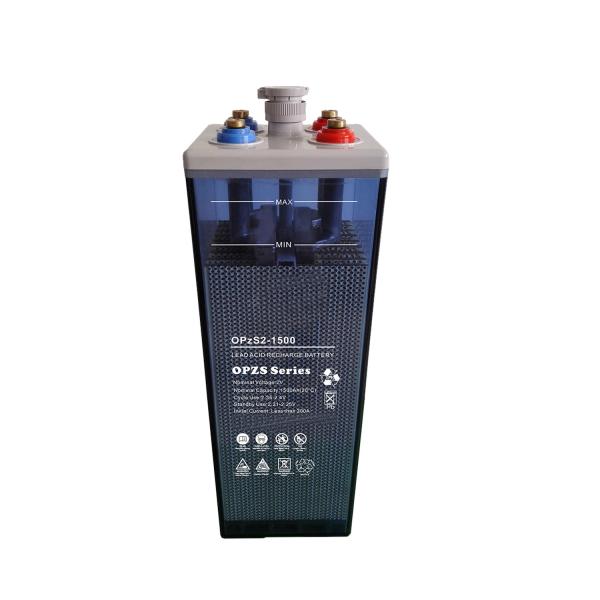

2V1500Ah OPzS Tubular Plate Battery with 20+ Years Design Life and Female Copper Insert M8 Terminal
2V1500Ah OPzS Tubular Plate Battery with 20+ Years Design Life and Female Copper Insert M8 Terminal
Specifications
Nominal Voltage :
2V
Rated Capacity :
1500Ah
Type :
Tubular Flooded Battery
Battery Designed Life :
More than 20 Years
Internal Resistance :
0.37mOhm(fully charged @ 20°C
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Approx Weight :
98Kg（With Electrolyte）
Application :
Solar System UPS Systems Telecommunications
Model Number :
OPzS2-1500
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Battery Case :
ABS
Description
Compact Tubular Plate Battery, 2V1500Ah Gel Deep Cycle Battery Highly Reliable
2V1500Ah Flooded Deep Cycle Gel Battery OPzS Battery Tubular Plate Flooded Battery
Product Features
The OPzS series is a traditional tubular plate flooded battery which offers 20+ years design life according to the standard IEC60896-11. With a new design and technical improvement, it offers maximum efficiency reliability for the widest variety of applications.
Construction
  • Positive plate: Tubular plate with die cast alloy grid
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Leaf shape rubber separator
  • Electrolyte: Dilute high purity sulphuric acid of 1.240 specific gravity
  • Battery Container: SAN
  • Battery Cover: ABS
  • Pillar Seal: Double layers epoxy resin seal
  • Relief Valve: Complete with integrated flame arrestor
Specifications
Parameter Value
Nominal Voltage (V) 2
Designed Floating Life (20°C) 20+ Years
Nominal Capacity (20°C) 1500 Ah @ C10 (to 1.80Vpc)
Dimensions L275mm × W210mm × H850mm
Approx. Weight Without electrolyte: 71Kg
With electrolyte: 98Kg
Terminal Type Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance Approx. 0.37mOhm (fully charged @ 25°C)
Max. Charge Current 300 A
Max. Discharge Current (5S) 2500 A
Short Circuit Current 5400 A
Self Discharge Approx. 4% per month @ 20°C
Ambient Temperature Discharge: -40~65°C
Charge: -30~65°C
Storage: -25~45°C
Float Charge Voltage 2.21-2.25V @25°C (-3mV/°C/cell)
Equalize Charge Voltage 2.35-2.4V @25°C
Container Material SAN
Performance Characteristics
2V1500Ah OPzS Tubular Plate Battery with 20+ Years Design Life and Female Copper Insert M8 Terminal
Constant Current Discharge Characteristics: Amps (20°C)
2V1500Ah OPzS Tubular Plate Battery with 20+ Years Design Life and Female Copper Insert M8 Terminal
Constant Power Discharge Characteristics: W/cell (20°C)
2V1500Ah OPzS Tubular Plate Battery with 20+ Years Design Life and Female Copper Insert M8 Terminal
Charge Characteristic
2V1500Ah OPzS Tubular Plate Battery with 20+ Years Design Life and Female Copper Insert M8 Terminal
Discharge Characteristic
2V1500Ah OPzS Tubular Plate Battery with 20+ Years Design Life and Female Copper Insert M8 Terminal
Cycle Life vs Depth of Discharge
2V1500Ah OPzS Tubular Plate Battery with 20+ Years Design Life and Female Copper Insert M8 Terminal
Capacity vs Temperature
2V1500Ah OPzS Tubular Plate Battery with 20+ Years Design Life and Female Copper Insert M8 Terminal
Cycle Discharge Voltage Curve
Application
Standby Power Applications that Required Highest Levels of Reliability and Security. Alarm Systems, Cable Television, Communications Equipment.
Advantages
  1. 20+ years design life at floating condition
  2. Wide operating temperature range from -40°C to 60°C
  3. Tubular positive plate with prolonged cycle life
  4. Nano Silica gel electrolyte
  5. Lead Calcium die cast grid with improved corrosion resistance capability
  6. Excellent deep discharge recovery capability
  7. Low self-discharge rate and long shelf life (1 year at 20°C)
