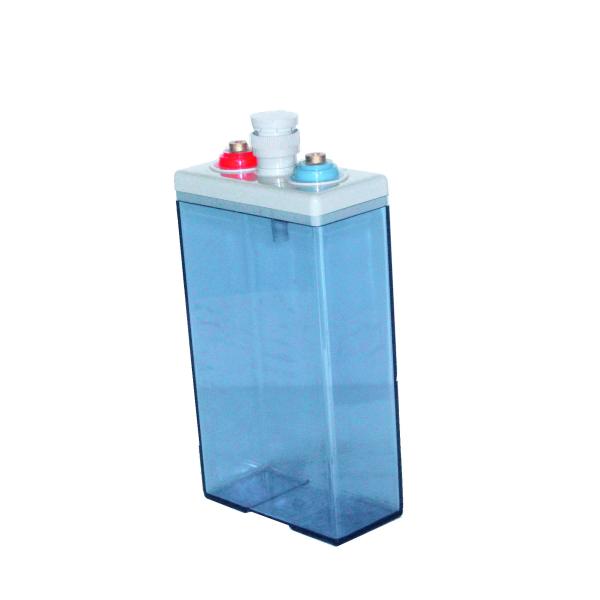

2V 150Ah OPzS Battery with 20+ Years Design Life, 0.85mOhm Internal Resistance for Backup Systems
2V 150Ah OPzS Battery with 20+ Years Design Life, 0.85mOhm Internal Resistance for Backup Systems
Specifications
Nominal Voltage :
2V
Battery Designed Life :
More than 20 Years
Application :
Backup System, Solar System
Internal Resistance :
0.85mOhm
Rated Capacity :
150Ah
Type :
Tubular Flooded Battery
Battery Case :
ASAN
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Approx Weight :
10.5Kg(with Electrolyte)
Model Number :
OPzS2-150
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Description
2V150Ah OPzS Battery Rechargeable Backup System 0.85mOhm Internal Resistance
2V150Ah OPzS Rechargeable backup system OPzS Battery Flooded Deep Cycle Gel Battery
Product Features
The OPzS series is a traditional tubular plate flooded battery which offers 20+ years design life according to the standard IEC60896-11. With a new design and technical improvement, it offers maximum efficiency reliability for the widest variety of applications.
Construction
  • Positive plate: Tubular plate with die cast alloy grid
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Leaf shape rubber separator
  • Electrolyte: Dilute high purity sulphuric acid of 1.240 specific gravity
  • Battery Container: SAN
  • Battery Cover: ABS
  • Pillar Seal: Double layers epoxy resin seal
  • Relief Valve: Complete with integrated flame arrestor
Specifications
Nominal Voltage (V) 2
Designed Floating Life (20°C) 20+ Years
Nominal Capacity (20°C) 150 Ah @ C10 (to 1.80Vpc)
Dimensions L103mm × W206mm × H409mm
Approx. Weight Without electrolyte: 10Kg
With electrolyte: 14.5Kg
Terminal Type Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance Approx. 0.44mOhm (fully charged @ 25°C)
Max. Charge Current 30 A
Max. Discharge Current (5S) 1000 A
Short Circuit Current 2400 A
Self Discharge Approx. 4% per month @ 20°C
Ambient Temperature Discharge: -25~65°C
Charge: -20~65°C
Storage: -15~40°C
Float Charge Voltage 2.21-2.25V @25°C (-3mV/°C/cell)
Equalize Charge Voltage 2.35-2.4V @25°C
Container Material SAN
Performance Characteristics
2V 150Ah OPzS Battery with 20+ Years Design Life, 0.85mOhm Internal Resistance for Backup Systems
2V 150Ah OPzS Battery with 20+ Years Design Life, 0.85mOhm Internal Resistance for Backup Systems
2V 150Ah OPzS Battery with 20+ Years Design Life, 0.85mOhm Internal Resistance for Backup Systems
2V 150Ah OPzS Battery with 20+ Years Design Life, 0.85mOhm Internal Resistance for Backup Systems
2V 150Ah OPzS Battery with 20+ Years Design Life, 0.85mOhm Internal Resistance for Backup Systems
2V 150Ah OPzS Battery with 20+ Years Design Life, 0.85mOhm Internal Resistance for Backup Systems
2V 150Ah OPzS Battery with 20+ Years Design Life, 0.85mOhm Internal Resistance for Backup Systems
Applications
Standby Power Applications that Required Highest Levels of Reliability and Security
  • Telecom
  • Electric Utilities
  • Control Equipment
  • Security Systems
  • Medical Equipment
  • UPS systems
  • Railroad Utilities
  • Photovoltaic Systems
  • Renewable Energy Systems
Advantages
  • 20+ years design life at floating condition
  • Wide operating temperature range from -40°C to 60°C
  • Tubular positive plate with prolonged cycle life
  • Nano Silica gel electrolyte
  • Lead Calcium die cast grid with improved corrosion resistance capability
  • Excellent deep discharge recovery capability
  • Low self-discharge rate and long shelf life (1 year at 20°C)
