2V200Ah OPzV Tubular Gel Battery with 20+ Years Design Life ABS Case and Tubular Positive Plate
2V200Ah OPzV Tubular Gel Battery with 20+ Years Design Life ABS Case and Tubular Positive Plate
Specifications
Nominal Voltage :
2V
Battery Designed Life :
More than 20 Years
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Rated Capacity :
200Ah
Type :
Tubular Gel Battery
Approx Weight :
17.0Kg
Application :
Telecom Outdoor Applications, Renewable Energy Systems and Other Harsh Environment Applications.
Battery Case :
ABS
Model Number :
OPzV2-200
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Description
2V200Ah OPzV Gel Battery ABS Material Battery Case Pure Gel Battery CE Approved
Product Overview

2V200Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery

The OPzV series adopts an Immobilized Gel and Tubular Positive Plate technology. It offers high reliability and stable performance. By using die-casted positive grid and patented active material formula, it exceeds the DIN standard values and offers 20+ years design life in float service. It is very suitable for cyclic use under extreme operating conditions.

Construction
  • Positive plate: Tubular plate with die cast Pb-Ca alloy grid
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Leaf shape polymer separator
  • Electrolyte: Dilute high purity sulphuric acid with fumed Silica gel
  • Battery container and cover: ABS
  • Pillar seal: 100% factory tested, proven two layers epoxy resin seal
  • Relief valve: Complete with integrated flame arrestor
Specifications
Nominal Voltage (V) 2
Designed Floating Life (20°C) 20+ Years
Nominal Capacity (20°C) 200 Ah @ C10 (to 1.80Vpc)
Dimensions L103mm × W206mm × H390mm
Approx. Weight 17.0 kg (37.5 lbs)
Terminal Type Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance Approx. 0.56mOhm (fully charged @ 25°C)
Max. Charge Current 40 A
Max. Discharge Current (5S) 1000 A
Short Circuit Current 1800 A
Self Discharge Approx. 2% per month @ 20°C
Ambient Temperature Discharge: -40~65°C
Charge: -30~65°C
Storage: -25~45°C
Float Charge Voltage 2.25 - 2.29V (-3mV/℃/cell)
Equalize Charge Voltage 2.35 - 2.40V (-3mV/℃/cell)
Container Material ABS (UL94-V0 optional)

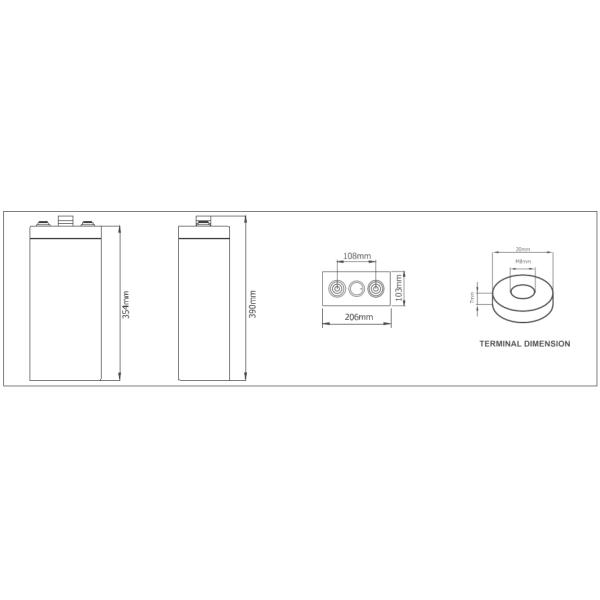

Dimensions
2V200Ah OPzV Tubular Gel Battery with 20+ Years Design Life ABS Case and Tubular Positive Plate

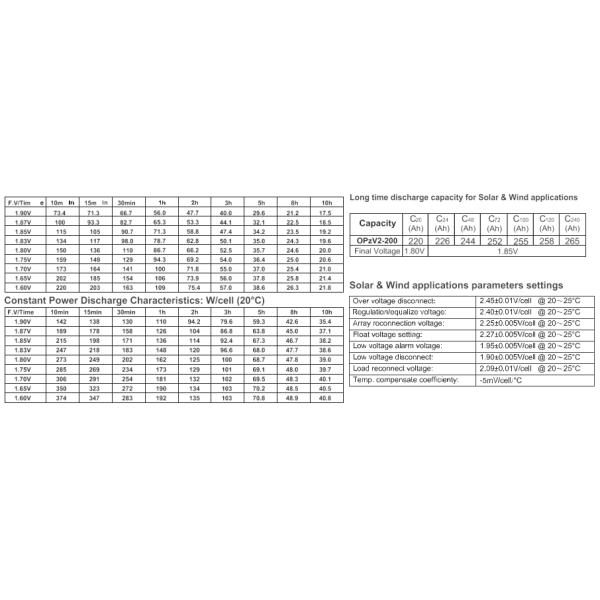

Battery Discharge Table - Parameters for Solar & Wind Applications
2V200Ah OPzV Tubular Gel Battery with 20+ Years Design Life ABS Case and Tubular Positive Plate

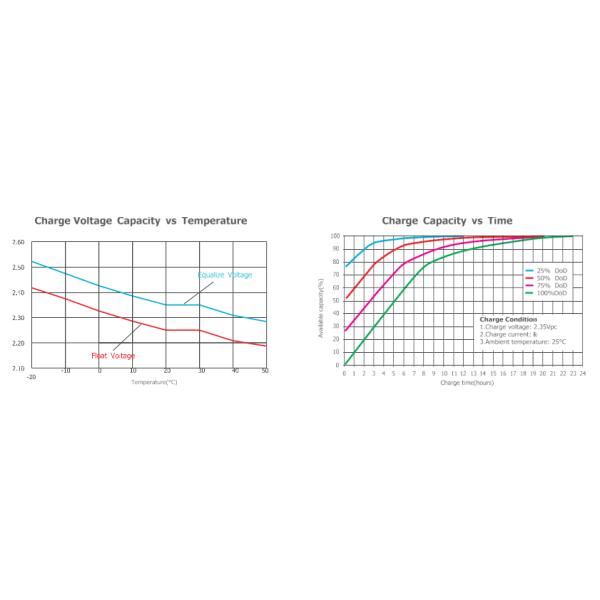

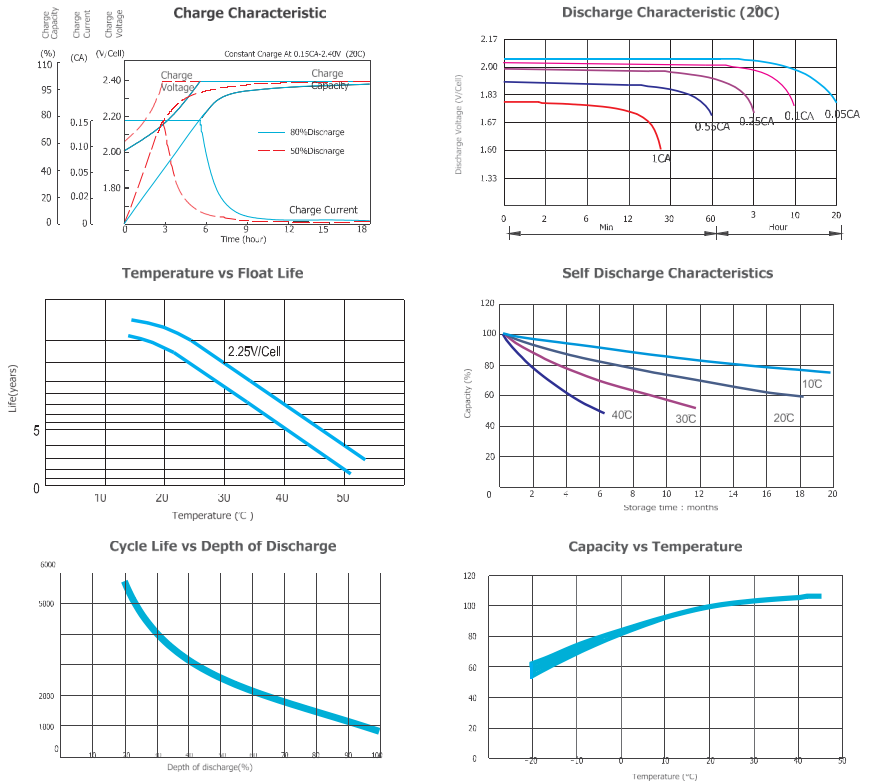

Characteristics
2V200Ah OPzV Tubular Gel Battery with 20+ Years Design Life ABS Case and Tubular Positive Plate 2V200Ah OPzV Tubular Gel Battery with 20+ Years Design Life ABS Case and Tubular Positive Plate
Application

Telecom outdoor applications, renewable energy systems, other harsh environment applications.

Advantages
  • 20+ years design life at floating condition
  • Wide operating temperature range from -40°C to 60°C
  • Tubular positive plate with prolonged cycle life
  • Nano Silica gel electrolyte
  • Lead Calcium die cast grid with improved corrosion resistance capability
  • Excellent deep discharge recovery capability
