1200Ah OPzV Tubular Gel Battery with 20+ Years Design Life and ABS Case for Harsh Environments
1200Ah OPzV Tubular Gel Battery with 20+ Years Design Life and ABS Case for Harsh Environments
1200Ah OPzV Tubular Gel Battery with 20+ Years Design Life and ABS Case for Harsh Environments
1200Ah OPzV Tubular Gel Battery with 20+ Years Design Life and ABS Case for Harsh Environments
Specifications
Nominal Voltage :
2V
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Rated Capacity :
1200Ah
Type :
Tubular Gel Battery
Battery Designed Life :
More than 20 Years
Approx Weight :
84Kg
Application :
Telecom Outdoor Applications, Renewable Energy Systems and Other Harsh Environment Applications.
Battery Case :
ABS
Model Number :
OPzV2-1200
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Description
Grey Appearance 2V1200Ah OPzV Pure Gel Battery 2.25 - 2.29V Float Charge Voltage
Product Overview

2V1200Ah Tubular Gel Battery OPzV Battery Deep Cycle Gel Battery Pure Gel Battery

Product Features

The OPzV series adopts Immobilized Gel and Tubular Positive Plate technology, offering high reliability and stable performance. Utilizing die-cast positive grid and patented active material formula, it exceeds DIN standard values and provides 20+ years design life in float service. Ideal for cyclic use under extreme operating conditions. Recommended for telecom outdoor applications, renewable energy systems, and other harsh environment applications.

Construction
  • Positive plate: Tubular plate with die-cast Pb-Ca alloy grid
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Leaf shape polymer separator
  • Electrolyte: Dilute high purity sulphuric acid with fumed Silica gel
  • Battery container and cover: ABS
  • Pillar seal: 100% factory tested, proven two layers epoxy resin seal
  • Relief valve: Complete with integrated flame arrestor
Specifications
Nominal Voltage (V) 2
Designed Floating Life (20°C) 20+ Years
Nominal Capacity (20°C) 1200 Ah @ C10 (to 1.80Vpc)
Dimensions L275mm × W210mm × H681mm
Approx. Weight 84 kg (185 lbs)
Terminal Type Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance Approx. 0.31mOhm (fully charged @ 25°C)
Max. Charge Current 240 A
Max. Discharge Current (5S) 2500 A
Short Circuit Current 6400 A
Self Discharge Approx. 2% per month @ 20°C
Ambient Temperature Discharge: -40~65°C
Charge: -30~65°C
Storage: -25~45°C
Float Charge Voltage 2.25-2.29V (-3mV/°C/cell)
Equalize Charge Voltage 2.35-2.40V (-5mV/°C/cell)
Container Material ABS (UL94-V0 optional)
Dimensions
1200Ah OPzV Tubular Gel Battery with 20+ Years Design Life and ABS Case for Harsh Environments

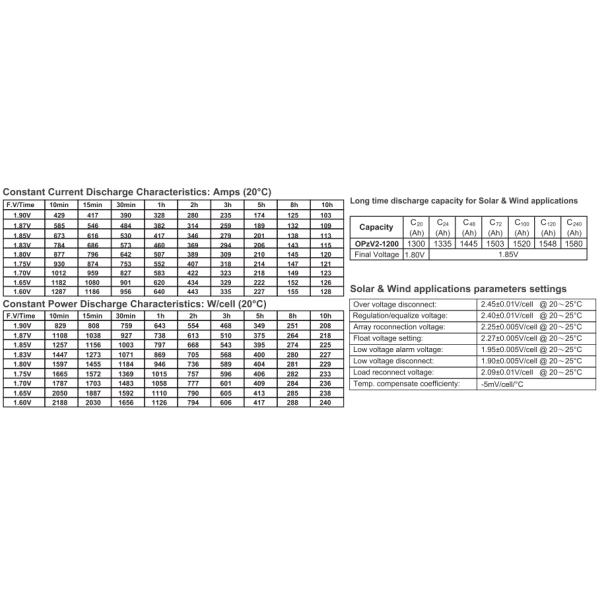

Battery Discharge Table - Parameters for Solar & Wind Applications
1200Ah OPzV Tubular Gel Battery with 20+ Years Design Life and ABS Case for Harsh Environments

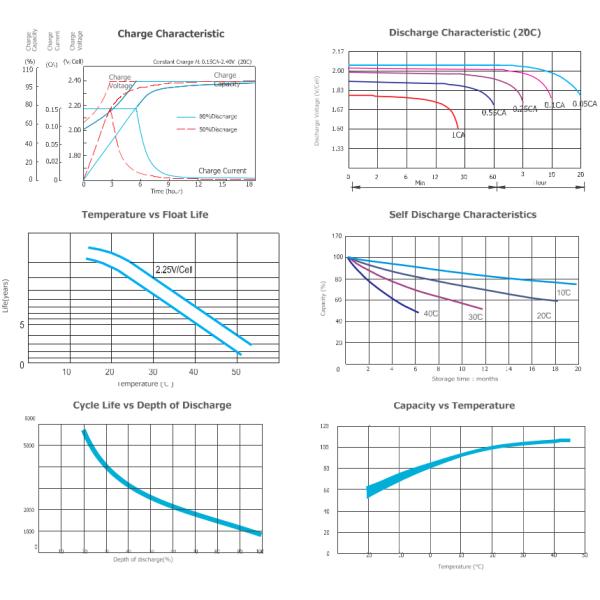

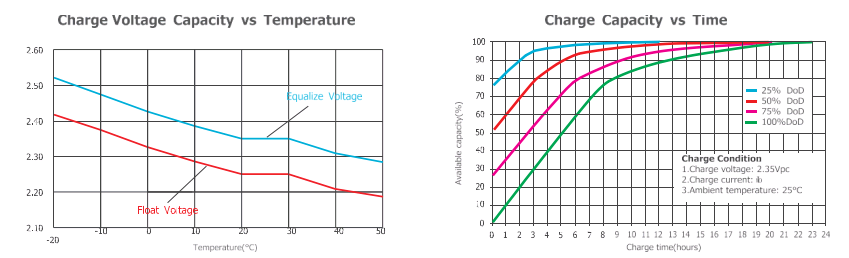

Characteristics
1200Ah OPzV Tubular Gel Battery with 20+ Years Design Life and ABS Case for Harsh Environments 1200Ah OPzV Tubular Gel Battery with 20+ Years Design Life and ABS Case for Harsh Environments
Applications

Telecom outdoor applications, renewable energy systems, other harsh environment applications.

Advantages
  • 20+ years design life at floating condition
  • Wide operating temperature range from -40°C to 60°C
  • Tubular positive plate with prolonged cycle life
  • Nano Silica gel electrolyte
  • Lead Calcium die-cast grid with improved corrosion resistance capability
  • Excellent deep discharge recovery capability
