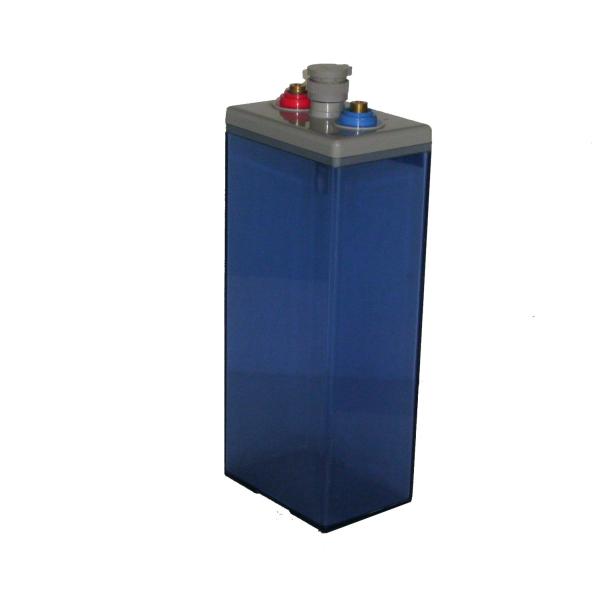

OPzS Tubular Flooded Lead Acid Battery with 20+ Years Design Life, 420Ah Capacity, and Female Copper Insert M8 Terminal
OPzS Tubular Flooded Lead Acid Battery with 20+ Years Design Life, 420Ah Capacity, and Female Copper Insert M8 Terminal
OPzS Tubular Flooded Lead Acid Battery with 20+ Years Design Life, 420Ah Capacity, and Female Copper Insert M8 Terminal
OPzS Tubular Flooded Lead Acid Battery with 20+ Years Design Life, 420Ah Capacity, and Female Copper Insert M8 Terminal
Specifications
Nominal Voltage :
2V
Approx Weight(With Electrolyte :
32Kg
Application :
Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System
Battery Case :
ABS/SAN
Rated Capacity :
420Ah
Type :
OPzS Tubular Battery
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Battery Designed Life :
More than 20 Years
Approx Weight(Without Electrolyte :
24Kg
Model Number :
OPzS2-420
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Description
Flooded AGM Lead Acid Battery OPzS Tubular Battery 2V420Ah For Electric Utilities
Flooded lead acid AGM battery OPzS Tubular battery 2V420Ah for solar system
Product Features
The OPzS series is a traditional tubular plate flooded battery which offers 20+ years design life according to the standard IEC60896-11. With a new design and technical improvement, it offers maximum efficiency reliability for the widest variety of applications.

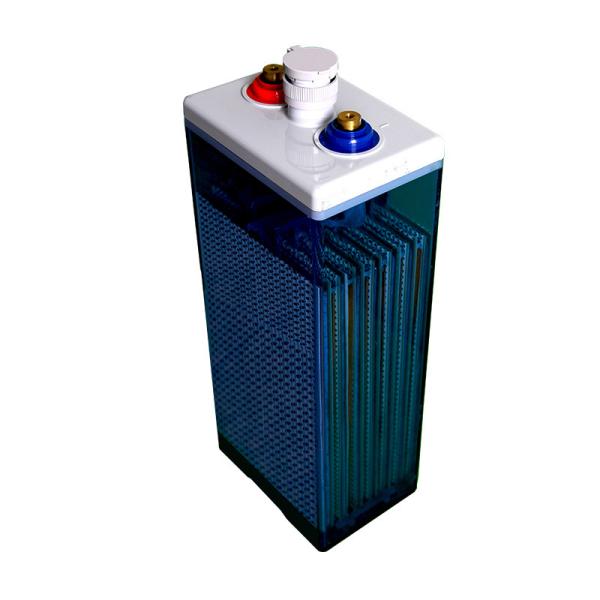

Construction
  • Positive plate: Tubular plate with die cast alloy grid
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Leaf shape rubber separator
  • Electrolyte: Dilute high purity sulphuric acid of 1.240 specific gravity
  • Battery Container: SAN
  • Battery Cover: ABS
  • Pillar Seal: Double layers epoxy resin seal
  • Relief Valve: Complete with integrated flame arrestor
Specifications
Nominal Voltage (V)2
Designed Floating Life (20°C)20+ Years
Nominal Capacity (20°C)420 Ah @ C10 (to 1.80Vpc)
DimensionsL145mm × W206mm × H525mm
Approx. WeightWithout electrolyte: 24kg
With electrolyte: 32kg
Terminal TypeFemale Copper Insert M8 (torque: 10~12N.m)
Internal ResistanceApprox. 0.57mOhm (fully charged @ 25°C)
Max. Charge Current84 A
Max. Discharge Current (5S)1000 A
Short Circuit Current3500 A
Self DischargeApprox. 4% per month @ 20°C
Ambient TemperatureDischarge: -25~65°C
Charge: -20~65°C
Storage: -15~40°C
Float Charge Voltage2.21-2.25V @25°C (-3mV/°C/cell)
Equalize Charge Voltage2.35-2.4V @25°C
Container MaterialSAN
Performance Characteristics
Constant Current Discharge Characteristics: Amps (20°C)
OPzS Tubular Flooded Lead Acid Battery with 20+ Years Design Life, 420Ah Capacity, and Female Copper Insert M8 Terminal
Constant Power Discharge Characteristics: W/cell (20°C)
OPzS Tubular Flooded Lead Acid Battery with 20+ Years Design Life, 420Ah Capacity, and Female Copper Insert M8 Terminal
Charge Characteristic
OPzS Tubular Flooded Lead Acid Battery with 20+ Years Design Life, 420Ah Capacity, and Female Copper Insert M8 Terminal
Discharge Characteristic
OPzS Tubular Flooded Lead Acid Battery with 20+ Years Design Life, 420Ah Capacity, and Female Copper Insert M8 Terminal
Cycle Life vs Depth of Discharge
OPzS Tubular Flooded Lead Acid Battery with 20+ Years Design Life, 420Ah Capacity, and Female Copper Insert M8 Terminal
Capacity vs Temperature
OPzS Tubular Flooded Lead Acid Battery with 20+ Years Design Life, 420Ah Capacity, and Female Copper Insert M8 Terminal
Cycle Discharge Voltage Curve
OPzS Tubular Flooded Lead Acid Battery with 20+ Years Design Life, 420Ah Capacity, and Female Copper Insert M8 Terminal
Applications
Standby Power Applications that Required Highest Levels of Reliability and Security
  • Telecom
  • Electric Utilities
  • Control Equipment
  • Security Systems
  • Medical Equipment
  • UPS systems
  • Railroad Utilities
  • Photovoltaic Systems
  • Renewable Energy System
Advantages
  • 20+ years design life at floating condition
  • Wide operating temperature range from -40°C to 60°C
  • Tubular positive plate with prolonged cycle life
  • Nano Silica gel electrolyte
  • Lead Calcium die cast grid with improved corrosion resistance capability
  • Excellent deep discharge recovery capability
  • Low self-discharge rate and long shelf life (1 year at 20°C)
