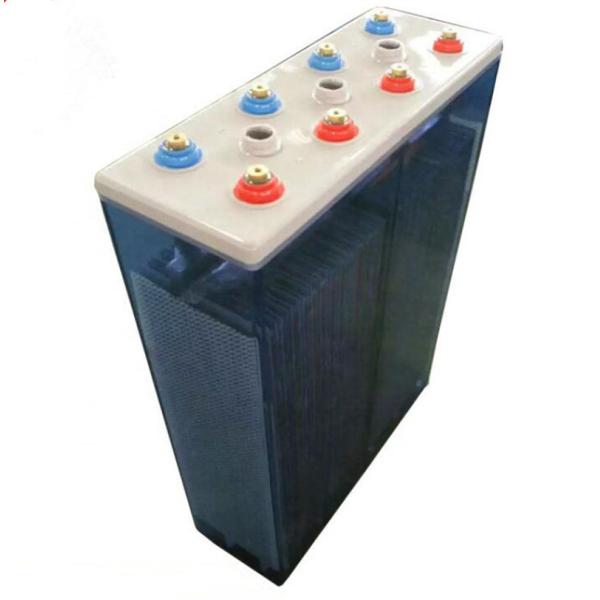

OPzS2-2500 2V Flooded Deep Cycle Tubular Plate Battery with 2500Ah Capacity, 20+ Years Design Life, and Female Copper Insert M8 Terminals
OPzS2-2500 2V Flooded Deep Cycle Tubular Plate Battery with 2500Ah Capacity, 20+ Years Design Life, and Female Copper Insert M8 Terminals
Specifications
Nominal Voltage :
2V
Type :
Tubular Flooded OPzS Battery
Approx Weight :
183Kg(with Electrolyte
Application :
Telecom, Solar, UPS System
Terminal Type :
Female Copper Insert M8 (torque:10~12N.m)
Rated Capacity :
2500Ah
Battery Designed Life :
More than 20 Years
Battery Case :
SAN
Battery Size :
L487*W212*H826mm
Model Number :
OPzS2-2500
Certification :
CE UL ISO9001 ISO14001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30 Days
Packaging Details :
Carton and Wooden Pallet
Description
OPzS2-2500 2V Flooded Deep Cycle Gel Battery
Product Overview

OPzS2-2500 Free Type Tubular Plate Flooded Lead Acid OPzS battery 2V Flooded Deep Cycle Gel Battery. The OPzS series is a traditional tubular plate flooded battery which offers 20+ years design life according to the standard IEC60896-11. With a new design and technical improvement, it offers maximum efficiency reliability for the widest variety of applications.

Construction Details
  • Positive plate: Tubular plate with die cast alloy grid
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Leaf shape rubber separator
  • Electrolyte: Dilute high purity sulphuric acid of 1.240 specific gravity
  • Battery Container: SAN
  • Battery Cover: ABS
  • Pillar Seal: Double layers epoxy resin seal
  • Relief Valve: Complete with integrated flame arrestor
Technical Specifications
Nominal Voltage (V) 2
Designed Floating Life (20°C) 20+ Years
Nominal Capacity (20°C) 2500 Ah @ C10 (to 1.80Vpc)
Dimensions L487 × W212 × H826mm
Approx. Weight Without electrolyte: 131Kg
With electrolyte: 183Kg
Terminal Type Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance Approx. 0.30mOhm (fully charged @ 25°C)
Max. Charge Current 500 A
Max. Discharge Current (5S) 4000 A
Short Circuit Current 6700 A
Self Discharge Approx. 4% per month @ 20°C
Ambient Temperature Discharge: -25~65°C
Charge: -20~65°C
Storage: -15~40°C
Float Charge Voltage 2.21-2.25V @25°C (-3mV/°C/cell)
Equalize Charge Voltage 2.35-2.4V @25°C
Container Material SAN
Performance Characteristics
OPzS2-2500 2V Flooded Deep Cycle Tubular Plate Battery with 2500Ah Capacity, 20+ Years Design Life, and Female Copper Insert M8 Terminals
OPzS2-2500 2V Flooded Deep Cycle Tubular Plate Battery with 2500Ah Capacity, 20+ Years Design Life, and Female Copper Insert M8 Terminals
OPzS2-2500 2V Flooded Deep Cycle Tubular Plate Battery with 2500Ah Capacity, 20+ Years Design Life, and Female Copper Insert M8 Terminals
OPzS2-2500 2V Flooded Deep Cycle Tubular Plate Battery with 2500Ah Capacity, 20+ Years Design Life, and Female Copper Insert M8 Terminals
OPzS2-2500 2V Flooded Deep Cycle Tubular Plate Battery with 2500Ah Capacity, 20+ Years Design Life, and Female Copper Insert M8 Terminals
OPzS2-2500 2V Flooded Deep Cycle Tubular Plate Battery with 2500Ah Capacity, 20+ Years Design Life, and Female Copper Insert M8 Terminals
OPzS2-2500 2V Flooded Deep Cycle Tubular Plate Battery with 2500Ah Capacity, 20+ Years Design Life, and Female Copper Insert M8 Terminals
Applications

Standby Power Applications that Required Highest Levels of Reliability and Security:

  • Telecom
  • Electric Utilities
  • Control Equipment
  • Security Systems
  • Medical Equipment
  • UPS systems
  • Railroad Utilities
  • Photovoltaic Systems
  • Renewable Energy Systems
Key Advantages
  • 20+ years design life at floating condition
  • Wide operating temperature range from -40°C to 60°C
  • Tubular positive plate with prolonged cycle life
  • Nano Silica gel electrolyte
  • Lead Calcium die cast grid with improved corrosion resistance capability
  • Excellent deep discharge recovery capability
  • Low self-discharge rate and long shelf life (1 year at 20°C)
