Measurement Intelligent Weighing Technology Scales Commercial Heavy Duty Weighing Scale
Measurement Intelligent Weighing Technology Scales Commercial Heavy Duty Weighing Scale
Measurement Intelligent Weighing Technology Scales Commercial Heavy Duty Weighing Scale
Measurement Intelligent Weighing Technology Scales Commercial Heavy Duty Weighing Scale
Measurement Intelligent Weighing Technology Scales Commercial Heavy Duty Weighing Scale
Measurement Intelligent Weighing Technology Scales Commercial Heavy Duty Weighing Scale
Specifications
Protection Level :
IP68
Product :
Ordinary weighing instrument
Precision :
Display division: 200000
Model Number :
LM232
Delivery Time :
20 days
Packaging Details :
carton packaging
Filtering :
Multi level digital filtering
Supply Ability :
1,000 units per month
Payment Terms :
Payment before delivery
Place of Origin :
China
Brand Name :
Linmindu
Operating Temperature :
-20℃~60℃
Battery Level :
Full load usage for 20 hours
Description

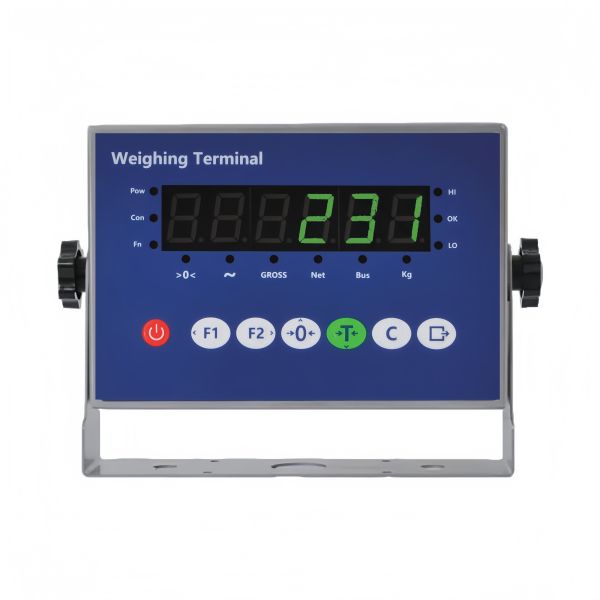

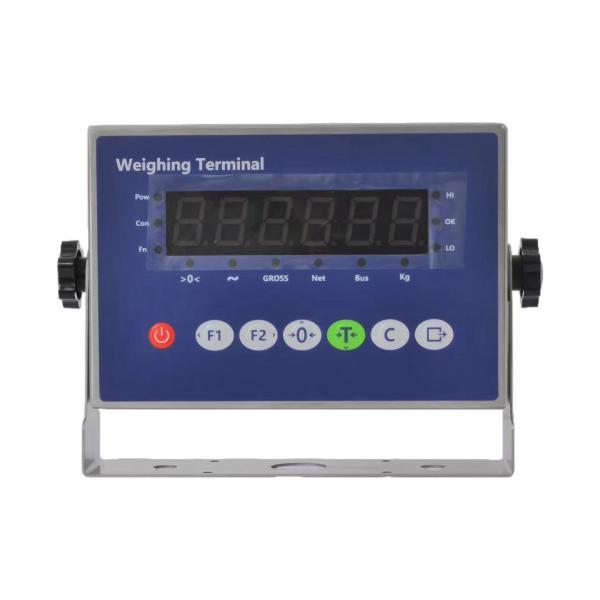

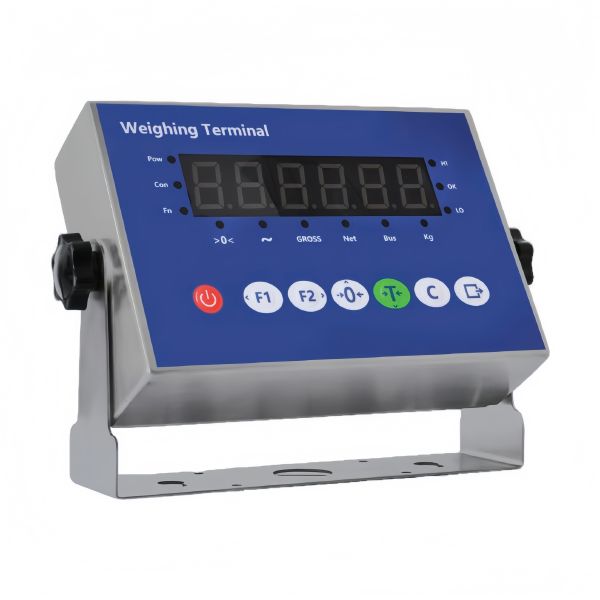

LM232 Simple Weighing Indicator Delivers Stable Performance And User-friendly Operation, Ideal For Weight Display And Measurement In Diverse Industrial And Commercial Weighing Systems.

The LM232 series products are a weighing instrument specially designed and developed for harsh environments such as industrial settings, food industry, and aquatic industry. The instrument can be connected via Ethernet, WI-FI, RS232, RS485, Bluetooth and other interfaces, enabling communication with other commonly used industrial devices (such as label printers). It supports printing template import and allows label printing based on different imported templates.

Product Features

  • 6-digit 1-inch digital display
  • Two point calibration of weights
  • Supports 1 analog weighing platform access, up to 8 sensors
  • Support importing printer label templates and one click printing of labels
  • Standard configuration includes one RS232 and one RS485
  • Serial port with isolation protection and lightning protection
  • Entering the display mode, the instrument panel can be displayed as a regular display screen

Specifications

Project

Parameters

Precision

Display Division: 200000

Overall Dimensions

220*186.5*65.8mm

Material

304 Stainless Steel

Filtering

Multi Level Digital Filtering

Button

7 Function Keys

The Function Of The Scale

Ordinary weighing, Animal weighing, Counting weighing, Cumulative weighing, and Weight inspection

Agreement

Toledo continuous output, MODBUS RTU customizable

Protection Level

IP68,IP65

Operating Temperature

-20℃~60℃

AD Conversion

∑/Δ 24 bit AD conversion to small input value: 0.1uV/d

Weighing Status Display

Tare weight, Net weight, Dynamic detection, Zero point, Unit

Sensor

Excitation voltage: 5VDC, maximum support for 10 * 350 Ω sensor

Install

Pole bracket, Wall bracket

Battery Level

Full load usage for 20 hours
